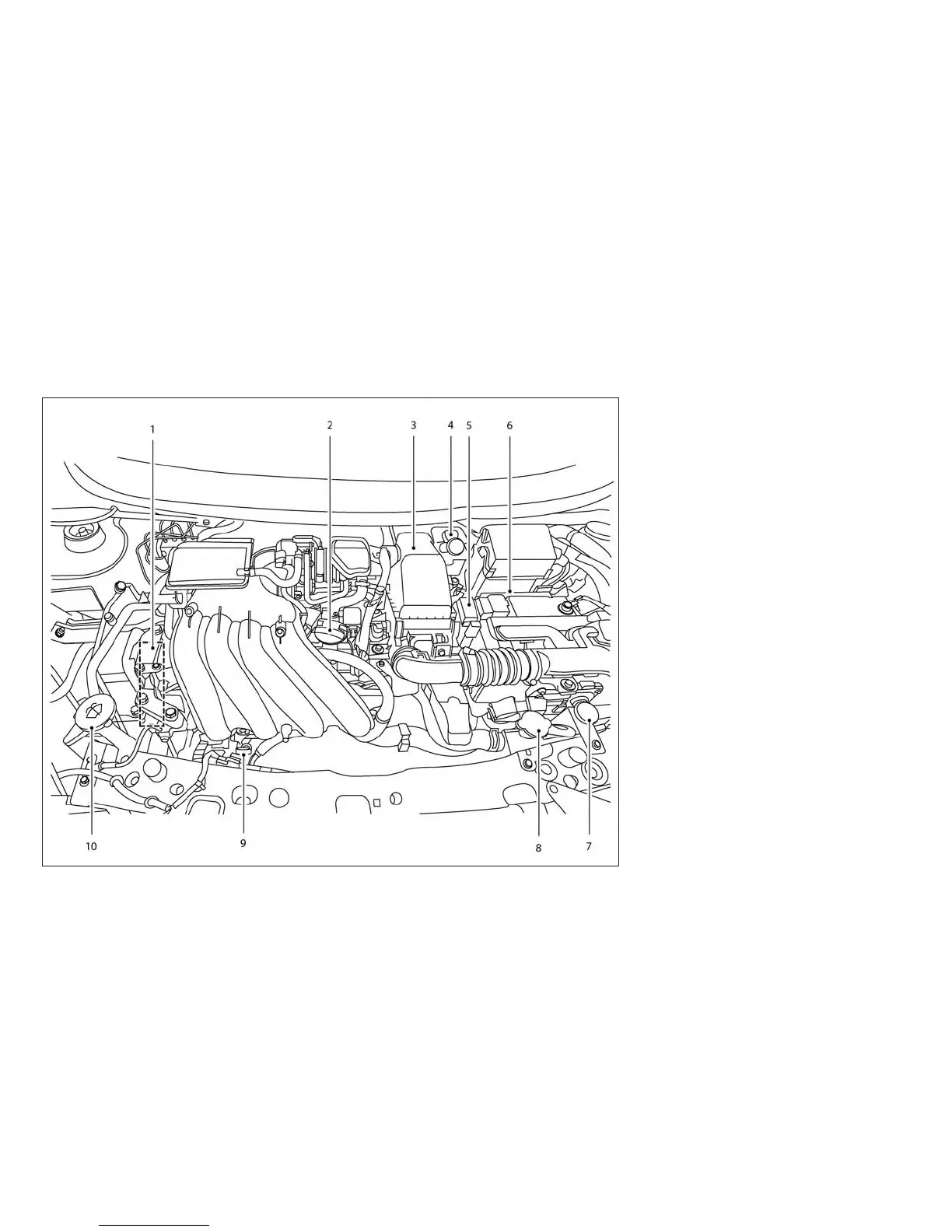

HR16DE engine
1. Drive belt location (P.8-17)
2. Engine oil filler cap (P. 8-9)
3. Air cleaner (P. 8-18)
4. Brake and clutch (*1) fluid reservoir
(P. 8-13)
5. Fusible link (P. 8-21)
6. Battery (P. 8-14)
7. Engine coolant reservoir (P. 8-8)
8. Radiator cap (P. 8-8)
9. Engine oil dipstick (P. 8-9)
10. Windshield-washer fluid reservoir
(P. 8-13)
*1 For Manual Transmission (M/T) model
Refer to the page number indicated in pa-
rentheses for operating details.
LDI2377
ENGINE COMPARTMENT CHECK
LOCATIONS
