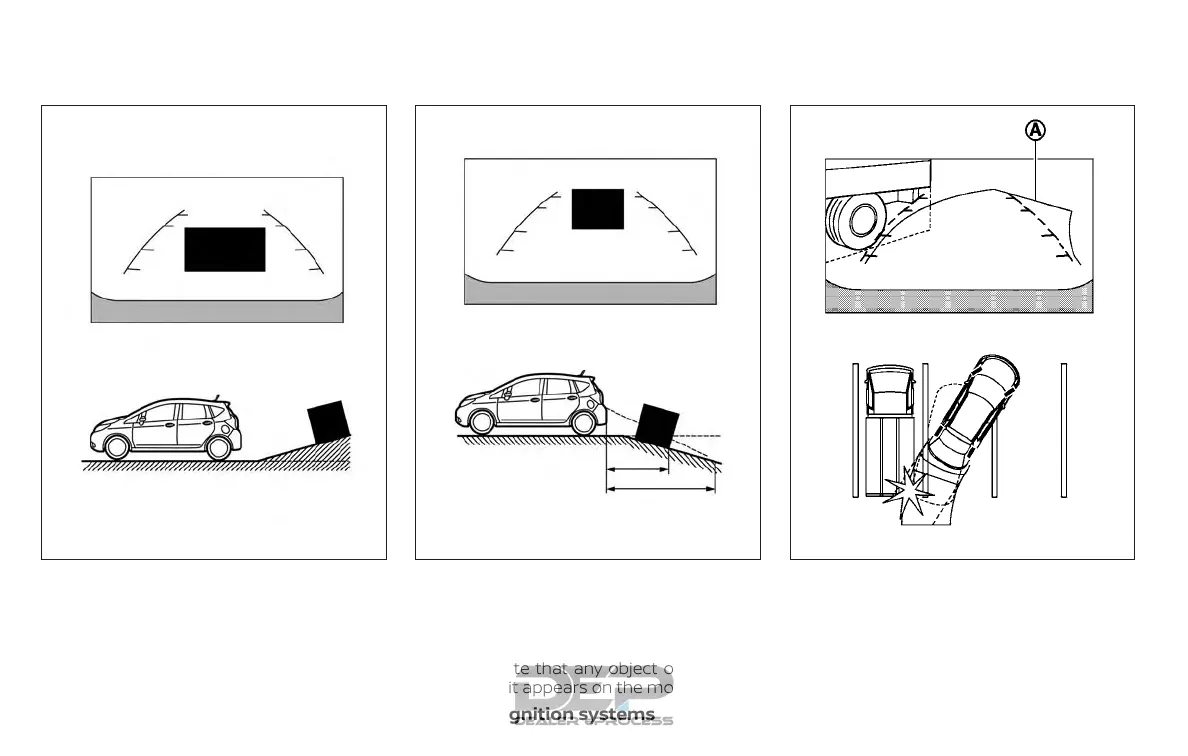

Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.
Backing up near a projecting
object
The predicted course lines
䊊
A
do not touch
the object in the display. However, the ve-
hicle may hit the object if it projects over
the actual backing up course.
LHA4313 LHA4314 LHA1201
4-22 Monitor, climate, audio, phone and voice recognition systems
