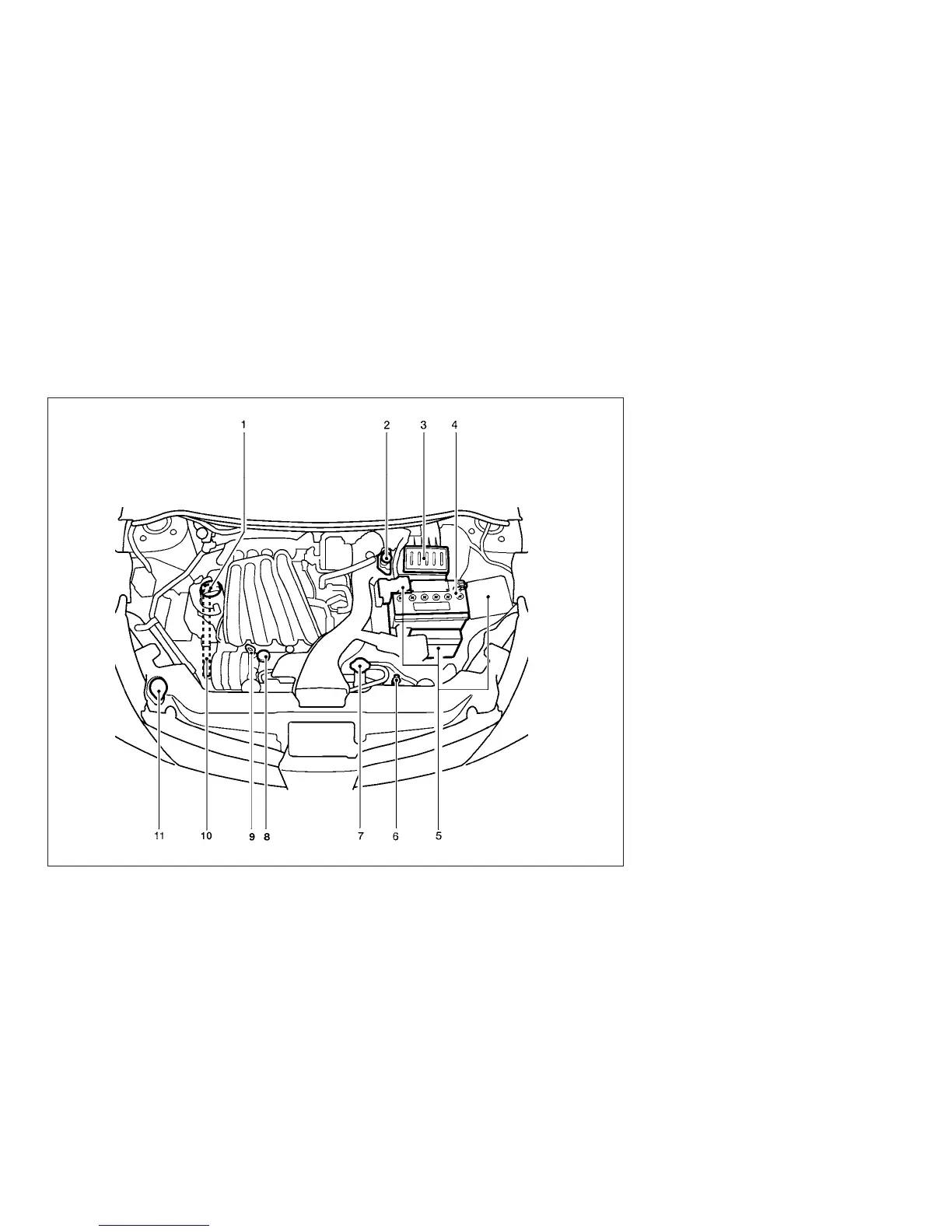

HR16DE
1. Engine oil filler cap (P. 8-10)
2. Brake and clutch (*1) fluid
reservoir (P. 8-15)
3. Air cleaner (P. 8-21)
4. Battery (P. 8-17)
5. Fuse/fusible link box (P. 8-24)
6. Automatic transmission fluid (ATF)
dipstick (*2) (P. 8-14)
7. Radiator cap (P. 8-8)
8. Engine coolant reservoir (P. 8-8)
9. Engine oil dipstick (P. 8-10)
10. Drive belt location (P. 8-19)
11. Windshield-washer fluid
reservoir (P. 8-16)
*1 For Manual Transmission (M/T) model
*2 For Automatic Transmission (A/T)
model
See the page number indicated in paren-
theses for operating details.
WDI0715
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents 0-9
