8
M1,M2 and M3: banks of speed dial memories
‘Ring’ button which shown on the keypad as ‘Bell’ icon purposed for the dialing and call cancellation
operations

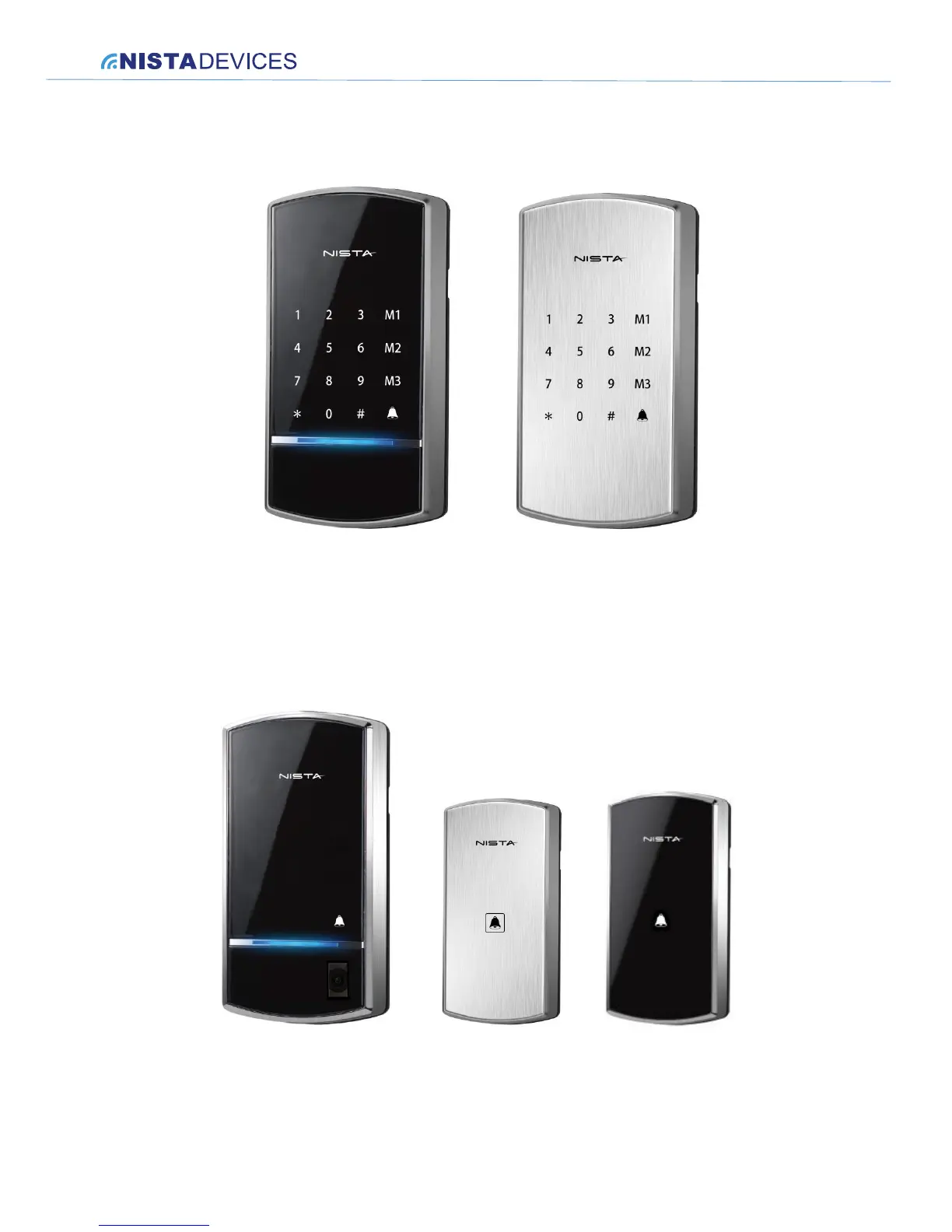

Figure 4-2 Analog Door phone Keypad edition
The Analog Door phone Single Button edition equipped with the Single button keypad with button marked with the
‘Bell’ icon. This button is purposed for the call initialization and cancellation.
The Analog Door phone Single Button edition available in regular and mini housing. The unit’s physical dimensions
see in Chapter 9.
Figure 4-3 Analog Door Phone Single button edition with regular and mini housing
