3 4
Turn on the switch to operate
the heater.
Note: For heaters intended to be permanently connected to fixed wiring, means for
all-pole full disconnection must be incorporated in the fixed wiring in accordance with
the National wiring rules.
Warning: Electrical installation must only be completed by an authorised electrician. If
the power lead is damaged, it must be replaced by the manufacturer’s service agent or
similarly qualified persons to avoid a hazard.

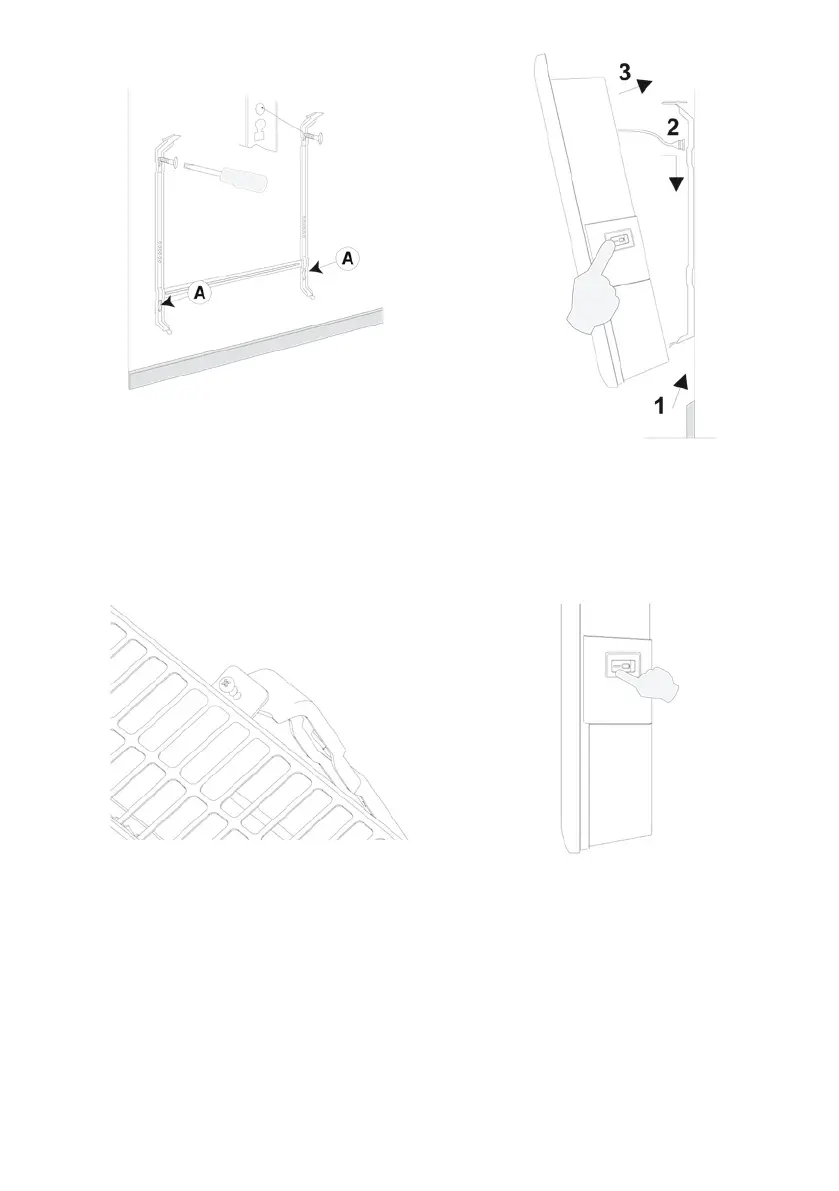

To secure the heater safely to the wall,
fasten the screw on each of the two
catches at the top of the wall bracket.
Place the heater on the wall bracket
(1), secure the tilt strap (2) and click the
heater onto the top catches (3).
Place the wall bracket onto the bottom
screws (A-A). Then fasten the wall bracket
with the top screws.
