PANEL LOCATIONS

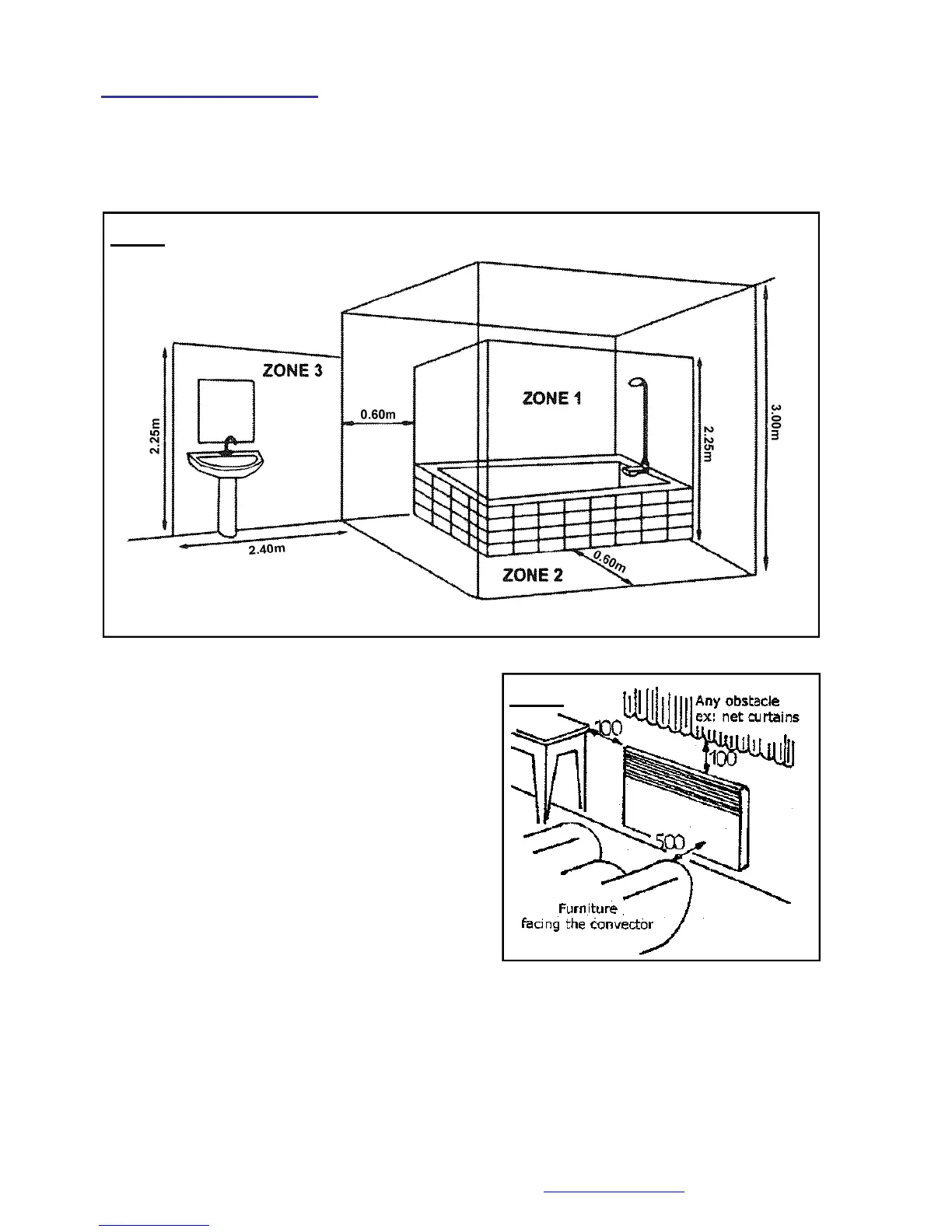

This heater is suitable for use in all rooms including Zone 2 in Bathrooms (Fig.4)
in accordance with AS/NZS 3000: 2000 (Wiring Rules). Although this heater is
double insulated and does not require earthing, it must be located so that the
controls cannot be touched by a person in the bath or shower.
For maximum efficiency, this heater
should be wall mounted at a minimum
height of 150mm off the floor. This is to
allow the necessary volume of air to flow
freely through the vents. It is also
important to allow a minimum of 100mm
clearance at the top and sides of the
heater and 500mm from the front (Fig. 5)
so as not to force the air back into the
heater and activate the Over
Temperature Safety Thermal Cut-Out
Switch.
Fig. 4
Fig. 5
