1508(RM-388)
Baseband Description and Troubleshooting
Nokia Customer
Care
Issue 1
Copyright © 2008 Nokia, All rights reserved

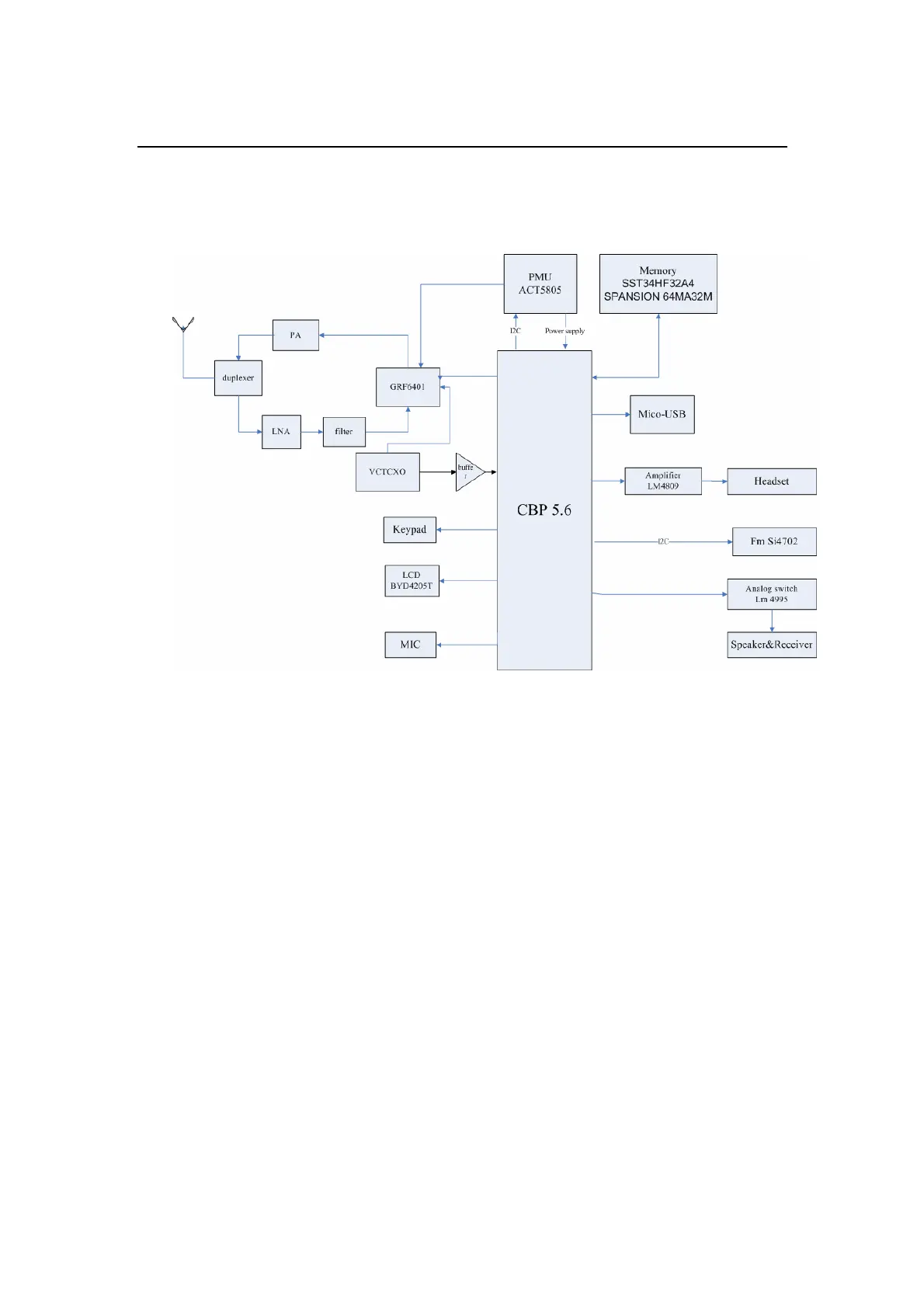

System Block Diagram
System Description
1508 is a CDMA (Cellular band) Mobile Phone. The phone supports:
- forward and reverse link data rates of up to 153.6kbps.
- 4GV vocoder
- 1.47”(128*128) CSTN LCD
- Stereo FM radio
Platform Introduction
CBP 5.6
VIA Telecom’s CBP 5.6 single-chip CDMA Base Band Processors
provide a complete 3G CDMA2000® 1X (Release 0) solution. They
are designed to meet or exceed the specifications of mobile stations
for worldwide 3G CDMA systems as specified by CDMA2000® 1X
(Release 0) standards and are backward-compatible to IS -95.
CBP 5.6 integrates three processor subsystems
