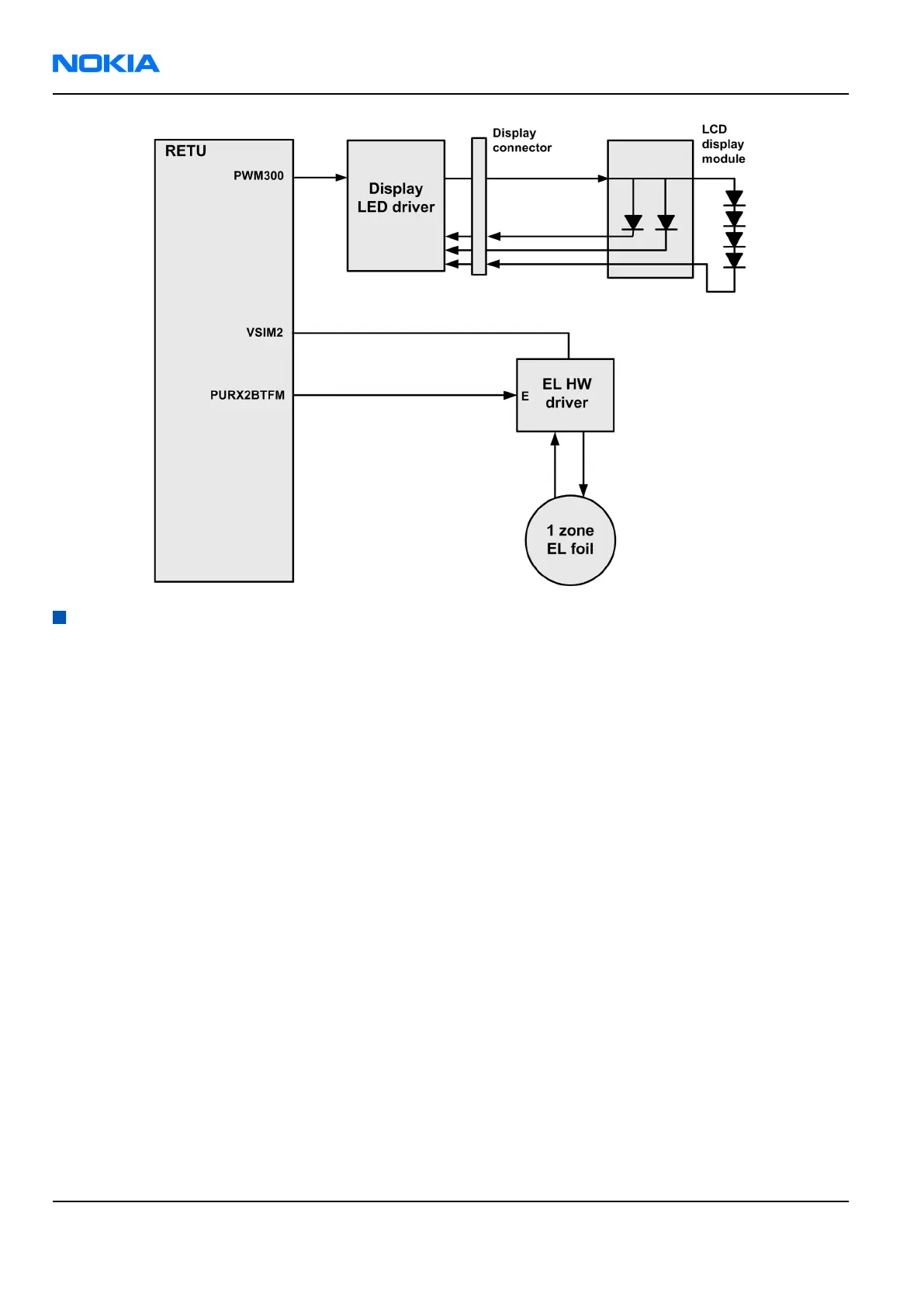

Audio concept
Audio hardware architecture
The functional core of the audio hardware is built around two ASICs: RAPGSM engine ASIC and the mixed-
signal ASIC Retu.
Retu provides an interface for the transducers and the accessory connector. Integrated hands free stereo
speakers are driven by a D-class audio amplifier.
There are four audio transducers:
• Dynamic earpiece
• Two dynamic speakers
• Microphone module
In addition to the audio transducers, Retu also provides an output for the dynamic vibra component.
RM-123; RM-145
Nokia Customer Care System Module
Page 8 –14 COMPANY CONFIDENTIAL Issue 1
Copyright © 2006 Nokia. All rights reserved.
