Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
15 Confidential • Copyright © 2009 NOKIA • All rights reserved Version 1.0 ISSUE 1

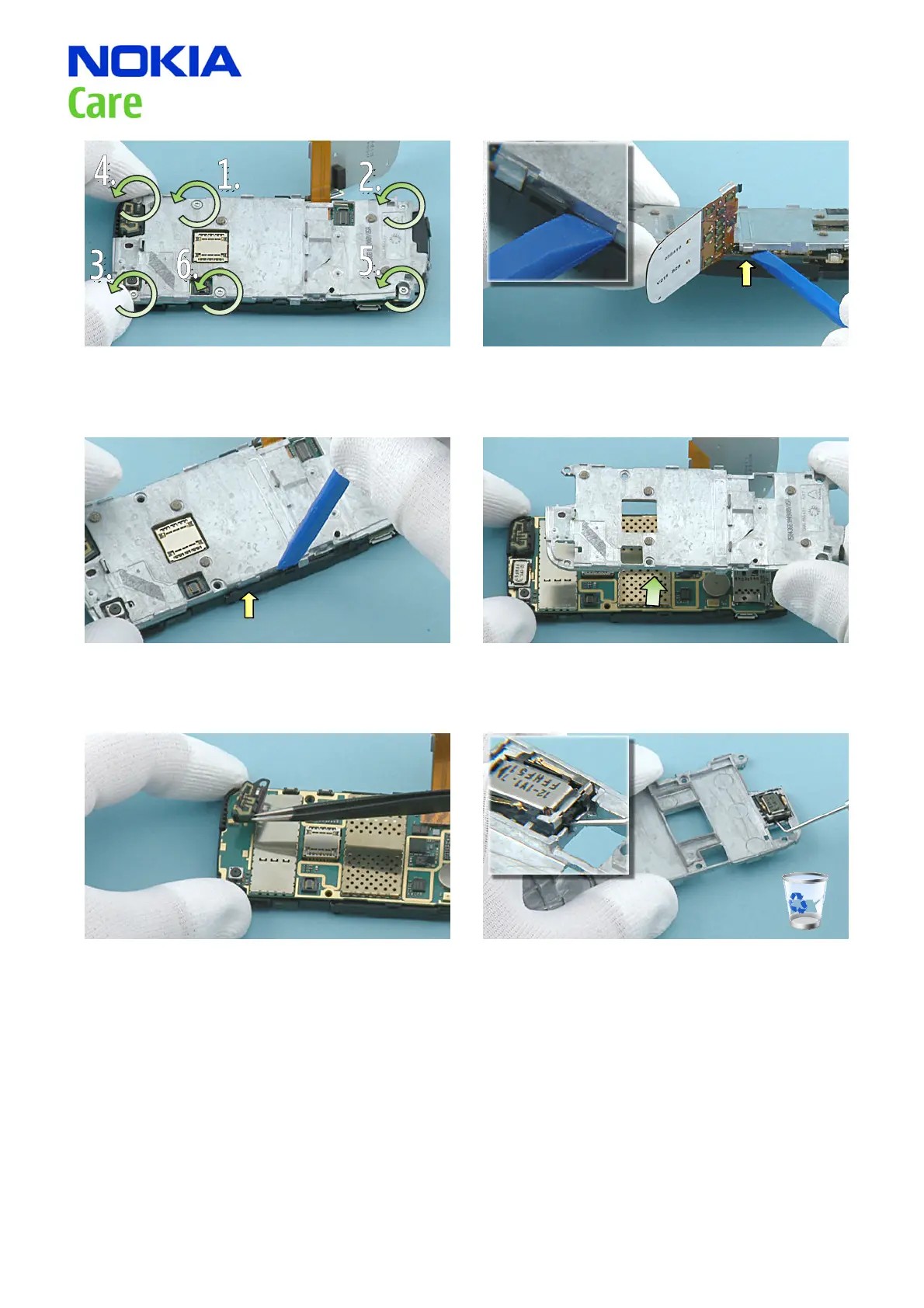

19) Unscrew the six Torx+ 5 screws in the order
shown.
20) Release the clip holding the DECK ASSEMBLY with
the SS-93…
21) … and do the same on the other side. 22) Then separate the DECK ASSEMBLY by lifting it
directly up.
23) Use the tweezers to remove the GPS ANTENNA
ASSEMBLY.
24) Remove the EARPIECE with the dental tool. Do
not use it again. Discard it.
