Nokia 7210 SAS-M Configuration Guide

Interface Configuration
7210 SAS M, T, X, R6, R12, Mxp, S, Sx Interface Configuration Guide Page 39

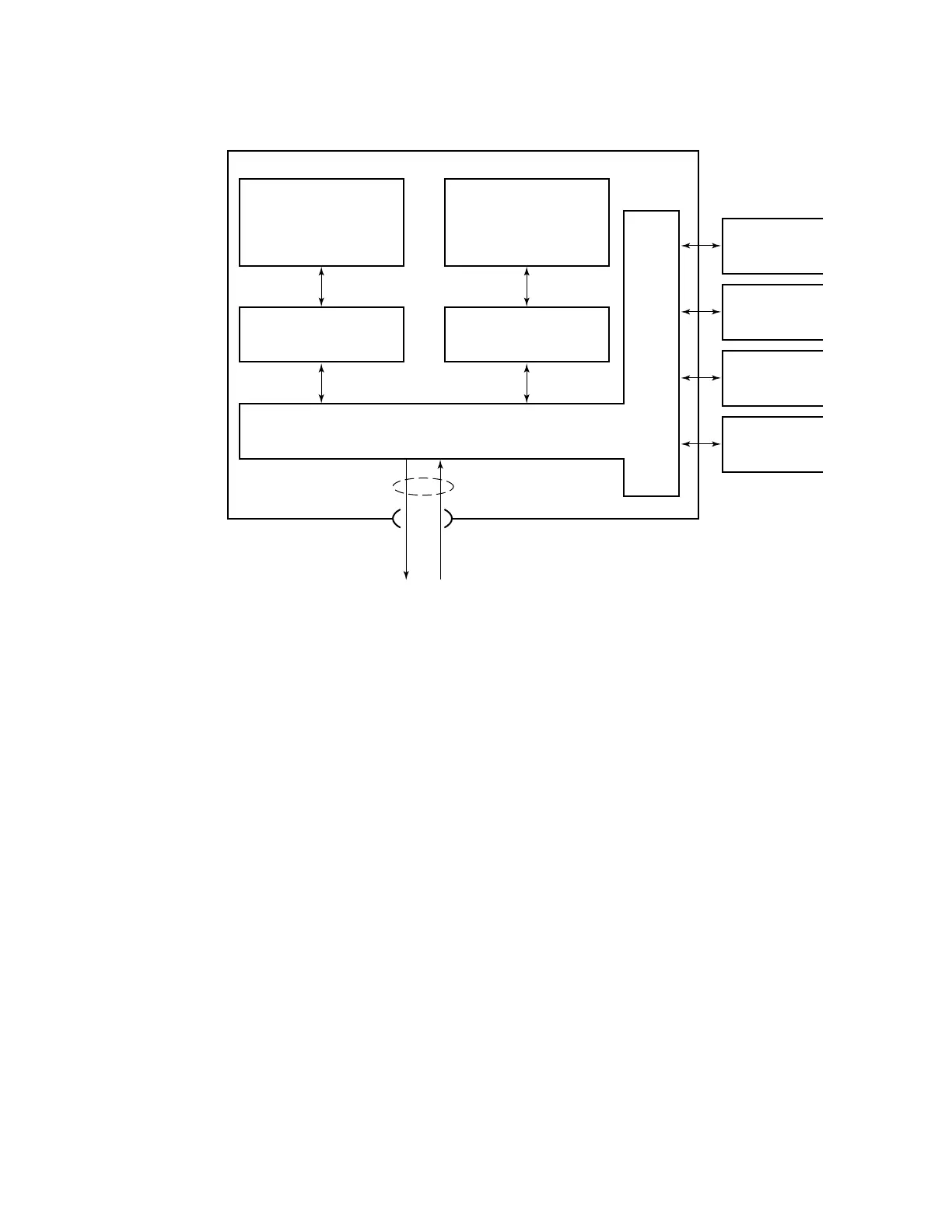

Figure 1: LLDP Internal Architecture for a Network Node
In order to detect and address network problems and inconsistencies in the configuration, the
network operators can discover the topology information using LLDP. The Standard-based tools
address the complex network scenarios where multiple devices from different vendors are
interconnected using Ethernet interfaces.
The example displayed in Figure 2 depicts a MPLS network that uses Ethernet interfaces in the
core or as an access/handoff interfaces to connect to different kind of Ethernet enabled devices
such as service gateway/routers, QinQ switches DSLAMs or customer equipment.
The topology information of the network in Figure 2 can be discovered if, IEEE 802.1ab LLDP is
running on each of the Ethernet interfaces in network.
OSSG262
Organizationally
Defined Local Device
LLDP MIB Extension
(Optional)
LLDP Local System
MIB
Organizationally
Defined Remote Device
LLDP MIB Extensions
(Optional)
LLDP Remote Systems
MIB
PTOPO MIB
(Optional)
Entity MIB
(Optional)
LLDP/LSAP
Remote Device InformationLocal Device Information
LLDP Frames
Interface MIB
(Optional)
Other MIBs
(Optional)
LLDP Agent
