Nokia 7368 ISAM ONT E-240G-B - Figure 29 Faceplate Tabs; Figure 30 Lock Tabs on the ONU

7368 ISAM ONT E-240G-B Product Guide Install an E-240G-B ONU
Issue: 01 3FE-46261-AAAA-TCZZA 73
4 Mount the ONU to the faceplate:
a Place the ONU on the faceplate, making sure that the 4 tabs on the bottom of the
faceplate are inserted into the ONU. See Figure 29.

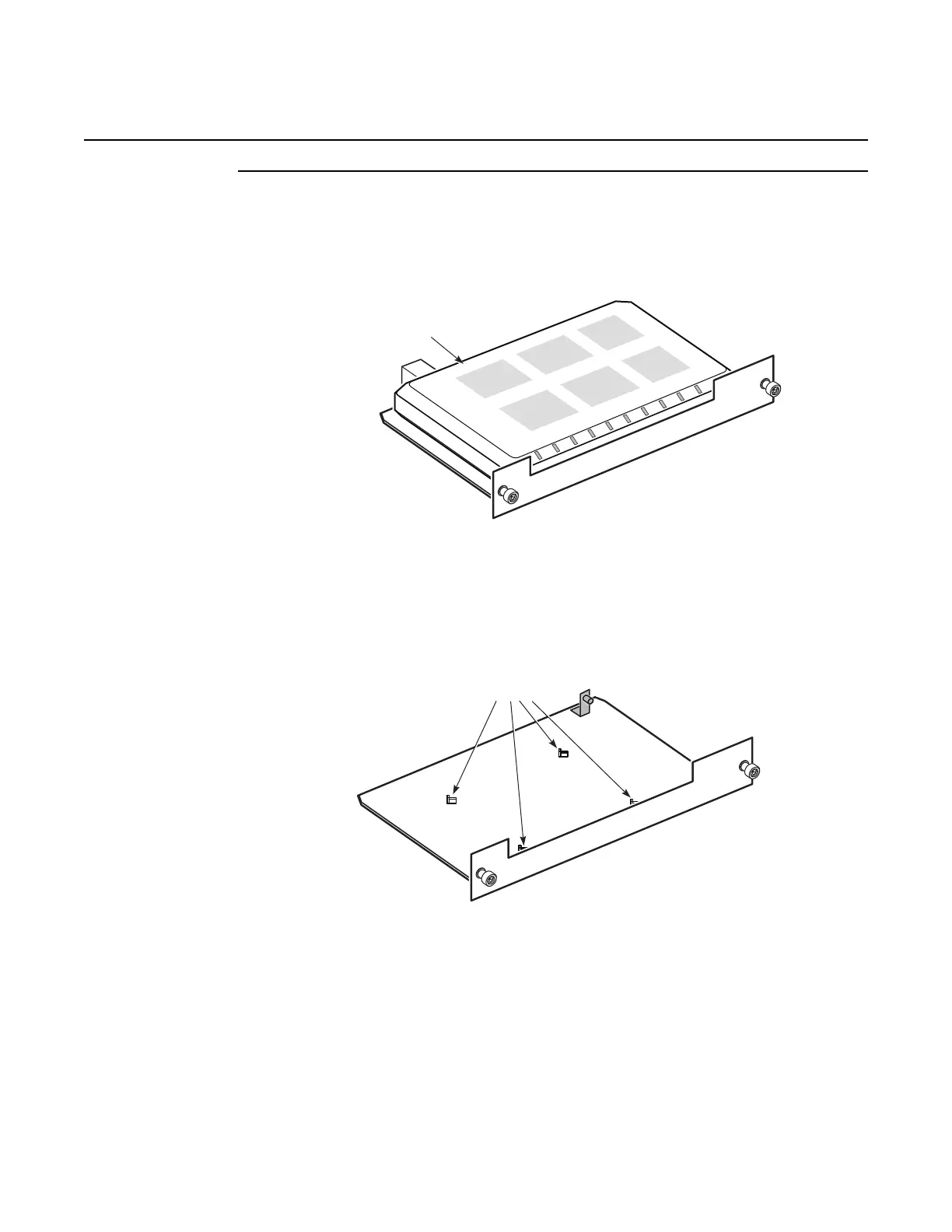

Figure 29 Faceplate tabs
b Slide the ONU to the appropriate position.
c Make sure all tabs are locked. See Figure 30.
Figure 30 Lock tabs on the ONU
d Tighten the ground lug on the faceplate with an M5 screw. See Figure 31.
ONT placed over
faceplate tabs
24727
ONT lock tabs
24728
