Nokia C3-00 - Home Screen and Display

Nokia C3-00
RM-614
Service Manual Level 1&2
14
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 3.0 ISSUE 1

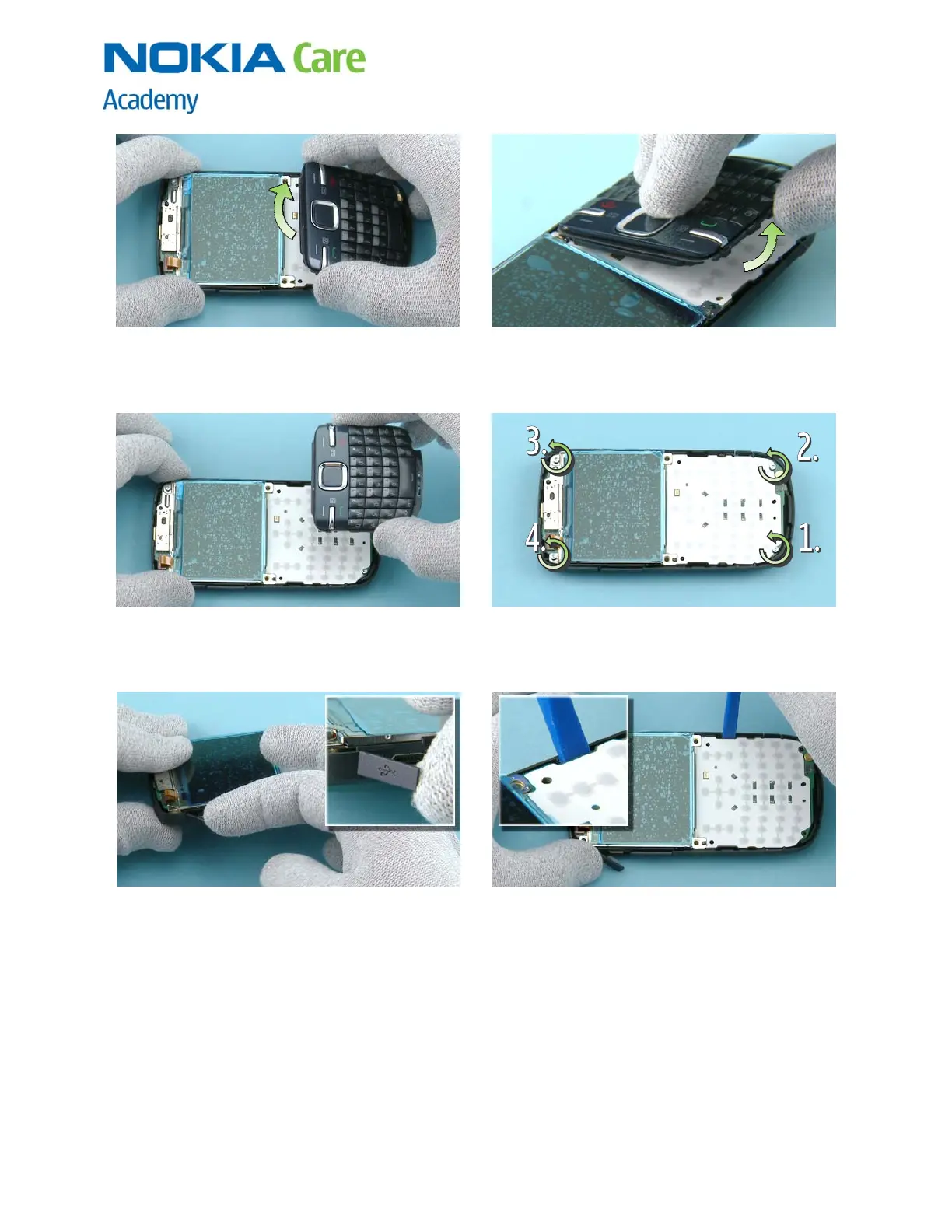

13) Lift up the KEYMAT ASSY from the top side as
shown.
14) Then lift up the KEYMAT ASSY from bottom left
side.
15) Remove the KEYMAT ASSY. 16) Unscrew the four TORX+ size 6 screws in the
order shown.
17) To release the engine board, open the USB door. 18) Use the SS-93 to lift up the PWB.
