Nokia Lumia 1020 Service Manual

Service Manual Level 1 and 2
Nokia Lumia 1020
RM-877
Version 2.0

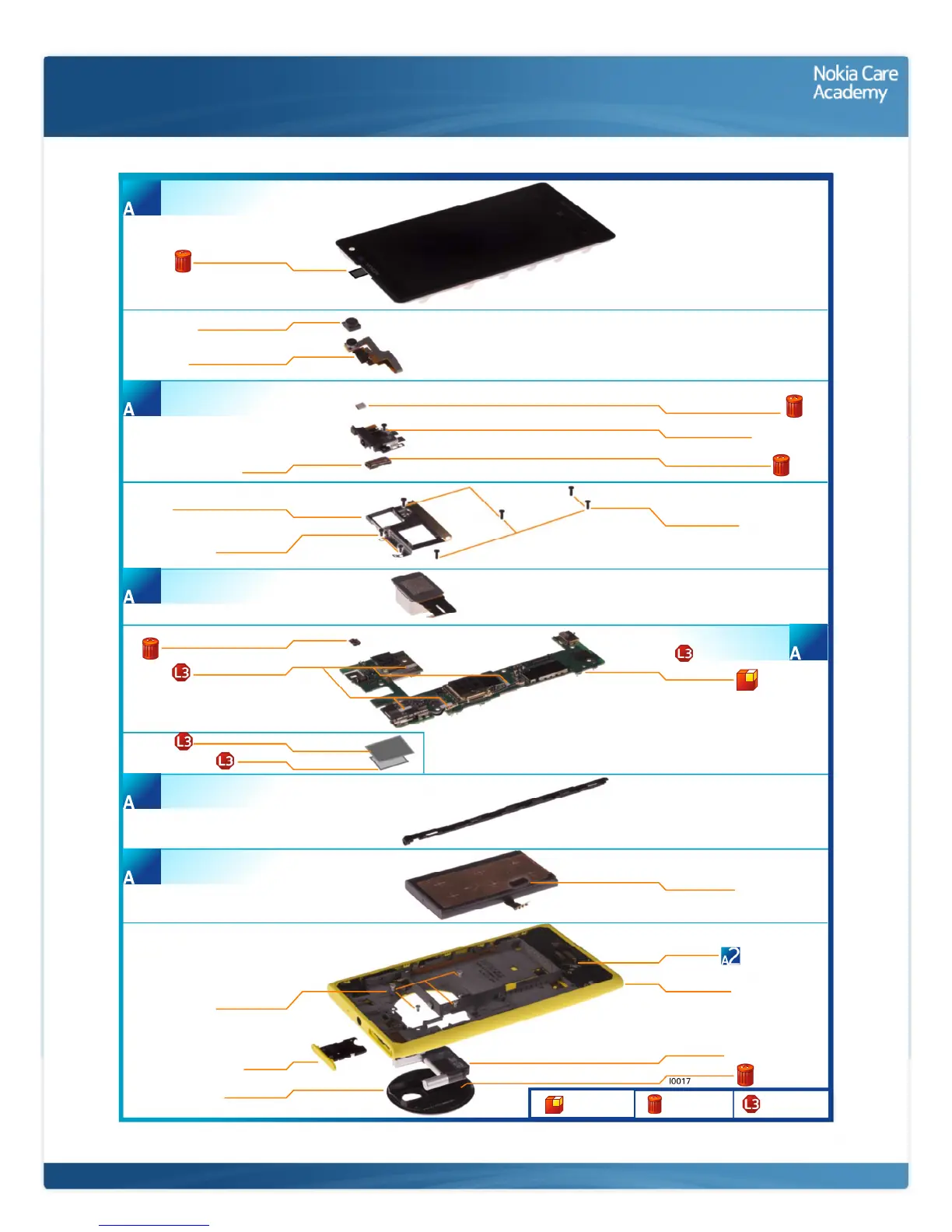

Exploded view
2ND CAMERA GASKET
I0013
EARPIECE
I0005
2ND CAMERA GROUNDING PAD
I0003
LIGHT SWAP PWB
I0002
CAMERA DECO
I0016
SIM TRAY
I0021
BATTERY HOLDER ASSEMBLY
I0009
2ND CAMERA ASSEMBLY
I0012
SENSOR SEALING TAPE
I0001
WATER INGRESS LABEL
LABEL TRAY ASSEMBLY
I0018
EARPIECE HOLDER GASKET
I0007
AV FRAME GROUNDING FOAM
I0006
USB GASKET
I0004
TYPE LABEL
I0019
BATTERY GASKET
I0008
XENON FLASH
I0015
FLASH ADHESIVE
BODY ASSEMBLY
I0020
SCREW TORX+
SIZE 6 M1.6 X 3.5
I0010
SCREW TORX+ SIZE 5
SCREW TORX+
SIZE 5 M1.4 x 3.0
I0011
SCREW TORX+
SIZE 4 M1.4 x 2.5
I0014
CAMERA ASSEMBLY
5
WINDOW ASSEMBLY
(I0001)
1
AV ASSEMBLY
(I0005 - I0007)
3
LOCKING RAIL ASSEMBLY
6
BATTERY ASSEMBLY
(I0008)
4
LIGHT SWAP PACKAGE
(I0002 - I0004)
2
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.

Nokia Lumia 1020 Specifications

General

Display	4.5 inches, AMOLED, 768 x 1280 pixels
RAM	2 GB
Operating System	Microsoft Windows Phone 8, upgradable to 8.1
Chipset	Qualcomm MSM8960 Snapdragon S4 Plus
CPU	Dual-core 1.5 GHz Krait
GPU	Adreno 225
Weight	158 g (5.57 oz)
Dimensions	130.4 x 71.4 x 10.4 mm (5.13 x 2.81 x 0.41 in)
Network	GSM / HSPA / LTE
Front Camera	1.2 MP, 720p
Internal Storage	32 GB
Battery	Li-Ion 2000 mAh, non-removable
Camera	41 MP, OIS, Xenon flash, LED flash
