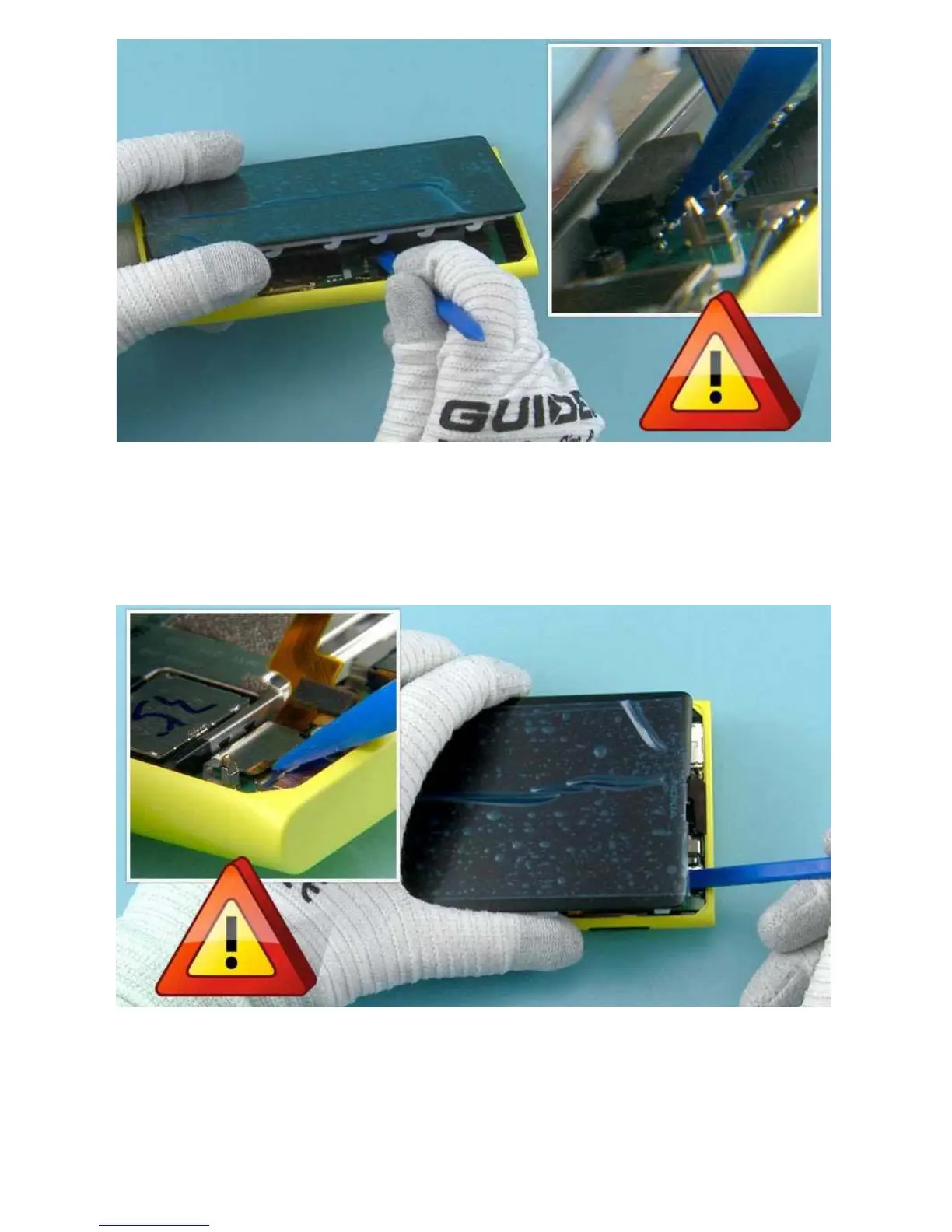

9) Use the SS-93 to open the BATTERY CONNECTOR.
Be careful not to damage the connector or any nearby components.
NOTE: The opening order of the connectors is mandatory to minimize the risk of battery current short
circuits.
10) Use the SS-93 to open the 2nd CAMERA FLEX CONNECTOR.
Be careful not to damage the connector or any nearby components.
