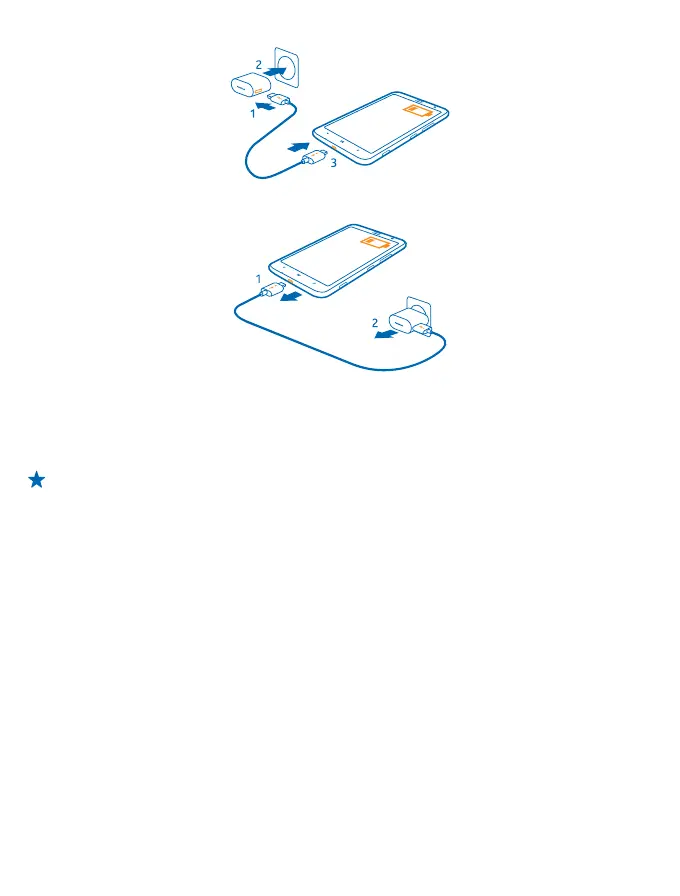

2. When the battery is full, disconnect the charger from the phone, then from the wall outlet.
You don't need to charge the battery for a specific length of time, and you can use the phone while
it's charging.
If the battery is completely discharged, it may need to charge for up to 20 minutes before you can
use your phone. The charging indicator may not be displayed in this time.
Tip: You can use USB charging when a wall outlet is not available. Data can be transferred while
charging the device. The efficiency of USB charging power varies significantly, and it may take
a long time for charging to start and the device to start functioning.
Make sure your computer is switched on.
First connect the USB cable to the computer, then to your phone. When the battery is full, first
disconnect the USB cable from your phone, then from the computer.
The battery can be charged and discharged hundreds of times, but it will eventually wear out. When
the talk and standby times are noticeably shorter than normal, to replace the battery, take the device
to the nearest authorised service facility.
Battery
Take good care of your battery, it's the life force of your phone.
Your phone has an internal, non-removable, rechargeable battery. Use only Nokia approved chargers
designated for this phone. You can also use a compatible USB cable to charge your phone (included).
Do not attempt to remove the battery from the device. To replace the battery, take the device to
your nearest authorised service facility.
Authorised retail points may also offer a battery replacement service.
© 2014 Nokia. All rights reserved.
11

Table of Contents

Other manuals for Nokia Lumia 1320

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Nokia Lumia 1320 and is the answer not in the manual?

Nokia Lumia 1320 Specifications

General IconGeneral
Pixel density245 ppi
Display diagonal6 \
Touch technologyMulti-touch
Display resolution1280 x 720 pixels
Native aspect ratio16:9
Display number of colors16.78 million colors
Processor cores2
Processor familyQualcomm Snapdragon
Processor frequency1.7 GHz
RAM capacity1 GB
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size64 GB
Internal storage capacity8 GB
Flash typeLED
White balanceAuto, Cloudy, Daylight, Fluorescent, Incandescent
ISO sensitivity100, 200, 400, 800, Auto
Front camera typeSingle camera
Maximum frame rate30 fps
Optical sensor size1/4 \
Video recording modes1080p
Resolution at capture speed1920x1080@30fps
Rear camera resolution (numeric)5 MP
Front camera resolution (numeric)0.3 MP
4G standardLTE
2G standardsGSM
3G standardsWCDMA
SIM card typeMicroSIM
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version4.0
3G bands supported850, 900, 2100 MHz
4G bands supported800, 1800, 2600 MHz
Bluetooth profilesA2DP, AVRCP, HFP, OPP, PBAP
SIM card capability-
Security algorithmsEAP-SIM, PEAP, WEP, WPA, WPA2
2G bands (primary SIM)850, 900, 1800, 1900 MHz
Mobile network generation4G
USB version2.0
USB connector typeMicro-USB, Micro-USB B
Headphone connectivity3.5 mm
Form factorBar
Product colorBlack
PlatformWindows
Operating system installedWindows Phone 8
Voice codecsAMR-NB, AMR-WB, EFR
Audio formats supportedAMR-NB, MP3, WMA
Video formats supported3G2, 3GP, AVI, M4V, MOV, MP4, WMV
Document formats supportedDOC, PDF, PPT, XLS
Multimedia Messaging Service (MMS)Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Talk time (2G)25 h
Talk time (3G)21 h
Battery capacity3400 mAh
Standby time (3G)- h
Browsing time (Wi-Fi)11.5 h
Continuous audio playback time98 h
Continuous video playback time9 h
Cables includedAC, DC
Weight and Dimensions IconWeight and Dimensions
Depth9.8 mm
Width85.9 mm
Height164.2 mm
Weight220 g
