Nokia Lumia 1520 Service Manual

Service Manual Level 1 and 2
Nokia Lumia 1520
RM-937, RM-938, RM-939, RM-940 (AT&T)
Version 1.0

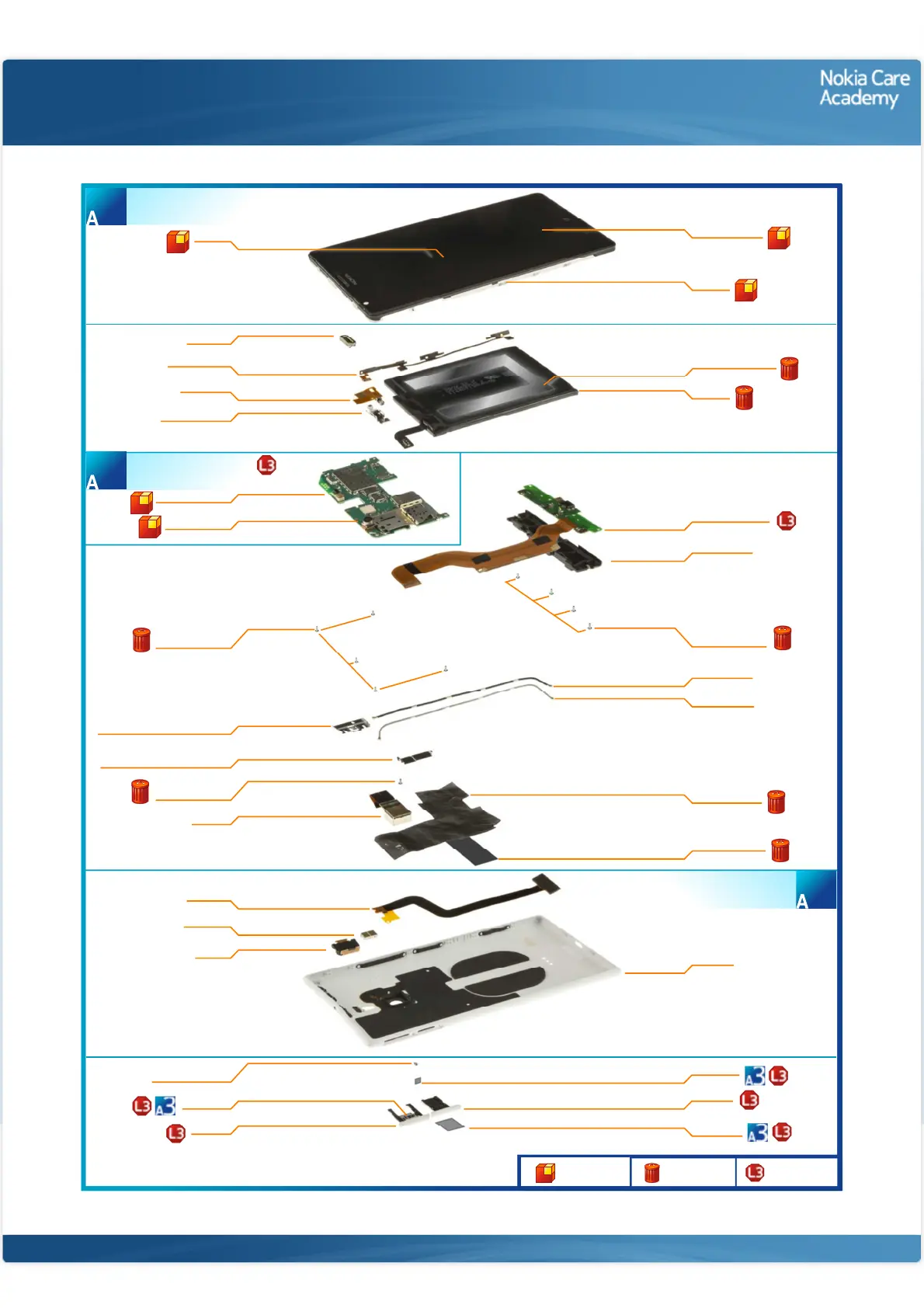

Exploded view
DISPLAY
I0003
VIBRA FLEX
I0004
SKYPE CAMERA
I0013
LIGHT SWAP PWB
I0014
HEAT SPREADER
I0008
SHOCK ADHESIVE
I0029
CAMERA
I0020
PMA FLEX
I0028
*Only in AT&T
variant RM-940
SIDE KEY FLEX
I0005
EARPIECE
I0009
VIBRA SUPPORT
I0022
BRIDGE CONNECTOR SUPPORT
I0023
DISPLAY CONNECTOR SUPPORT
I0021
LED FLASH
I0011
AV FLEX
I0012
SD TRAY
I0027
CHASSIS
I0002
BATTERY
I0006
BATTERY ADHESIVE
I0007
TYPE LABEL
I0015
TYPE LABEL
I0015
COAX CABLE 2
I0019
UNIBODY
I0010
IMEI LABEL
I0015
SIM TRAY
I0026
IHF ANTENNA
I0016
BOTTOM MODULE
0017
COAX CABLE 1
I0018
TOUCH WINDOW
I0001
SCREW TORX+
SIZE 4 M1.2 X 2.6
I0024
SCREW TORX+
SIZE 4 M1.2 X 2.6
I0024
SCREW TORX+
SIZE 4 M1.2 X 2.6
I0024
SCREW TORX+
SIZE 2 M1.4 x 2.0
I0025
DISPLAY ASSEMBLY
(I0001 - I0003)
1
LIGHT SWAP PACKAGE
(I0013 - I0015)
3
UNIBODY MODULE
(I0010 - I0012, I0028*)
2
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.

Nokia Lumia 1520 Specifications

General

Display Size	6.0 inches
Resolution	1080 x 1920 pixels
Display Type	IPS LCD
Processor	Qualcomm Snapdragon 800
RAM	2 GB
Internal Storage	32 GB
Rear Camera	20 MP
Front Camera	1.2 MP
Battery Capacity	3400 mAh
Battery Type	Li-Ion
Operating System	Windows Phone 8, upgradable to 8.1
SIM Card	Nano-SIM
Dimensions	162.8 x 85.4 x 8.7 mm
Weight	209 g
Network	GSM / HSPA / LTE
Colors	Yellow, White, Black, Red
