Nokia Lumia 930 Service Manual

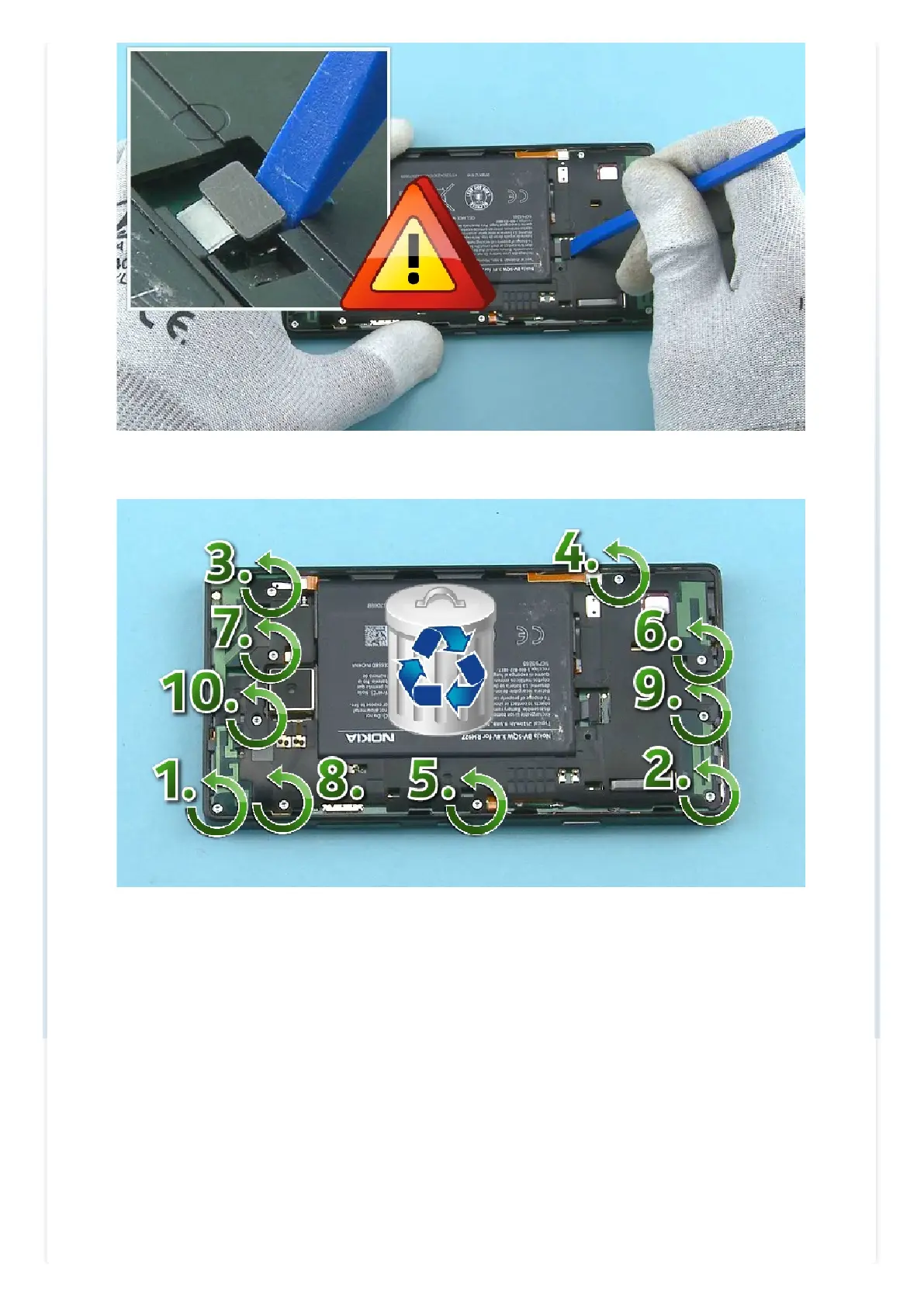

9) Disconnect the BATTERY connector with the SS-93. Be careful not to damage the connector.
10) Unscrew the ten TORX+ SIZE 4 screws in the order shown. Do not use the screws again. Discard them.

Nokia Lumia 930 Specifications

General

Display Size	5.0 inches
Resolution	1080 x 1920 pixels
Display Type	AMOLED
Processor	Qualcomm Snapdragon 800
RAM	2 GB
Internal Storage	32 GB
Main Camera	20 MP
Front Camera	1.2 MP
Battery	2420 mAh
Operating System	Windows Phone 8.1
Dimensions	137 x 71 x 9.8 mm
Weight	167 g
Network	GSM / HSPA / LTE
SIM	Nano-SIM
WLAN	Wi-Fi 802.11 a/b/g/n/ac
GPS	Yes, with A-GPS, GLONASS
NFC	Yes
USB	microUSB 2.0
Sensors	Accelerometer, gyro, proximity, compass
Colors	Black, White, Orange, Green
Bluetooth	4.0
