Nokia Lumia 930 Service Manual

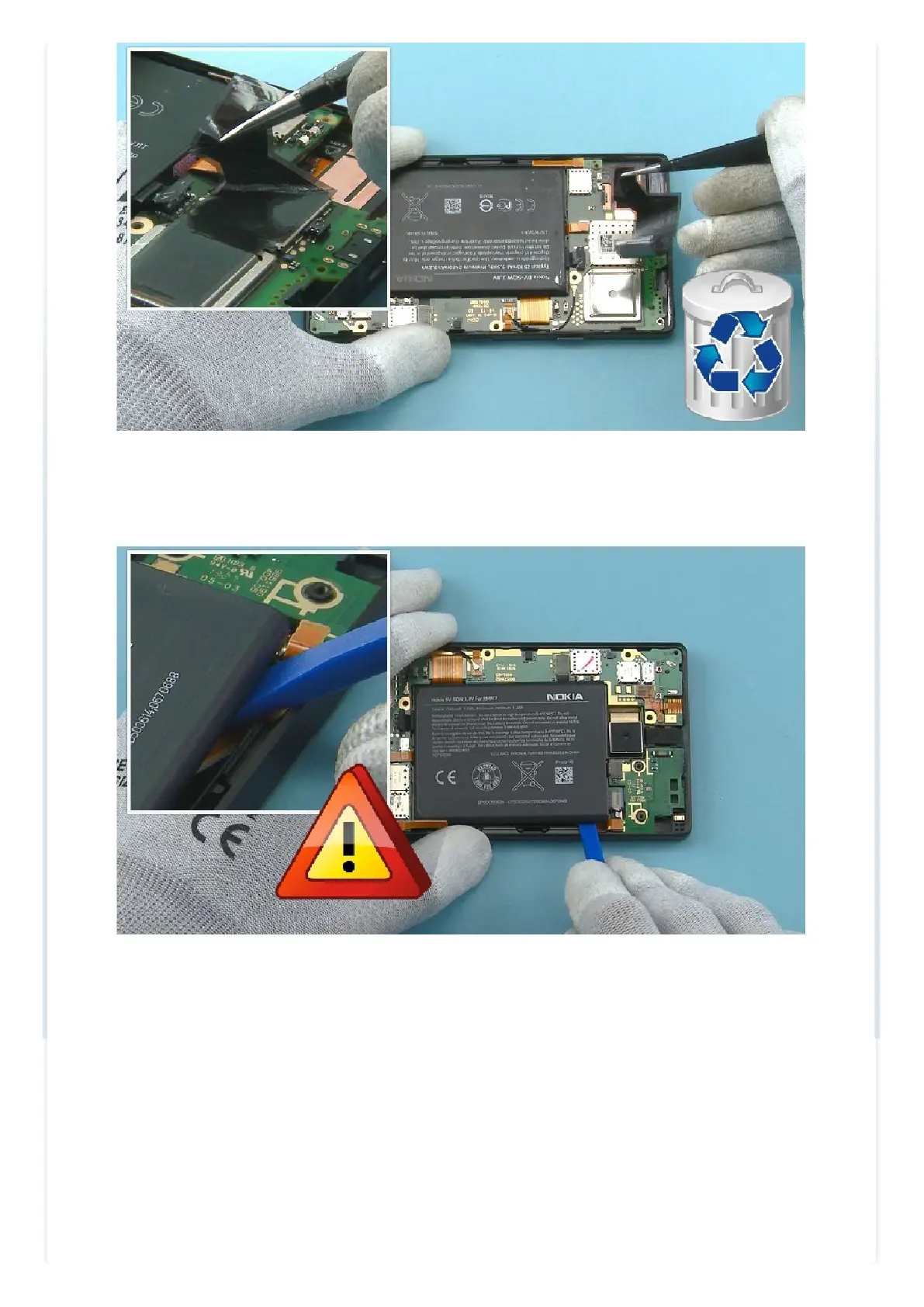

13) Remove the HEAT SPREADER with tweezers. Do not use it again. Discard it.
Note that the HEAT SPREADER needs to be removed completely ONLY when the ENGINE BOARD requires
repair work.
14) Release the BATTERY from the shown place with the SS-93. Be careful not to damage the two flexes
located under the BATTERY.

Nokia Lumia 930 Specifications

General

Display Size	5.0 inches
Resolution	1080 x 1920 pixels
Display Type	AMOLED
Processor	Qualcomm Snapdragon 800
RAM	2 GB
Internal Storage	32 GB
Main Camera	20 MP
Front Camera	1.2 MP
Battery	2420 mAh
Operating System	Windows Phone 8.1
Dimensions	137 x 71 x 9.8 mm
Weight	167 g
Network	GSM / HSPA / LTE
SIM	Nano-SIM
WLAN	Wi-Fi 802.11 a/b/g/n/ac
GPS	Yes, with A-GPS, GLONASS
NFC	Yes
USB	microUSB 2.0
Sensors	Accelerometer, gyro, proximity, compass
Colors	Black, White, Orange, Green
Bluetooth	4.0
