N611v, N811v ModelsRefrigerator Service Manual
LP Gas System - cont’d.

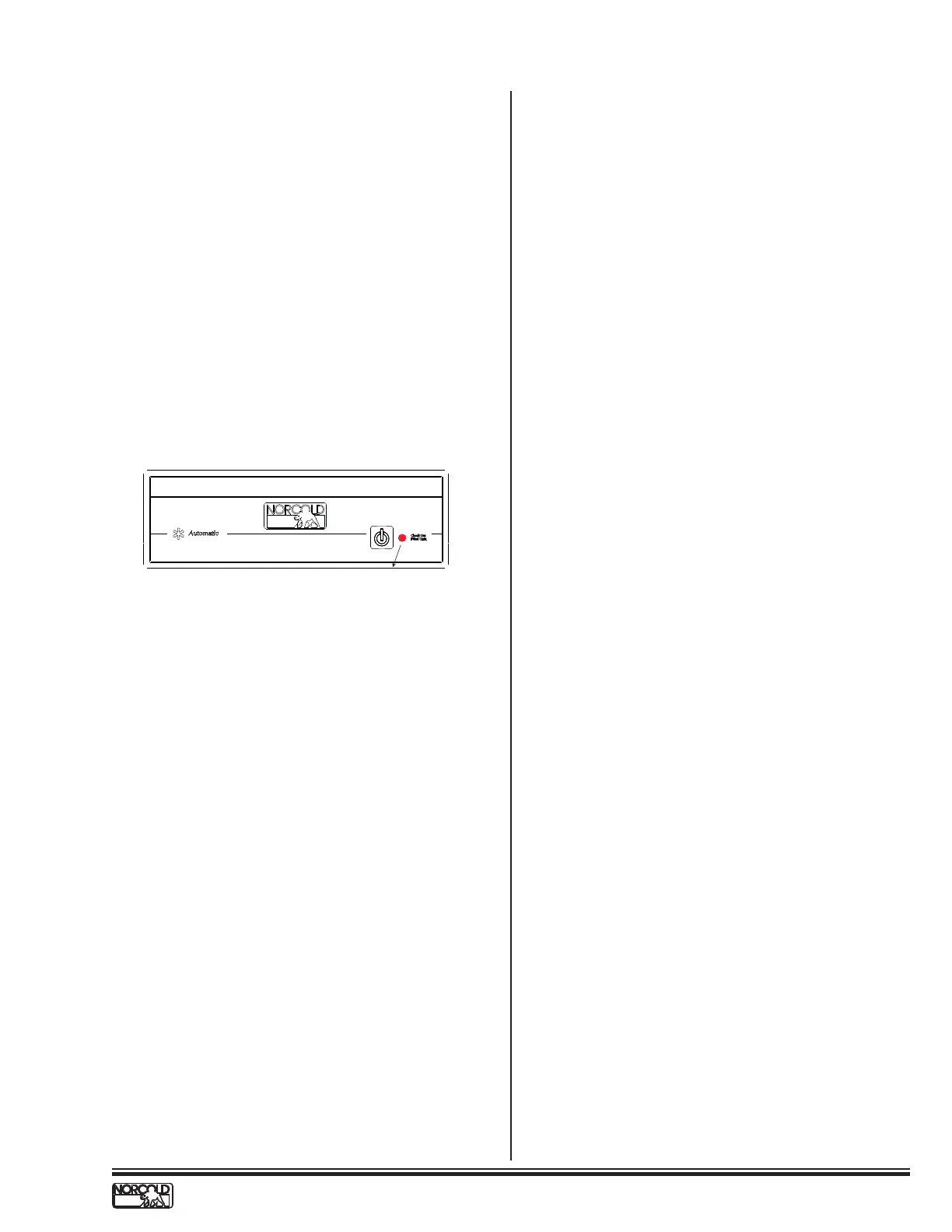

Gas Lockout
CODE 0
CONSTANT RED INDICATOR LIGHT
Refer page 13 for additional details.
Solid Red Indicator Light
For safety reasons, the refrigerator’s electronic controls are
designed so the ignition trial (maximum amount of time the gas
valve and igniter can be left on) is limited to 30-seconds when
operating in the LP GAS mode. Certain conditions can cause
air in the gas supply line which may result in a gas lockout
condition.
Conditions That Cause Air in Gas Supply Lines
• When starting the refrigerator for the fi rst time
• After storage
• After replacing the propane gas tank
Results of Air in Gas Supply Lines:
• Gas valve and igniter outputs will be turned off
• LP Gas mode will be “locked out”
• Power ON indicator is SOLID RED
Reset a Gas Lockout Condition - All Models
To reset a gas lockout condition, power the refrigerator Off
and back ON. The amount of air in the LP gas supply lines
determines if the procedure needs to be repeated several
times.
1. Open lower intake vent at refrigerator rear.
2. Remove both white wires from gas valve solenoid
3. Insert volt ohm meter leads into white wires and set
meter to read DC volts.
4. Unplug AC cord from unit to select LP Mode.
5. Verify meter reads approximately 12 volts DC and
igniter sparks at burner
6. After approximately 30 seconds, 12 volt output
measured at white wires is 0 volts and sparking at
burner will stop. This means the gas valve safety circuit
is operating correctly. The appropriate error will display
on the optical display
7. Reconnect white wires to the gas valve solenoid (it
doesn't matter what wire is attached to what terminal)
8. Close lower intake vent.
Gas Safety Valve Test
