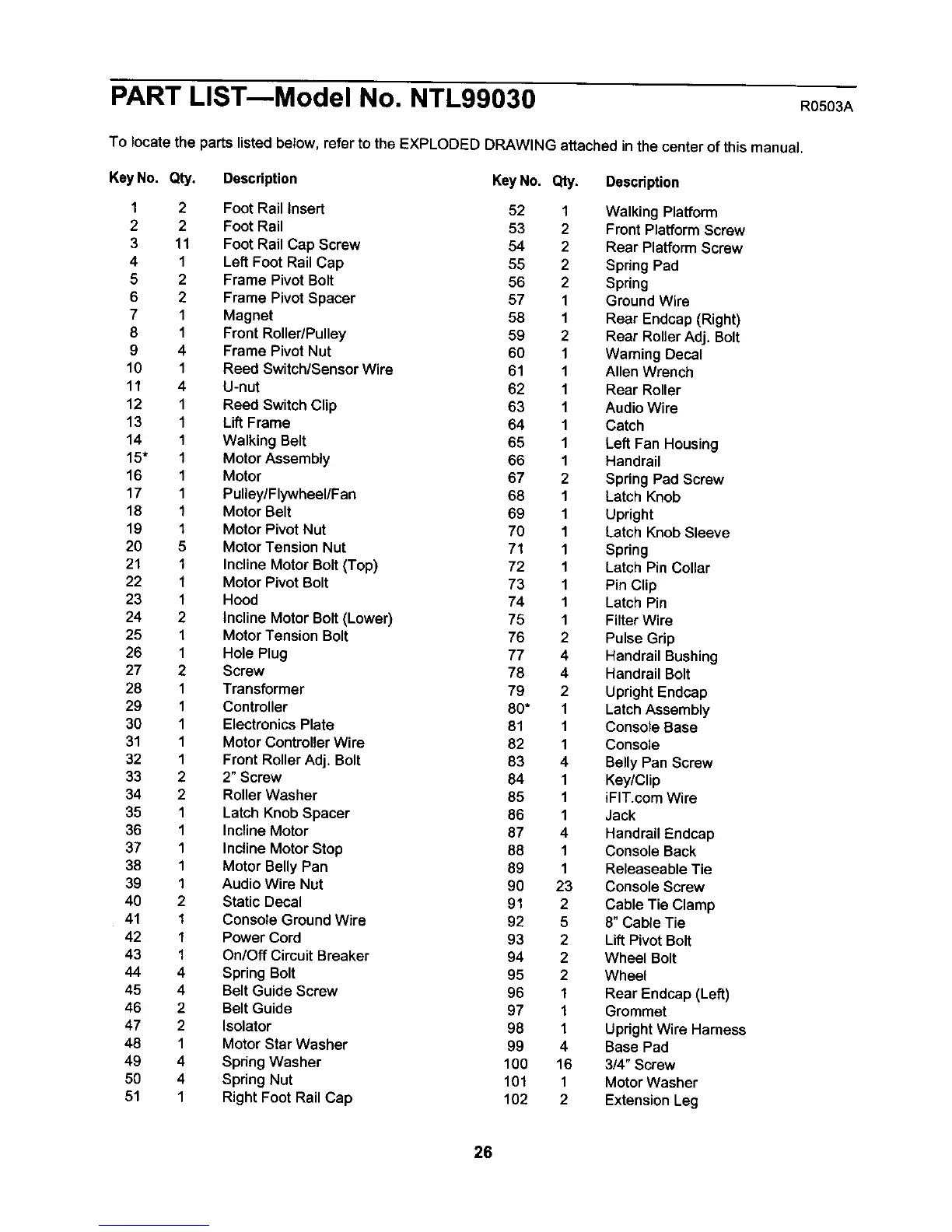

PART LIST--Model No. NTL99030 R0503A
To locate the parts listedbelow, refer to the EXPLODED DRAWING attached in the center of this manual.
KeyNo. Qty. Description KeyNo. Qty. Description
1 2 Foot Rail insert 52 1 Walking Platform
2 2 Foot Rail 53 2 Front Platform Screw
3 11 Foot RailCap Screw 54 2 Rear PlatformScrew
4 1 LeftFoot Rail Cap 55 2 SpringPad
5 2 Frame Pivot Bolt 56 2 Spring
6 2 Frame Pivot Spacer 57 1 Ground Wire
7 1 Magnet 58 1 Rear Endcap (Right)
8 1 Front Roller/Pulley 59 2 Rear RollerAdj. Bolt
9 4 Frame Pivot Nut 60 1 Waming Decal
10 1 Reed Switch/SensorWire 61 1 Allen Wrench
11 4 U-nut 62 1 Rear Roller
12 1 Reed SwitchClip 63 1 Audio Wire
13 1 LiftFrame 64 1 Catch
14 1 Walking Belt 65 1 LeftFan Housing
15" 1 Motor Assembly 66 1 Handrail
16 1 Motor 67 2 Spring Pad Screw
17 1 Pulley/Flywheel/Fan 68 1 Latch Knob
18 1 Motor Belt 69 1 Upright
19 1 Motor Pivot Nut 70 1 Latch Knob Sleeve
20 5 Motor Tension Nut 71 1 Spring
21 1 Incline Motor Bolt (Top) 72 1 Latch Pin Collar
22 1 Motor Pivot Bolt 73 1 Pin Clip
23 1 Hood 74 1 Latch Pin
24 2 Incline Motor Bolt (Lower) 75 1 Filter Wire
25 1 Motor Tension Bolt 76 2 Pulse Grip
26 1 Hole Plug 77 4 Handrail Bushing
27 2 Screw 78 4 Handrail Bolt
28 1 Transformer 79 2 Upright Endcap
29 1 Controller 80* 1 Latch Assembly
30 1 Electronics Plate 81 1 Console Base
31 1 Motor Controller Wire 82 1 Console
32 1 Front Roller Adj. Bolt 83 4 Belly Pan Screw
33 2 2" Screw 84 1 Key/Clip
34 2 Roller Washer 85 1 iFIT.com Wire
35 1 Latch Knob Spacer 86 1 Jack
36 1 Incline Motor 87 4 Handrail Endcap
37 1 Incline Motor Stop 88 1 Console Back
38 1 Motor Belly Pan 89 1 Releaseable Tie
39 1 Audio Wire Nut 90 23 Console Screw
40 2 Static Decal 91 2 Cable Tie Clamp
41 1 Console Ground Wire 92 5 8" Cable Tie
42 1 Power Cord 93 2 Lift Pivot Bolt
43 1 On/Off Circuit Breaker 94 2 Wheel Bolt
44 4 Spring Bolt 95 2 Wheel
45 4 Belt Guide Screw 96 1 Rear Endcap (Left)
46 2 Belt Guide 97 1 Grommet
47 2 Isolator 98 1 Upright Wire Harness
48 1 Motor Star Washer 99 4 Base Pad
49 4 Spring Washer 100 16 3/4" Screw
50 4 Spring Nut 101 1 Motor Washer
51 1 Right Foot Rail Cap 102 2 Extension Leg
