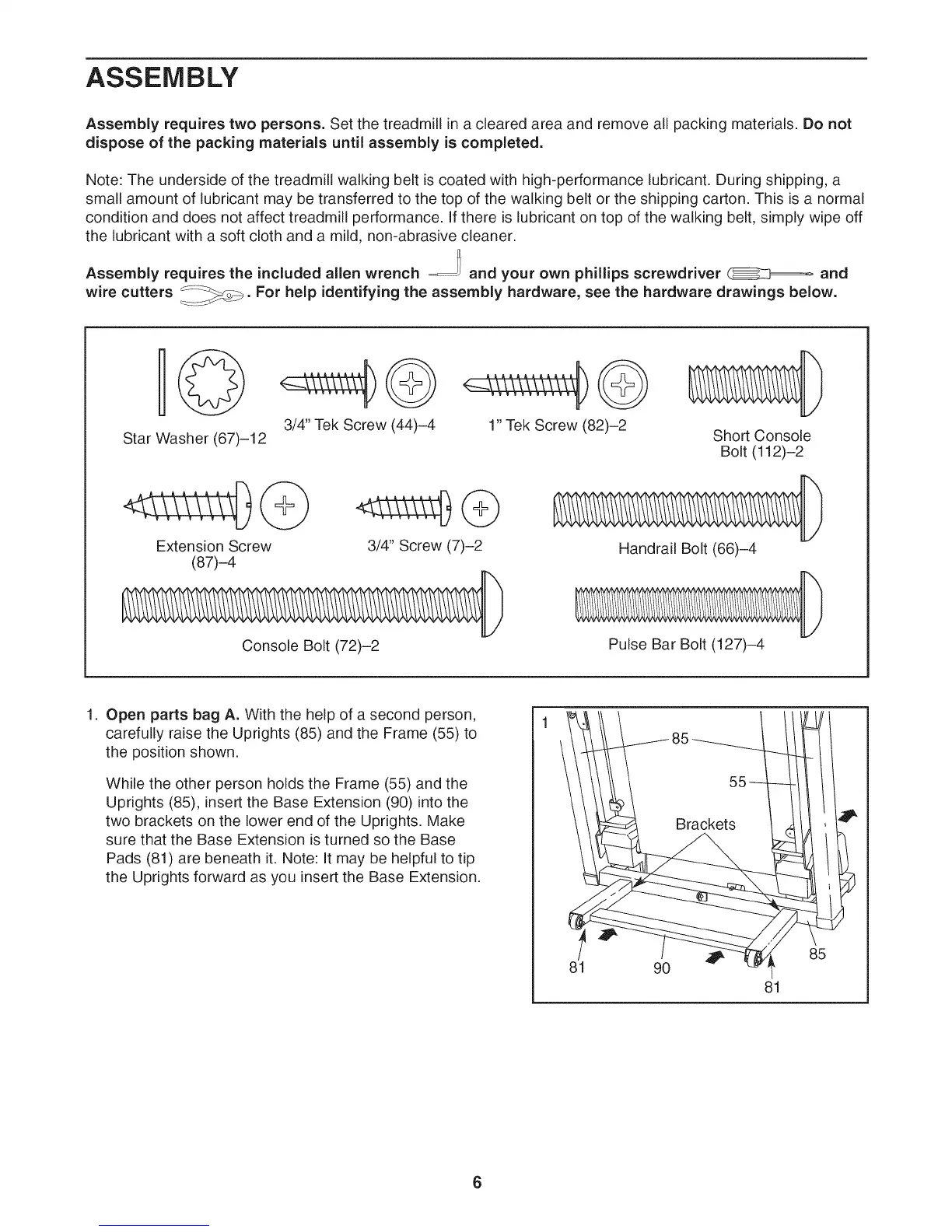

ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance, if there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench and your own phillips screwdriver _ and
wire cutters <_>. For help identifying the assembly hardware, see the hardware drawings below.
Star Washer (67)-12
3/4" Tek Screw (44)-4
1" Tek Screw (82)-2
Short Console
Bolt (112)-2
Extension Screw
(87)-4
3/4" Screw (7)-2
Handrail Bolt (66)-4
Console Bolt (72)-2
Pulse Bar Bolt (127)-4
1. Open parts bag A. With the help of a second person,
carefully raise the Uprights (85) and the Frame (55) to
the position shown.
While the other person holds the Frame (55) and the
Uprights (85), insert the Base Extension (90) into the
two brackets on the lower end of the Uprights. Make
sure that the Base Extension is turned so the Base
Pads (81) are beneath it. Note: It may be helpful to tip
the Uprights forward as you insert the Base Extension.
81 9O
85
81
