10
6
27
Avoid pinching the
Main Wire Harness (25)
25
29
7

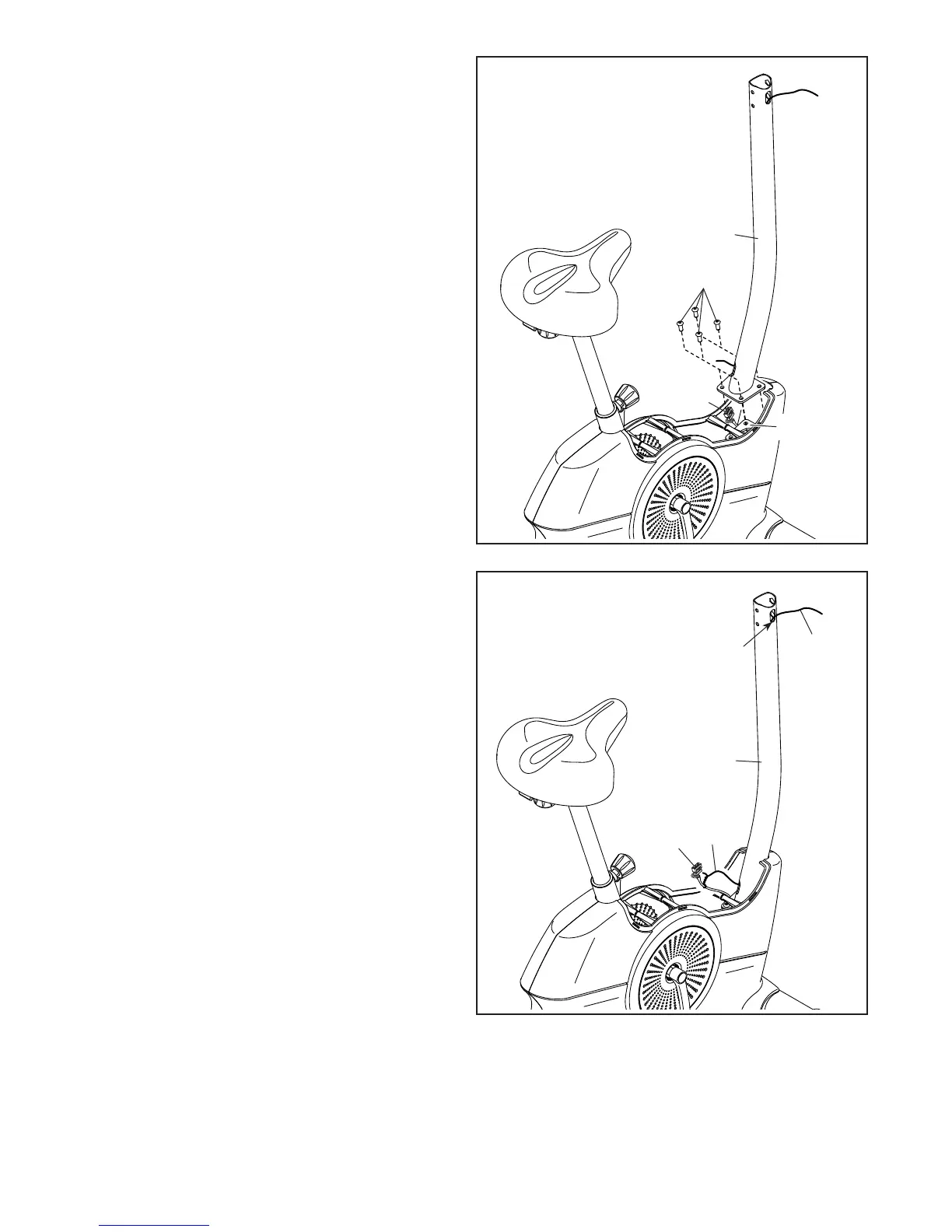

6. Tip: Avoid pinching the Main Wire Harness
(25). Orient the Upright (27) as shown, and hold
it on the Frame (50).
Attach the Upright (27) with four M8 x 20mm
Screws (29); start all the Screws, and then
tighten them.
7. Locate the lower end of the wire tie (E) in the
Upright (27). Tie the wire tie to the Main Wire
Harness (25). Then, pull the upper end of the
wire tie until the Main Wire Harness is routed
through the Upright and out of the indicated
hole (F).
Tip: To prevent the Main Wire Harness (25)
from falling into the Upright (27), secure the
Main Wire Harness with the wire tie (E).
27
25
E
E
50
F
To Next Page
