Overpressure fault
Overpressure warning
Underpressure warning
bar
bar
bar
P Sensor 1A
Operation
4-68
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Motor (contd.)

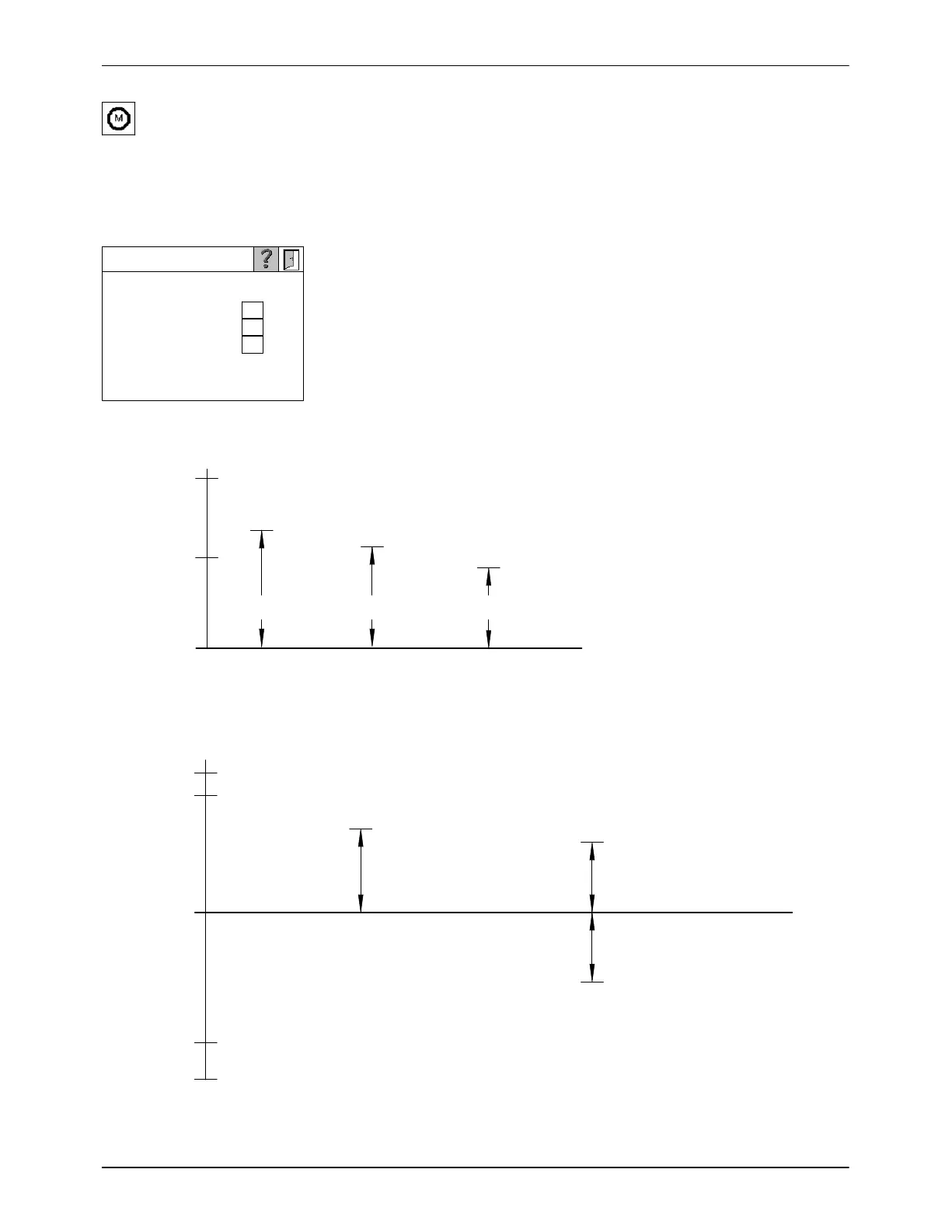

Screen 4: Pressure Alarms, Speed / Pressure Control
(contd.)
Pressure Sensor A / Pressure Sensor B
Two pressure sensors (A and B) can be assigned per pump (Refer to
Pressure Sensor Setup Fig. 4-77). The measured pressures are displayed
in the scan line of the starting screen and in the motor screen (Fig. M1).
NOTE: The values for warnings and faults are absolute values in Speed
control mode with the option Pressure display (Fig. 4-96). With the option
Pressure control, the values are differential values for sensors A and B
(Fig. 4-97)and absolute values for the sensors C (Fig. 4-96).
Fig. 4-96 M6
Actual
value
0 bar
Max. sensor measuring range (measuring range limit)
Underpressure warning
Overpressure warning
Overpressure fault
0 bar to measuring range limit
Fig. 4-97 Absolute values
100 %
80 %
Setpoint
Max. sensor measuring range (measuring range limit)
Max. setpoint
Underpressure warning
2 bar to 100 % (of measuring
range limit)
Warning Underpressure
Warning Overpressure
1 bar Min. setpoint
2 bar
Min. underpressure warning
Overpressure warning
2 bar to 100 % (of measuring
range limit)
Fault Overpressure
Overpressure fault
2 bar to 100 % (of measuring
range limit)
Fig. 4-98 Differential values
