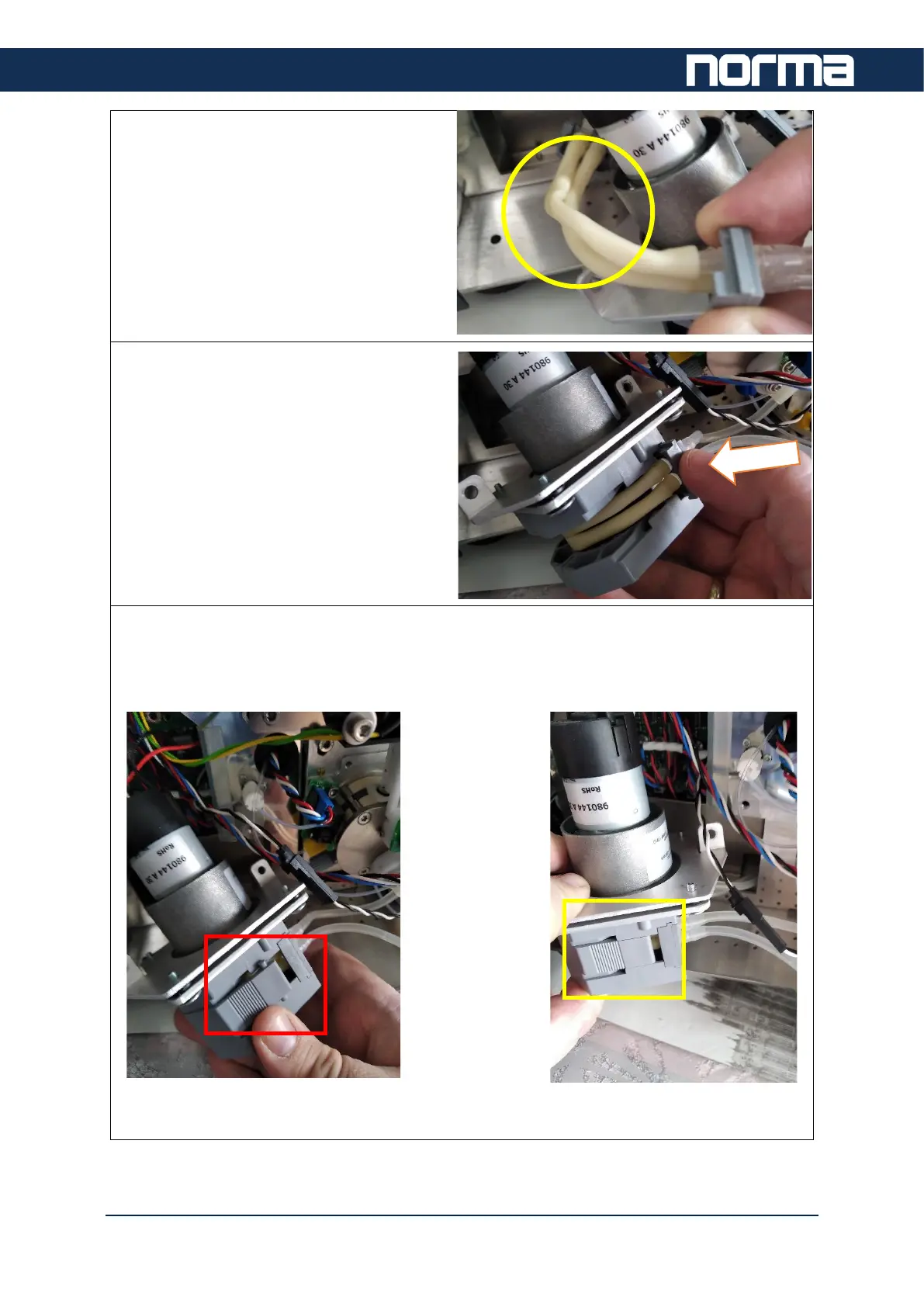

Install tubes, make sure they run parallelly,
they must not cross each other.
Reinstall the pump tubes. The adapter
heads will sit in the grooves at the pump
body. Slightly pull on the tubes to make
them sit properly in the pump over the
rollers.
Reinstall the cassette. Both ends must CLICK upon insertion. Make sure that the cassette
is level with the pump body. Incorrect alignment of the cassette will not allow the pump to
operate properly, it will fail to move liquid. If the cassette shows only a little gap, simply
push on the top of the cassette to push it in place.
Wrong cassette installation Good cassette alignment
