PX-50 N
These extremely compact rectifiers for single-phase inputs have been designed to feed 1000W Xenon lamps,
meeting the requirements of lamps manufacturers to ensure correct operation and long life of the lamp. The units are
fitted with a transformer with taps for output lamp power regulation and a special circuit to avoid the lamp turn off
during the tap switching. The cabinet, equipped with carrying handles, permits an easy inspection of the inside
components. Weight 63 kg. Further instructions in Installation guide for Rectifier.

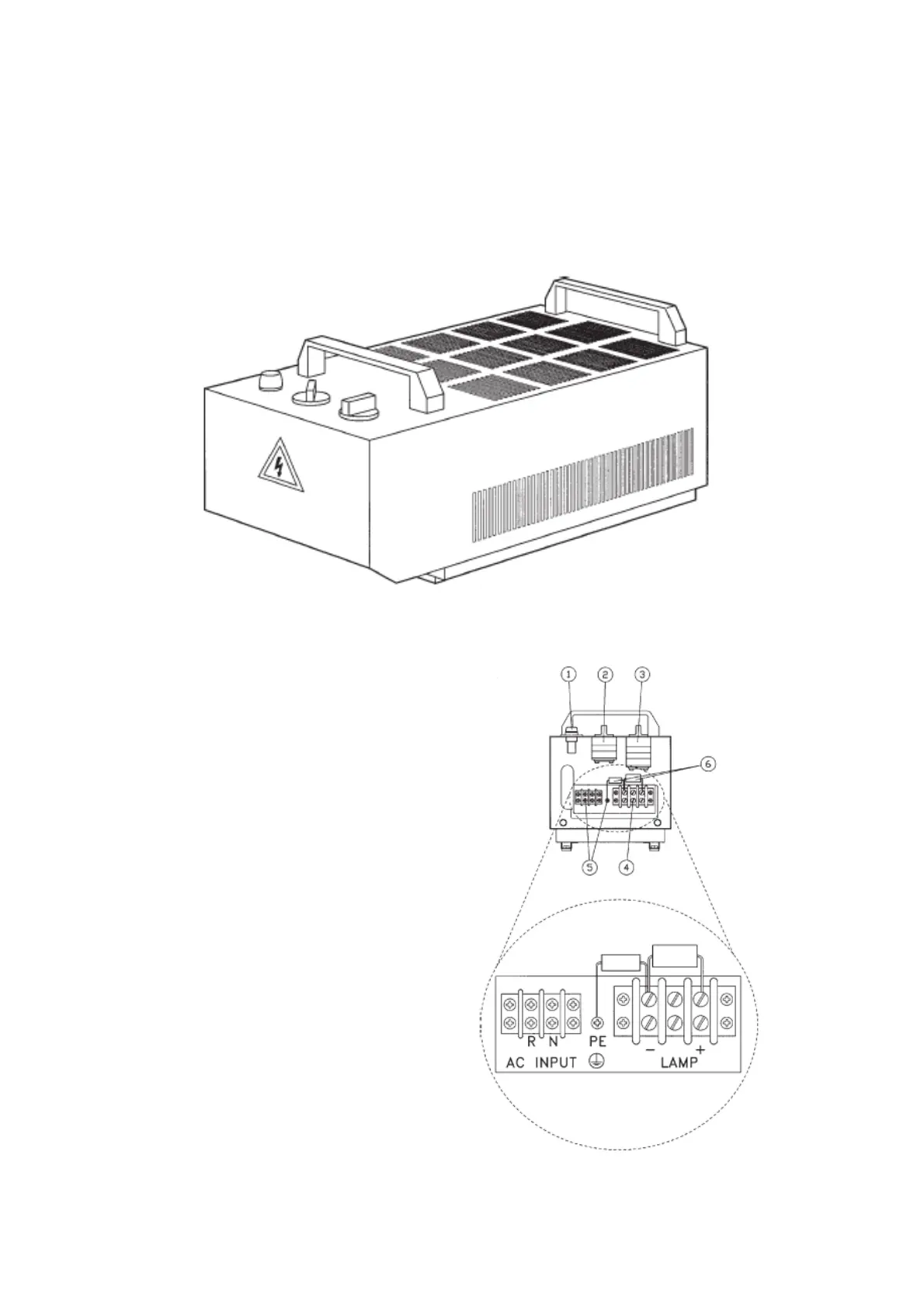

Control devices
1. Mains fuse (F1)
2. ON/OFF switch and high/low diode protection (C2, C7, C8)
lamp output current setting (Q1)
3. 6 steps lamp output current setting Q2))
4. Output terminals (-,+) (X2)
5. Input terminals (R, N plus PE)(X1)
6. HF filtering capacitors (C5-C6)
