224 System maintenance

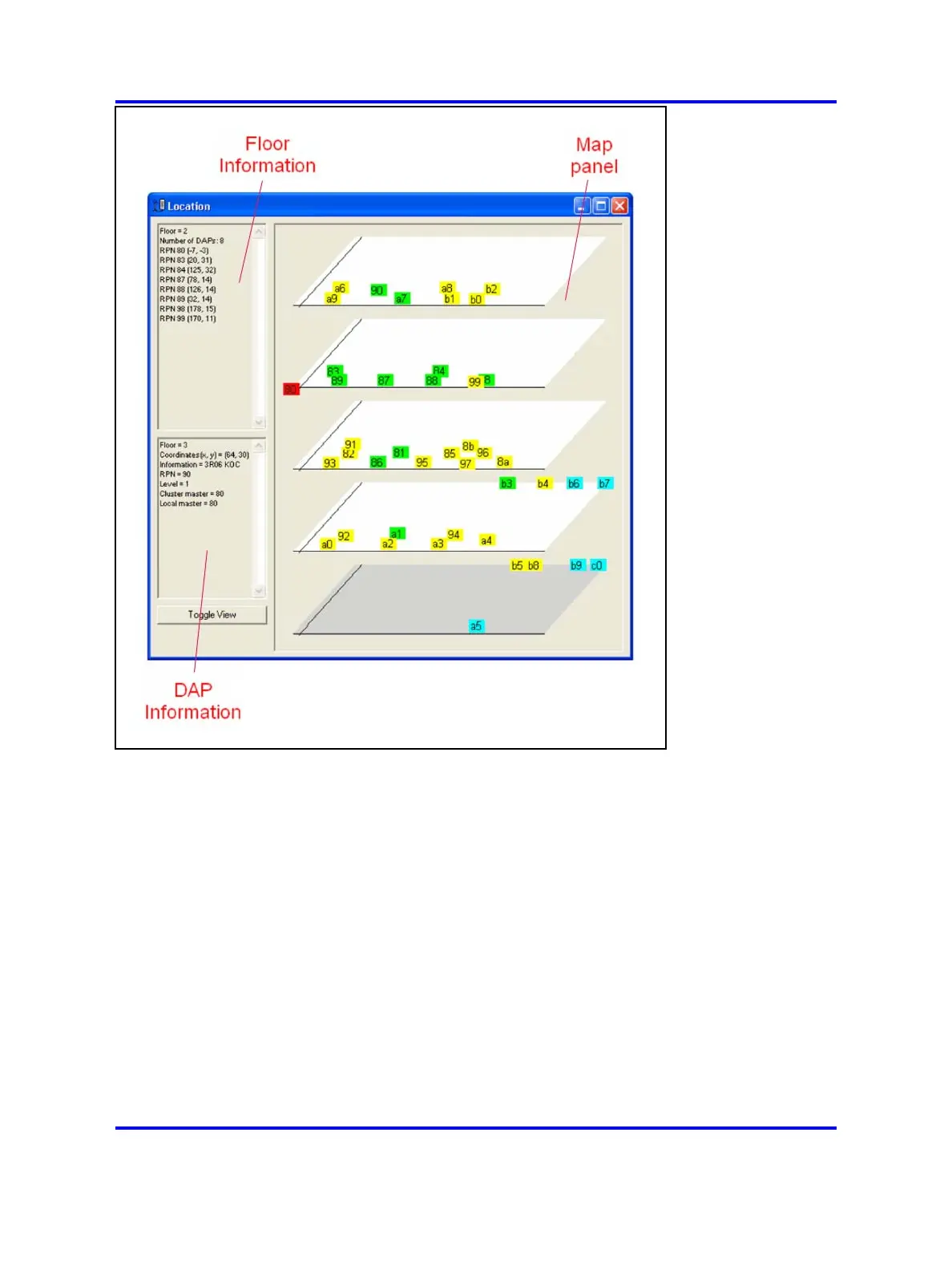

On the Location page, the color used to display each DAP indicates its
synchronization level, as follows.
• Red = root level
• Green = first level
• Yellow = second level
After the location information is loaded into the tool from a file a Location
file, the DAP positions are shown on each floor. Select a floor, or an
individual DAP, and information appears to the left of the selection.
After a DAP is selected, other DAPs that the selected DAP can
communicate with change color, and the corresponding node in the tree
view is highlighted.
The following controls are available.
Nortel Communication Server 1000
SIP DECT Fundamentals
NN43120-123 01.07
6 January 2009
Copyright © 2008-2009 Nortel Networks
.
