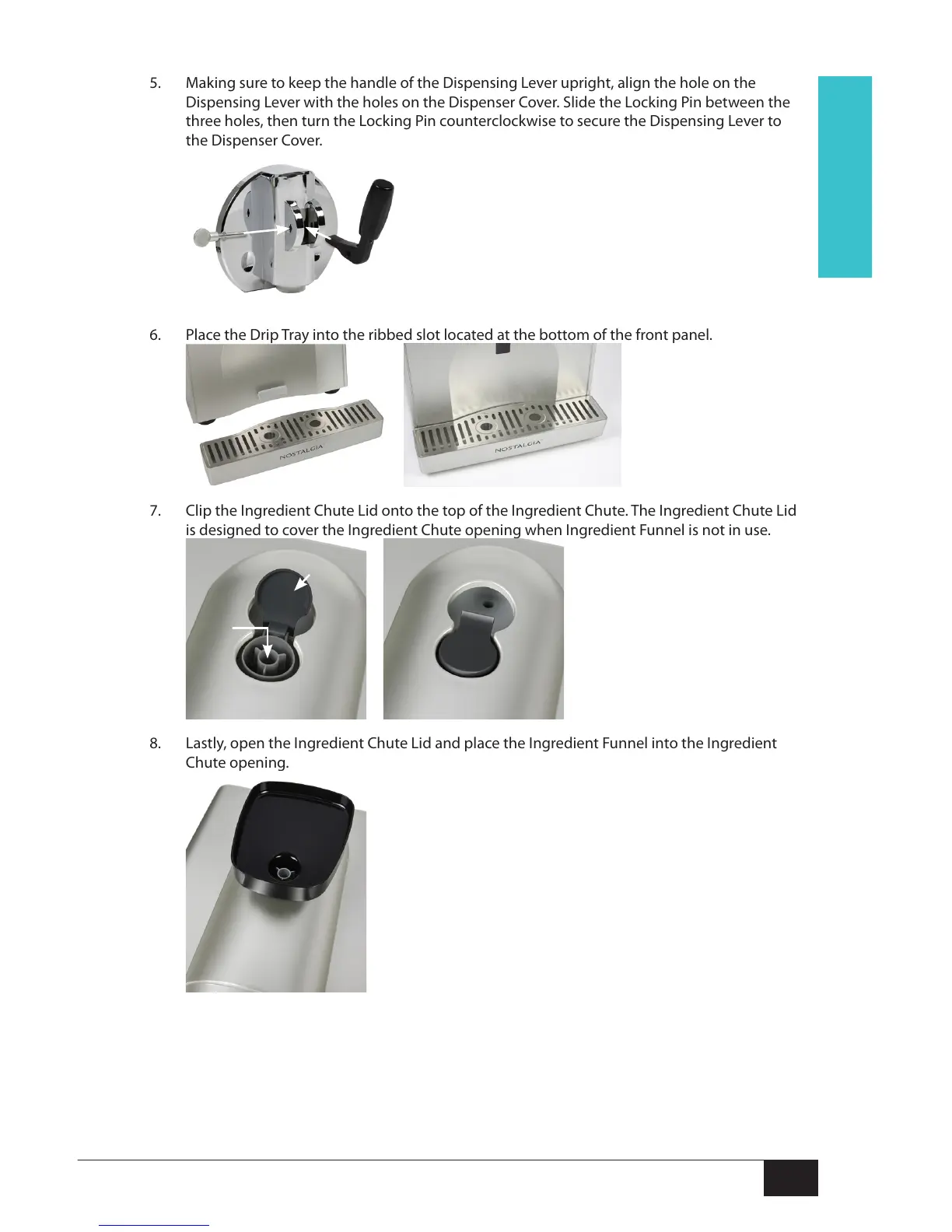

5. Making sure to keep the handle of the Dispensing Lever upright, align the hole on the
Dispensing Lever with the holes on the Dispenser Cover. Slide the Locking Pin between the
three holes, then turn the Locking Pin counterclockwise to secure the Dispensing Lever to
the Dispenser Cover.
6. Place the Drip Tray into the ribbed slot located at the bottom of the front panel.
7. Clip the Ingredient Chute Lid onto the top of the Ingredient Chute. The Ingredient Chute Lid
is designed to cover the Ingredient Chute opening when Ingredient Funnel is not in use.
8. Lastly, open the Ingredient Chute Lid and place the Ingredient Funnel into the Ingredient
Chute opening.
