ENGLISH
7

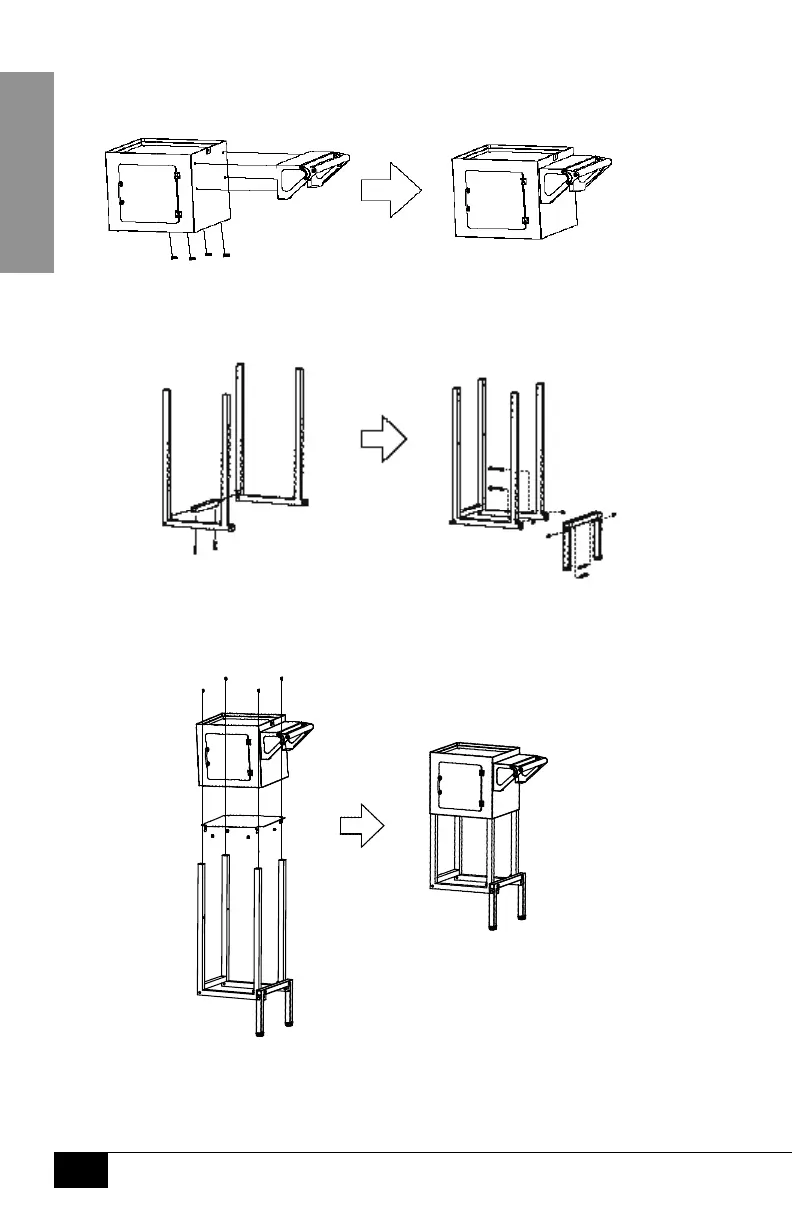

1. Attach Push Handle (E) from inside Storage Compartment (C) using supplied #1 Screws.
2. Insert Cross Bar (K) into the square inserts on the inside of Base Support
(I) and secure from below with two #2 Screws. Insert the Leg Assembly
(L) over the protruding ends of the Base Support (I) and fasten from the
inside of Base Support (I) using four #4 Bolts, and four #7 Nut Caps.
3. Secure Bottom Plate (J) to Base Support (I) using four #2 Screws.
4. Assemble Base Support (I) into the bottom of the Storage
Compartment (C) and secure with four #3 Bolts.
Assembly of Base Support
1.
