6 NOVA KOOL FRIDGE/FREEZER INSTALLATION & REPAIR MANUAL NOVA KOOL FRIDGE/FREEZER INSTALLATION & REPAIR MANUAL 3
Operation (continued)
The condenser is located
behind the refrigerator and
can be cleaned by using a bot-
tle brush and brushing verti-
cally from top to bottom on
the face of the condenser. An
alternative method is to vac-
uum the condenser.

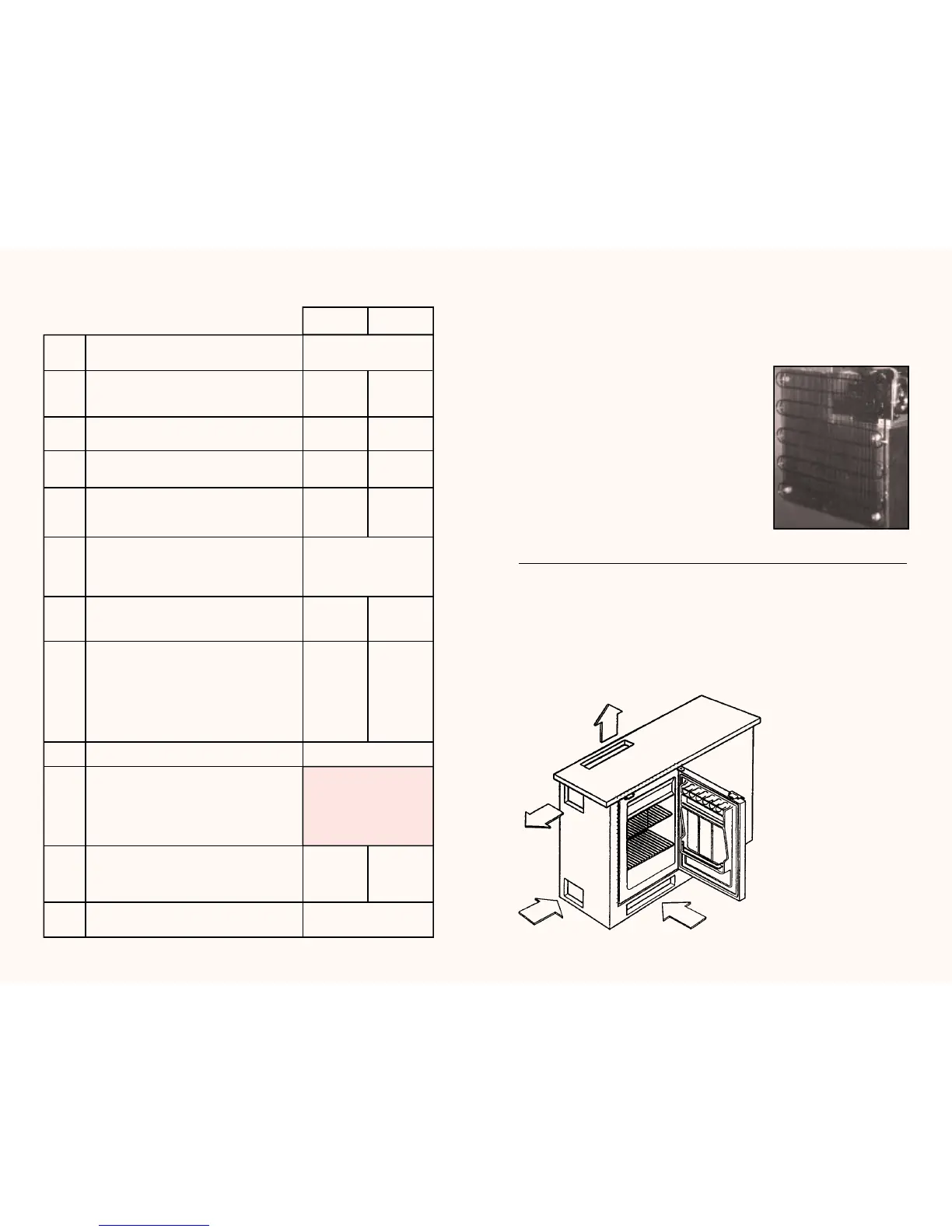

Ventilation
All refrigerators, regardless of the make, are heat-
transfer machines. They transfer the heat from the inside
of the fridge to the outside of the fridge. If adequate ven-
tilation is provided, the compressor will operate more
efficiently, and use less
power.
The minimum total area
required for ventilation
openings depends on the
size of the fridge. All single
door Nova Kools require 60
square inches of total venti-
lation area. It is recom-
mended that the vents are
located at the bottom (30
square inches) and the top
of the fridge (30 square
inches); this supports the
natural convection of heat
from cold (bottom) to warm
(top).
Condenser at back of fridge
Trouble-Shooting Guide
YES NO
1
Turn power on and turn thermostat to
“7” position
Go To 2
2
Is the compressor running? (put your
hand on top to feel slight vibration to be
sure).
Go To 14 Go To 3
3
DC Breaker is in the “on” position &
optional fuse is good?
Go To 5 Go To 4
4
Replace fuse or turn breaker “on”. Does
fuse or breaker blow?
Go To 6 Go To 5
5
Check voltage at the refrigerator “+” &
“-” terminals on the black module. Is it
over 12 VDC?
Go To 7
Go To 6
Go To 17
on AC/DC
models
6
Check batteries, wiring and connections
to the refrigerator for fault, corrosion,
proper wire sizing and correct the
problem.
Go To 1
7
Put a jumper wire between terminals
“C” & “T”. Is the compressor running
now?
Go To 11 Go To 8
8
Disconnect power. Remove electronic
module (philips screw beside terminal
designation label will require removal).
Disconnect the plug. Measure resistance
(ohms) between each of the three
compressor terminal pins. Is the
measured resistance APPROXIMATELY
the same?
Go To 9 Go To 10
9
Replace Electronic Module. Go To 1
10
Have compressor replaced by qualified
appliance technician who has the ability
to evacuate and recharge the system.
This is seldom necessary so please be
sure and if possible contact Nova Kool
for further instruction beforehand.
11
Check wiring to thermostat with ohm
meter to ensure there is continuity. (No
broken or damaged wires or
connectors). Is the wiring okay?
Go To 13 Go To 12
12
Disconnect power. Repair or replace
wiring as necessary
Go To 1
To Next Page
