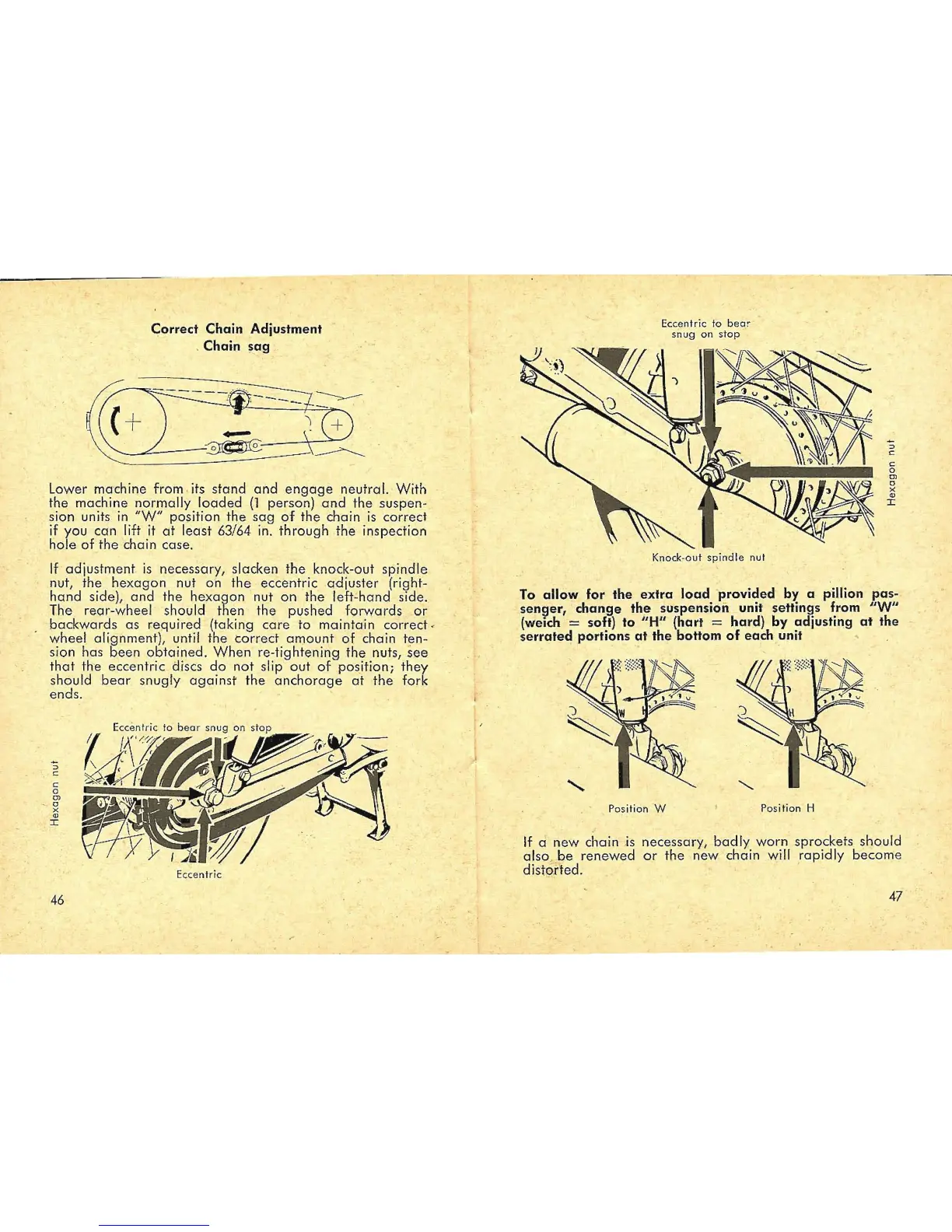

Correct Chain Adjustment
,Chain ~ag
Lower machine from- its stand and engage neutral. With
the machine normally
loaded (1 person) and the suspen-
sion units
in "W" position the sag of the chain is correct
if you can lift it at least 63/64 in. through the inspection
hole
of the chain case.
If adjustment is necessary, slacken the knock-out spindle
nut, the hexagon nut on the eccentric adjuster (right-
hand side), and the hexagon nut on the leftchand side.
The
rear-wheel should then the pushed forwards or
backwards as required (taking care to maintain correct <
wheel alignment), until the Correct amount of chain ten-
sion has
been obtained. When re-tightening the nuts, see
that the eccentric discs do not slip out of position; they
should bear snugly against the anchorage at the fork
ends.
Eccentric
:>
c:
c:
o
rn
_ 0
x
I:
"
46
--.,
Knock-out spindle nul
Eccenlric
-to beor
snug on stop
"';
c:
c:
o
rn
o
x
I:
"
To allow for the extra load provided by a pillion pas-
senger, change the suspension unit settings from
"W"
(weich = soft) to "H" (hart = hard) by adjusting at the
serrated portions
at the bottom of each unit
Position W
Position H
If a new chain ,is necessary, badly worn sprockets should
also,be renewed or the new chain will ,rapidly become
diste.fted.
47
