NSU Supermax - Page 40

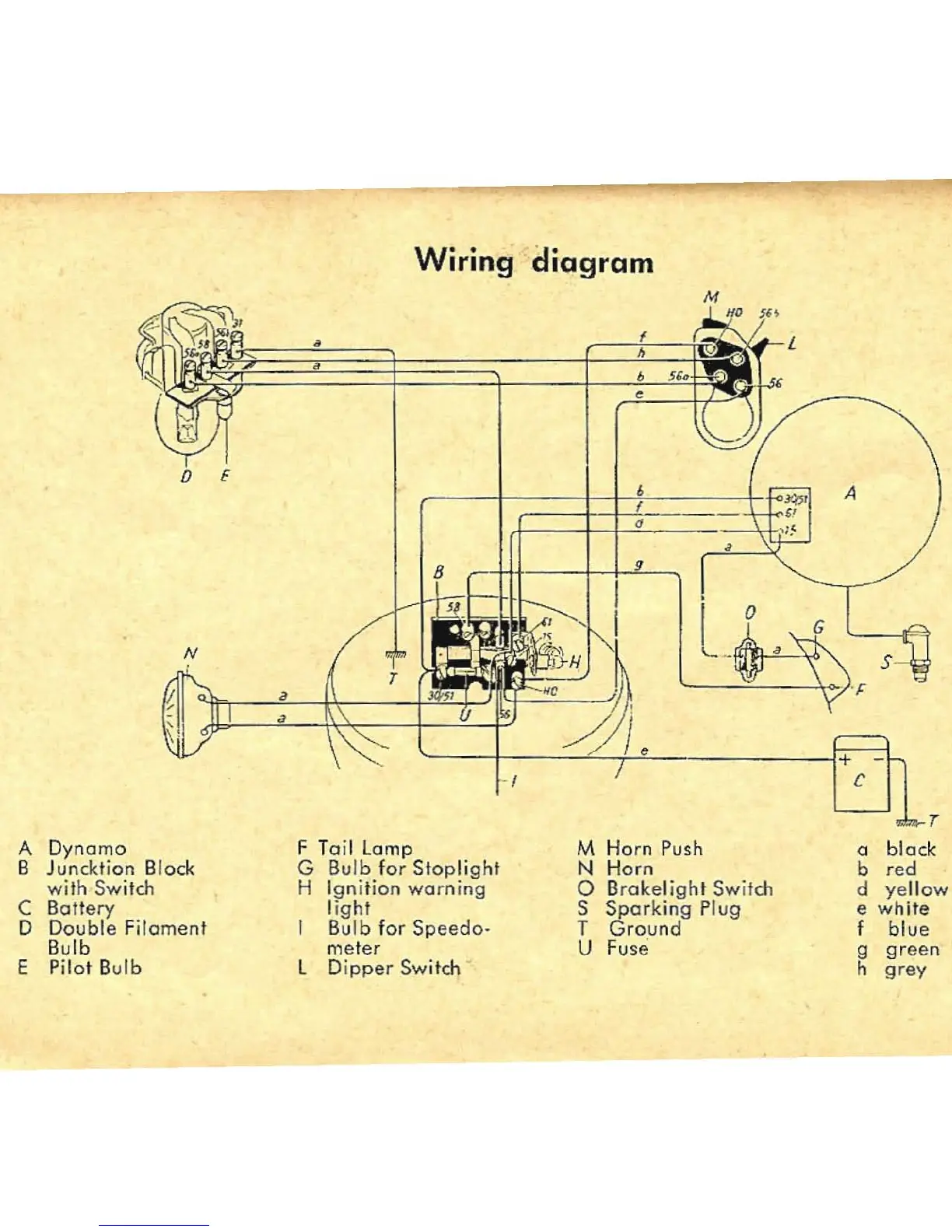

Wiring diagram
f
h
o E
A
Dynamo F Tail Lamp M Horn Push
a black
B Juncktion Black G Bulb for Stoplight N Horn
b
red
with Switch
H Ignition warning
o Brakelight Switch
d
yellow
C
Battery light
S Sparking Plug
e white
D Double Filament Bulb for Speedo-
T Ground f
blue
~
Bulb
meter U Fuse
g green
E
Pilot Bulb Dipper Switch
h grey
