This document describes the NUARL N6 mini series of completely wireless earphones, providing a comprehensive user guide in Japanese, English, and Traditional Chinese.

Function Description

The NUARL N6 mini series are true wireless earphones designed for a comfortable and versatile listening experience. They feature an "Ambient Mode" that allows users to hear surrounding sounds through the microphone, enhancing situational awareness. The earphones are equipped with a microphone for calls, supporting cVc NC (Clear Voice Capture Noise Cancellation) for improved call clarity. The device is designed for easy pairing with smartphones and other Bluetooth-enabled devices, with automatic power on/off functionality when placed in or removed from the charging case.

Important Technical Specifications

Driver: Φ6mm PTT Diaphragm NUARL DRIVER[N6]V3
Frequency Response: 20~20,000Hz
Power:
- Earbuds: 3.7V/50mAh Li-Po Battery
- Charger Case: 3.7V/400mAh Li-Po Battery
Continuous Play Time (Max): 8 hours (SBC/AAC) / 5.5 hours (aptX)
Total Play Time (Max): 32 hours (with Charger Case)
Charging Time (Min): 1.5 hours
Bluetooth Specification: Version5.0/Class2/Multi-Pairing(4)
Bluetooth Codec: aptX, AAC, SBC
Bluetooth Profile: A2DP, HFP, HSP, AVRCP
Bluetooth Passkey: 0000
Microphone: cVc NC/Ambient sound combined use x 2
Waterproof Level: IPX7 (Earbuds only; charging case is not waterproof)
Operation Temperature: 5~50°C
Accessories: Charger Case, Charging Cable, Ear pieces (4 sizes), User's Guide
Certifications: R210-142301(JP) / FCC ID: 2ARGT-NUARLN6MINI(USA)

Usage Features

Getting Started:

Remove Insulating Sheet: Before first use, remove the insulating sheet from the back of the earbuds.
Charging: Connect the supplied Type C USB cable to the charging case and a USB AC adapter or PC. The earbuds' LED will light orange during charging and turn off when complete. The charging case's battery indicator LEDs will show the charge level.
Power On/Off: Earbuds automatically power off when placed in the charging case and power on when removed. Note that this automatic function may not work if the charging case battery is low.

Pairing:

First Time Use:
1. Turn on Bluetooth on your mobile device.
2. Power on both earbuds.
3. Select "NUARL N6 mini" from the discovered device list.
4. Click "Pair" on your phone.
Re-pairing or Pairing with a Second Device:
1. Turn on Bluetooth on your mobile device.
2. If the earbuds are not connected to any device, the LED indicator will blink alternately in white and orange after 6 seconds.
3. Select "NUARL N6 mini" from the discovered device list.
4. Click "Pair" on your phone.

Button Operations (Tap Area):

Power ON/OFF: Long press 2 seconds (L/R)
Play/Pause: 1 Tap (L)
Next Track: Long press 1 second (R)
Previous Track: Long press 1 second (L)
Volume Up: 2 Tap (L)
Volume Down: 2 Tap (R)
Answer Call: 1 Tap (L/R)
Hang Up: 1 Tap (L/R)
Reject Call: Long press 2 seconds (L/R)
Ambient Mode ON/OFF: Long Press 1 second without Music play (R)
Siri/GA Start: Long Press 1 second without Music play (L)
- Note: Some functions may not work depending on the app used.

LED Indicators:

Power ON: White 1 Second
Charging: Orange
Disconnected: White 2 times each 3 Seconds
Connected: White 1 time each 7 Seconds
Music Play/Talking: No Flash
Low Battery: Orange 1 time each 3 Seconds
Pairing: Flashing White and Orange

Maintenance Features

Waterproof Performance: The earbuds are IPX7 waterproof, meaning they can withstand sudden rain or sweat. However, they are not designed for submersion. After getting wet, wipe them completely dry with a soft cloth. Do not store them in the charging case while wet, as the charging case is not waterproof.
Cleaning: The earbuds can be washed with room temperature tap water. After washing, ensure all moisture is wiped off with a soft cloth.
Troubleshooting: The manual provides solutions for common issues such as:
- No sound from one earbud (restart earbud).
- Continuous white LED blinking on one earbud (reset by placing in case, holding for 10 seconds, double tapping, then re-pairing).
- Bluetooth connection dropped (delete device from Bluetooth list and re-pair).
- L/R earbud pairing dropped (restart both earbuds).
- Earbuds not turning off/on automatically when placed in/removed from case (manual operation required if case battery is low).
Battery Management: The charging case's battery level is indicated by LEDs when the earbuds are removed. Regular charging of the case is recommended to ensure proper functionality, including automatic power on/off.
Warranty and Repair: The product comes with a 1-year warranty from the date of purchase. Warranty service is valid only in the country of purchase. For specific repair inquiries, contact the store where the product was purchased. For lost earbuds, a paid replacement service may be available via the NUARL official online store. Additional accessories like charging cases and cables can also be purchased from the NUARL official online store.

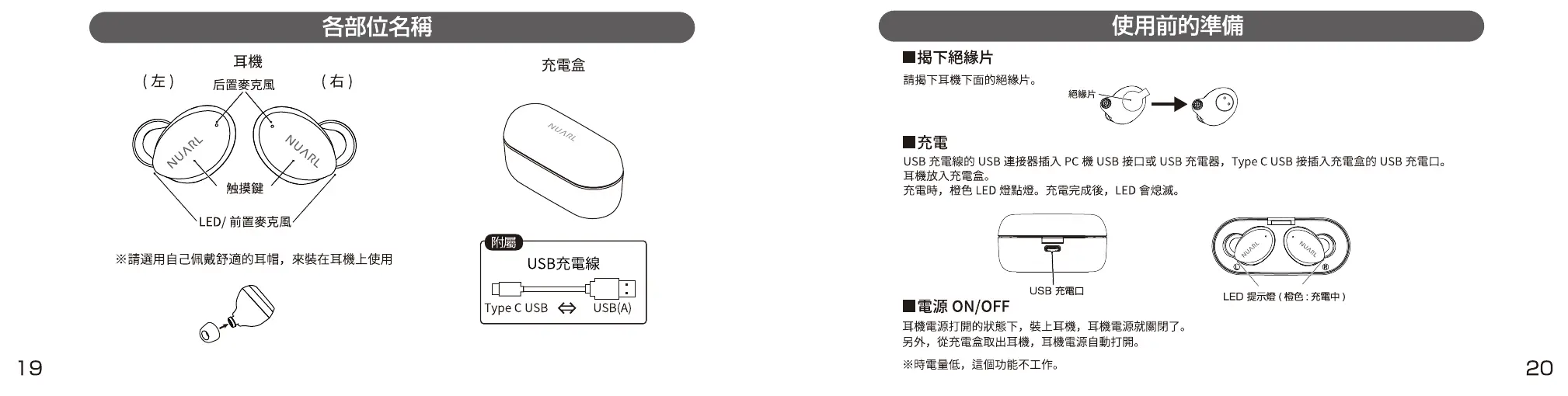

NUARL N6 mini - Product Diagram and Initial Setup; Earbud and Charging Case Anatomy; Remove Insulating Sheet; Battery Charging Process
