NIBBLE 0x3 Assembly Instructions Rev03 10.22.20

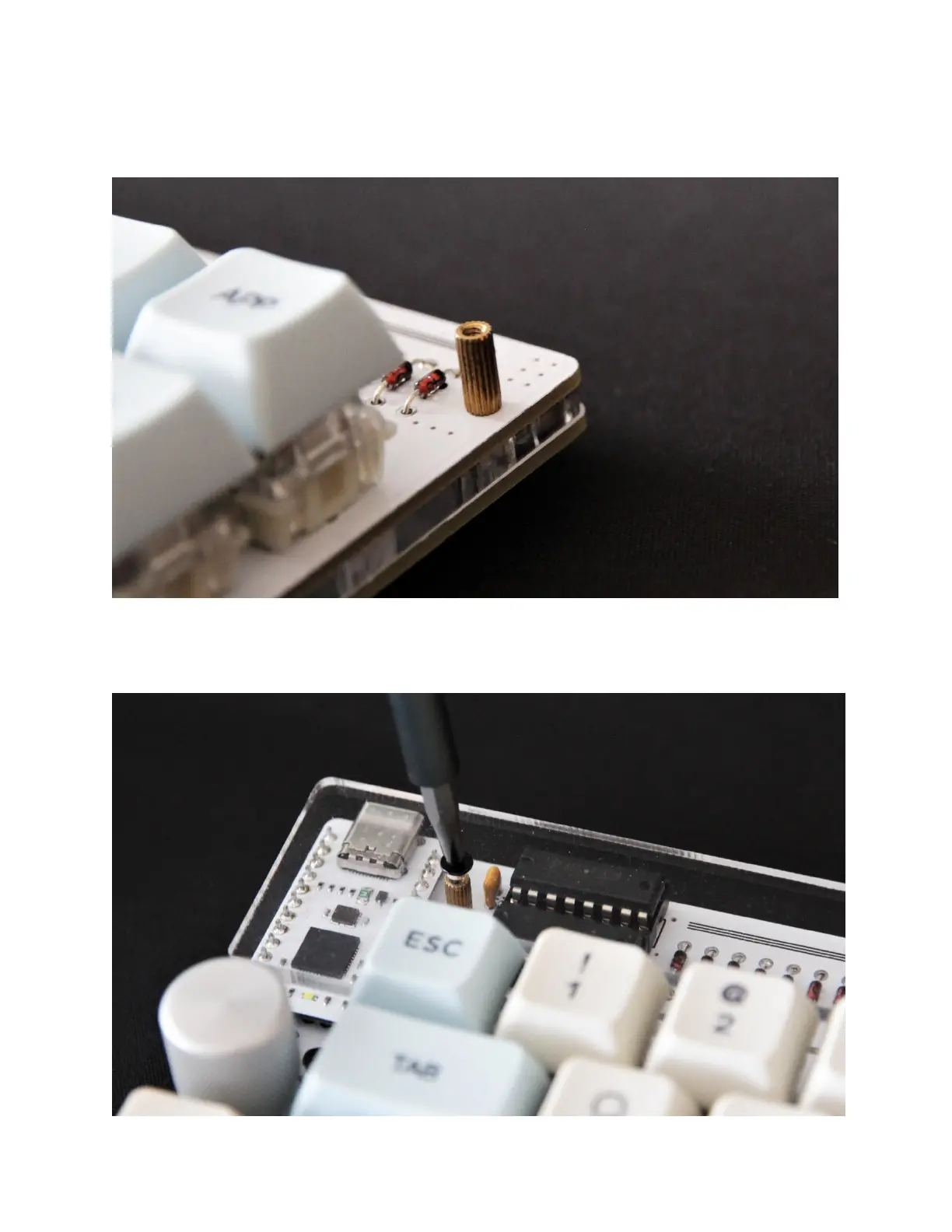

2.18 FASTEN M2X10 STANDOFFS FROM BOTTOM USING M2X10 SCREWS
Fasten using 2 M2x10 screws. Use pliers to hold the standoff steady while tightening the screw.
2.19 ATTACH THE TOP GUARD USING M2X6 SCREWS
Fasten using 2 M2x6 screws. Don’t overtighten these, as it can crack the top guard.
