DISASSEMBLY PROCEDURES

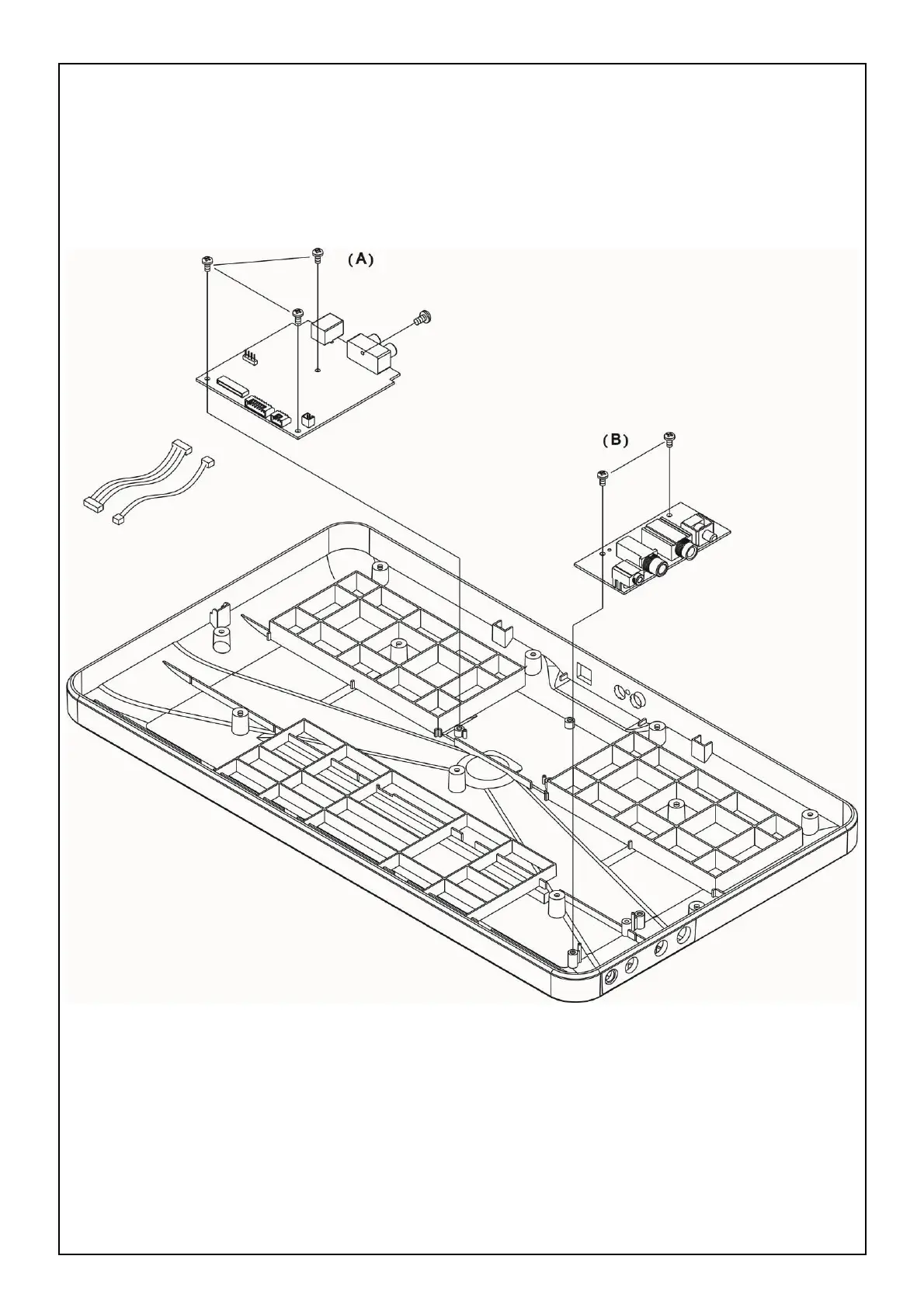

3. REMOVAL I/O AND SB PCB ASS'Y. (Fig3)
(A) TAKE OUT THE 4 PCS SCREWS AND 2 PCS CONNECTORS BEFORE TAKE OUT THE I/O PCB ASS'Y.
(B) TAKE OUT THE 2 PCS SCREWS BEFORE TAKE OUT THE SB PCB ASS'Y.
Fig.3
