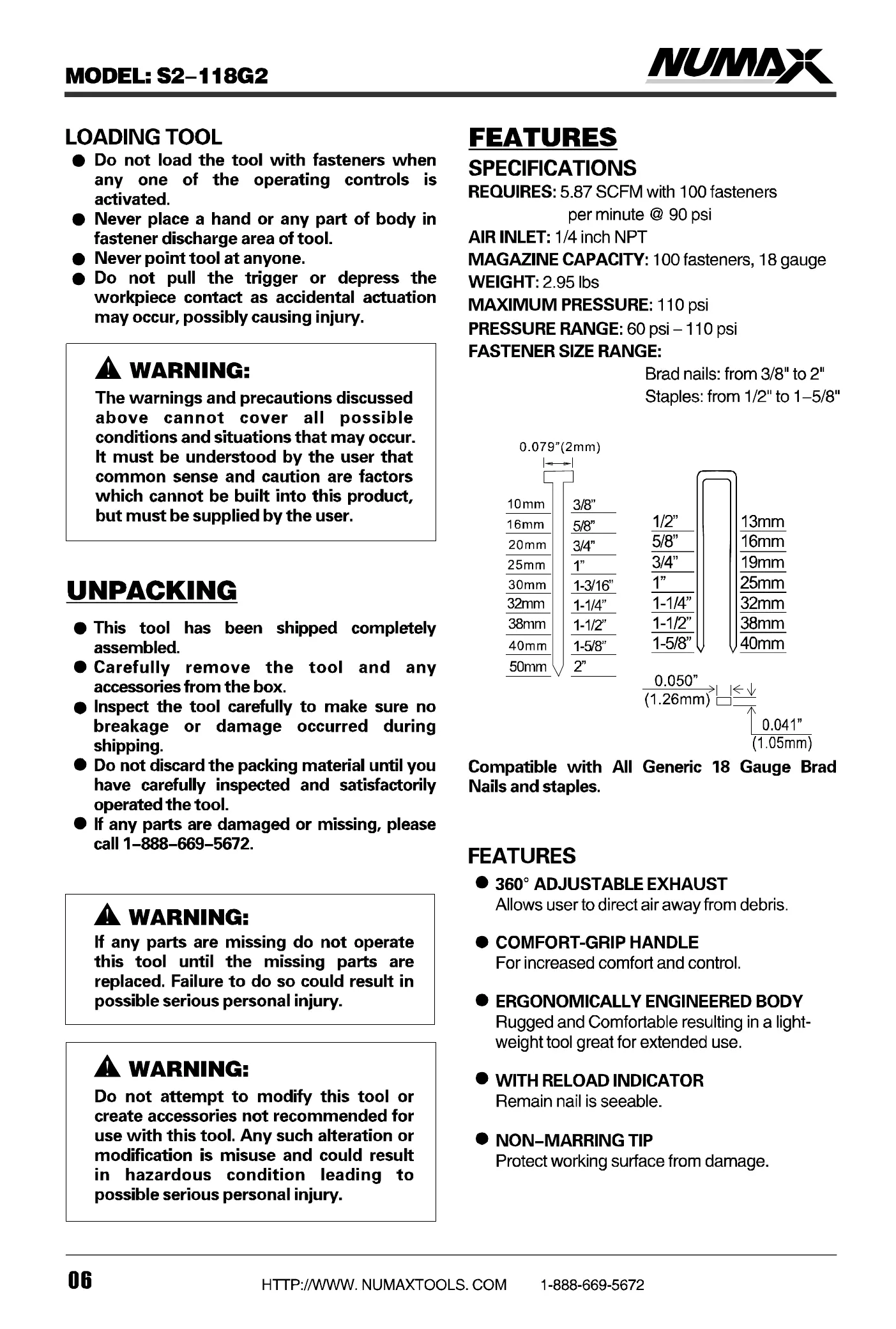

MODEL: S2-118G2
LOADING TOOL
Do not load the tool with fasteners when
any one of the operating controls is
activated.
Never place a hand or any part of body in
fastener discharge area of tool.
Never point tool at anyone.
Do not pull the trigger or depress the
workpiece contact as accidental actuation
may occur, possibly causing injury.
A WARNING:
The warnings and precautions discussed
above cannot cover all possible
conditions and situations that may occur.
tt must be understood by the user that
common sense and caution are factors
which cannot be built into this product,
but must be supplied by the user.
UNPACKING
This tool has been shipped completely
assembled.
Carefully remove the tool and any
accessories from the box.
Inspect the tool carefully to make sure no
breakage or damage occurred during
shipping.
Do not discard the packing material until you
have carefully inspected and satisfactorily
operated the tool.
If any parts are damaged or missing, please
call 1-888-669-5672.
A WARNING:
If any parts are missing do not operate
this tool until the missing parts are
replaced. Failure to do so could result in
possible serious personal injury.
A WARNING:
Do not attempt to modify this tool or
create accessories not recommended for
use with this tool. Any such alteration or
modification is misuse and could result
in hazardous condition leading to
possible serious personal injury.
FEATURES
SPECIFICATIONS
REQUIRES: 5.87 SCFM with 100 fasteners
per minute @ 90 psi
AIR INLET: 1/4 inch NPT
MAGAZINE CAPACITY: 100 fasteners, 18 gauge
WEIGHT: 2.95 lbs
MAXIMUM PRESSURE: 110 psi
PRESSURE RANGE: 60 psi -110 psi
FASTENER SIZE RANGE:
Brad nails: from 3/8' to 2"
Staples: from 1/2" to 1—5/8"
MODEL: S2-118G2
OPERATION
ADJUSTING THE EXHAUST
The adjustable exhaust on the cap of the tool allows
users to direct the exhaust according to operator
preference. To adjust the direction, turn the exhaust
cap in the desired direction.
o
o
o
o
10mm
16mm
20 mm
25mm
30mm
32mm
38mm
40m m
50mm
3/8"
518"
1-3/16'
1-1/4'
1-1/2'
1-5/8'
2"
All
1/2'
5/8"
1-1/4"
1-1/2"
1-5/8"
0.050"
(1.26mm)
Generic 18
13mm
16mm
19mm
25m m
32mm
38mm
40mrn
0.041"
(I .05mm)
Gauge Brad
LOADING FASTENERS
I. Connect the tool to the air resource.
2. Push down on the latch button(B). Pull back on
the magazine cover(C).
3. For brad nail: Insert a stick of fasteners into the
magazine rail(D).Make sure the pointed ends of
the fasteners are resting on the bottom ledge of
the magazine when loading.
4. For staples: set a stick of fasteners on the top of
magazine.
5 .Make sure the fasteners are not dirty or
damaged.
6 .Push the magazine cover(C) forward until latch
Compatible with
Nails and staples.
FEATURES
button pops up.
Latch button
(B)
Brad nail Loading way:
Magazine
cover(C)
e 3600 ADJUSTABLE EXHAUST
Allows user to direct air away from debris.
COMFORT-GRIP HANDLE
For increased comfort and control.
• ERGONOMICALLY ENGINEERED BODY
Rugged and Comfortable resulting in a light-
weight tool great for extended use.
• WITH RELOAD INDICATOR
Remain nail is seeable.
NON-MARRING TIP
Protect working surface from damage.
Staples Loading way:
Staples
A WARNING:
The tool may fire when it is first
connected to the air resource. Always
connect the tool to the air resource
before loading fasteners to prevent injury
from unintended cycling. Always make
sure the tool's magazine is empty at the
beginning of each work session. before
connecting to an air resource.
A WARNING:
Use only those fasteners recommended
for use with this tool. Fasteners not
identified for use with this tool by the tool
manufacturer are able to result in a risk of
injury to persons or tool damage when
used in this tool.
A WARNING:
Keep the tool pointed away from yourself
and others when loading fasteners.
Failure to do so could result in possible
serious personal injury.
A WARNING:
Never load fasteners with the workpiece
contact or trigger activated. Doing so
could result in possible serious personal
injury.
Nail tips contact
wear rail
P sh Magazine
Againstrail(D)
nose
06
