MODEL: SFL618
Compatible With Generic 1/2 inch Staples, T-
Cleats & L-Cleats.
FEATURES
O REVOLUTIONARY 3 IN 1 DESIGN.
For use with Staples, T-Cleats and L-Cleats.
O NO-MAR DESIGN
Provides increased protection from marring
when working with a finished flooring surface.
ERGONOMICALLY DESIGNED HANDLE.
For ease of operation and reduced fatigue.
DURABLE CONSTRUCTION.
Light weight and durably constructed of high-
O strength aluminum and heat treated steel parts.
MALLET INCLUDED.
OPERATION
PREPARE THE TOOL
The tool is shipped with the Arm part detached from
NL.ounÄ
Figure 2
Four Nuts
Four Washers
Two Brackets
Arm Part
NOTE:
Make sure all items listed above in the picture are
included in the package, if not, call 1-888-669-5672.
Follow these instructions to prepare the tool for
using.
1. Set the Arm against the Handle and slide the
Brackets through the Arm holes slots and
holes. Thread Washers and Nuts over ends of
brackets.( See figure 3)
2. Wrench—tighten the Nuts until Brackets are
secured and the Arm is locked against Handle.(
See figure 4)
Figure 3
the Main body part.
Figure 1
06
Handle
Main body part
MODEL: SFL618
Figure 4
Prepared Flooring Nailer
A WARNING:
If any parts are missing, do not operate
this tool until the missing parts are
replaced. Before using this tool, make
sure the arm part and the main body part
are screwed together tightly. Failure to
do so could result in possible serious
personal injury.

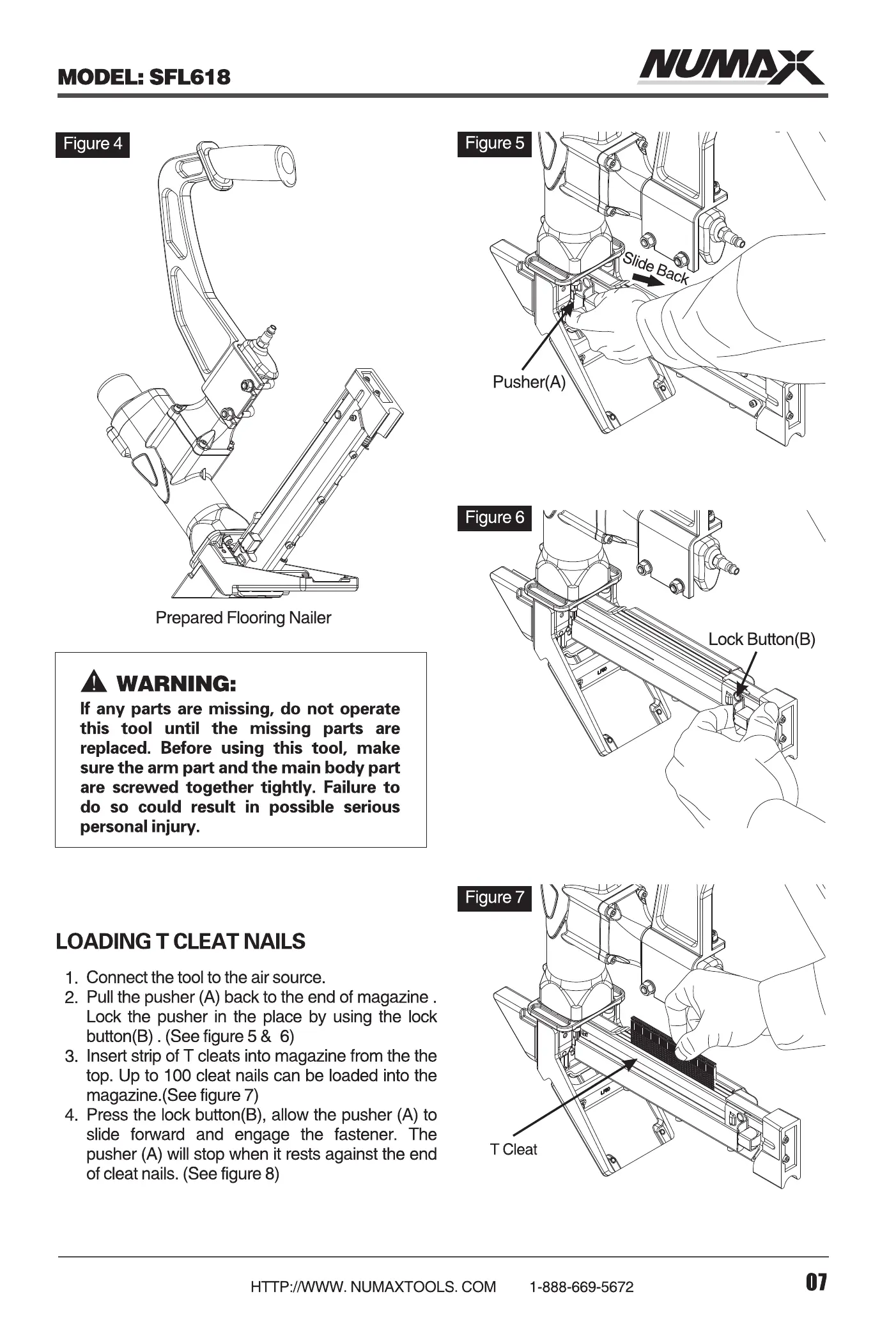

LOADING T CLEAT NAILS
Figure 5
Pusher(A)
Figure 6
Figure 7
T Cleat
Bracket
Washer
1-888-669-5672
2.
3.
4.
Connect the tool to the air source.
Pull the pusher (A) back to the end of magazine .
Lock the pusher in the place by using the lock
button(B) . (See figure 5 & 6)
Insert strip of T cleats into magazine from the the
top. Up to 100 cleat nails can be loaded into the
magazine.(See figure 7)
Press the lock button(B), allow the pusher (A) to
slide fomard and engage the fastener. The
pusher (A) will stop when it rests against the end
of cleat nails. (See figure 8)
