MODEL: SFL618
Figure 8 Figure 10
NL.ounÄ
L Cleat
T Cleat
LOADING L CLEAT NAILS
I. Connect the tool to the air source.
2. Pull the pusher (A) back to the end of magazine
. Lock the pusher in the place by using the lock
button(B) . (See figure 5 & 6)
3. Insert strip of L cleats into magazine from the
the top. Up to 100 cleat nails can be loaded into
the magazine. Noted that , when loading the L
cleats, the side with the L head should be in the
left of the magazine. (See figure 9)
4. Press the lock button(B), allow the pusher (A) to
slide forward and engage the fastener. The
pusher (A) will stop when it rests against the
end of cleat nails. (See figure 10)
MODEL: SFL618
Figure 12
Figure 13
Lock Button(B)
LOADING STAPLES
. Connect the tool to the air source.
Pull the pusher (A) back to the end of magazine
2.
. Lock the pusher in the place by using the lock
button (B). (See figure 5 & 6)
3.
Insert a full clip of 1/2 in. crown staples into
magazine from the top. You can load up to 120
pieces into the magazine.(See figure 11)
4.
Press the lock button(B), allow the pusher (A) to
slide forward and engage the staples. The
pusher (A) will stop when it rests against the
end of staples. (See figure 12 &13)
Figure 11
Figure 9
L Cleat
08
A WARNING:
The tool may fire when it first connected
to the air source. Always connect the tool
to the air source before loading fasteners
to prevent injury from unintended
cycling. Always make sure the tool's
magazine is empty at the beginning of
each work session, before connecting to
an air source.
A WARNING:
Only use those fasteners recommended
for use with this tool. Fasteners not
identified for use with this tool by the tool
manufacturer can result in a risk of injury
to persons or tool damage when used in
this tool.

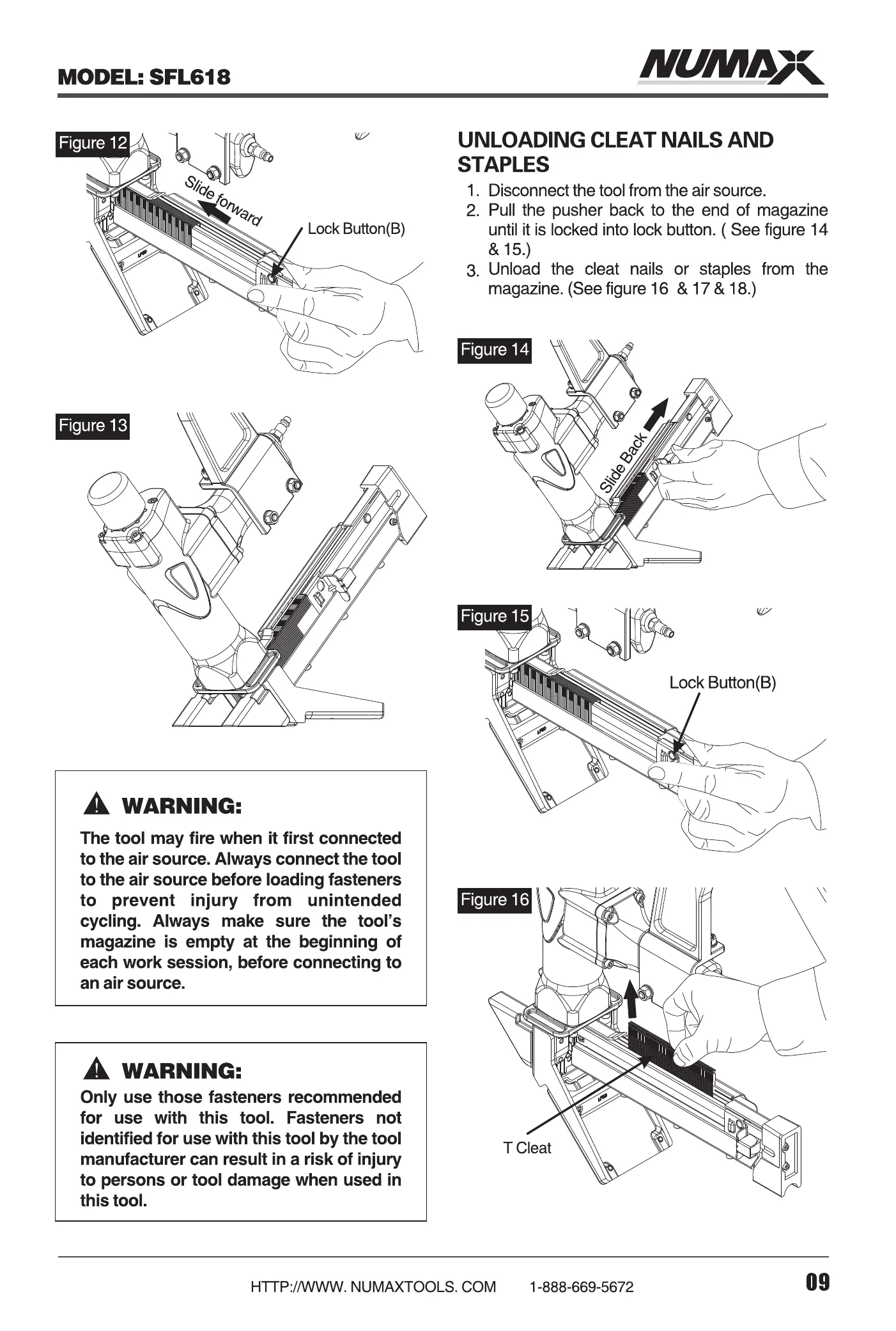

UNLOADING CLEAT NAILS AND
STAPLES
I. Disconnect the tool from the air source.
2. Pull the pusher back to the end of magazine
until it is locked into lock button. ( See figure 14
& 15.)
3. Unload the cleat nails or staples from the
magazine. (See figure 16 & 17 & 18.)
Figure 14
Figure 15
Lock Button(B)
Figure 16
T Cleat
HTTP://WWW. NUMAXTOOLS. COM
Staple
1-888-669-5672
HTTP://WWW. NUMAXTOOLS. COM
1-888-669-5672
09
