NuTone 157 User Manual

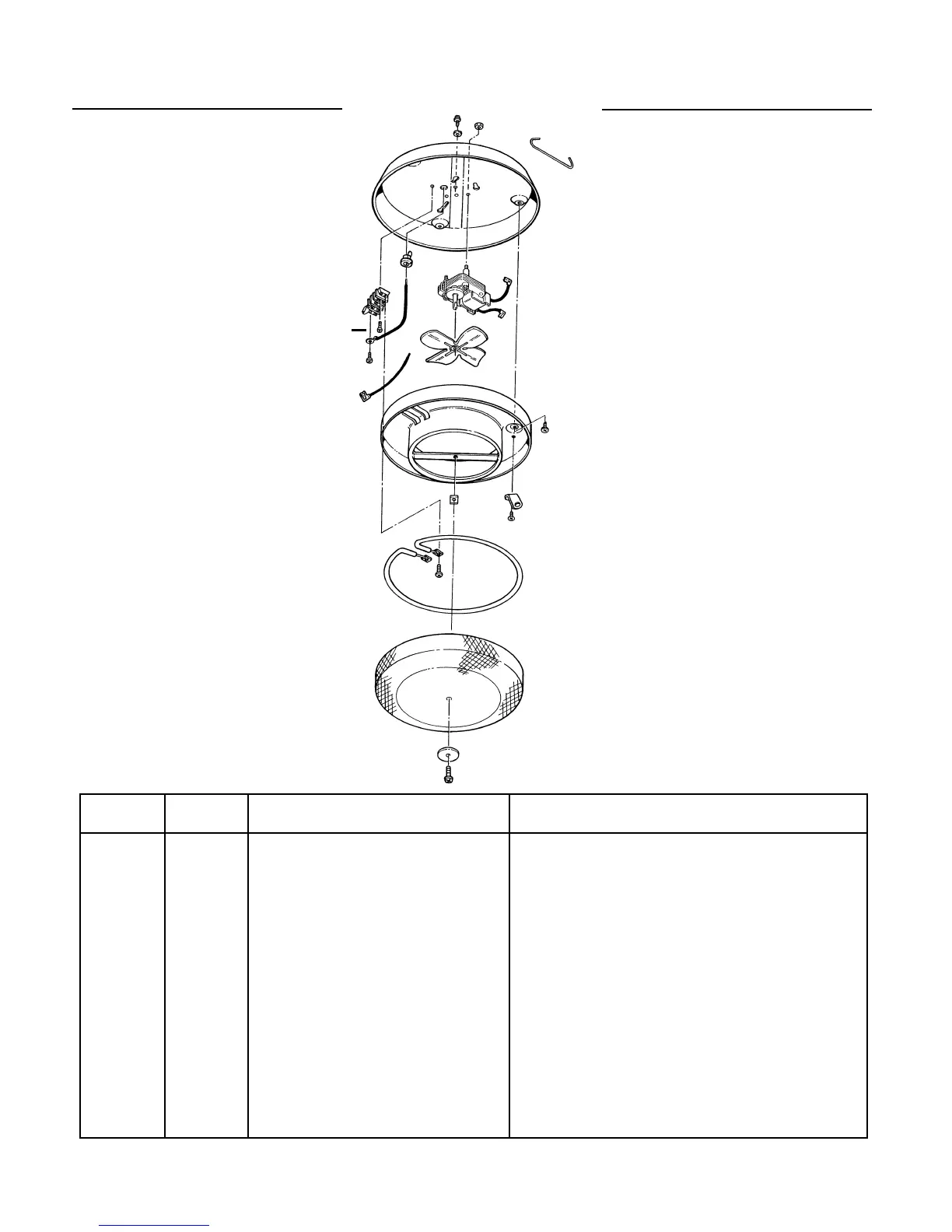

SERVICE PARTS
MODEL 157
PIEZAS DE SERVICIO
MODELO 157
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
99042185F
➘➘
➘➘
➘
20
➘➘
➘➘
➘
5
2
➘➘
➘➘
➘
➘➘
➘➘
➘
1
➙➙
➙➙
➙
3
➙➙
➙➙
➙
7
➙➙
➙➙
➙9
➙➙
➙➙
➙21
➙➙
➙➙
➙
➙➙
➙➙
➙
6
8
➙➙
➙➙
➙
11
➙➙
➙➙
➙
12
➙➙
➙➙
➙
10
➙➙
➙➙
➙
13
➙➙
➙➙
➙
14
➙➙
➙➙
➙
15
➙➙
➙➙
➙
4
➙➙
➙➙
➙
16
➙➙
➙➙
➙
17
➙➙
➙➙
➙
18
➙➙
➙➙
➙
19
➙➙
➙➙
➙
9
➙➙
➙➙
➙
14
Encargue piezas de servicio por "NO. PIEZ" -no por
"NO. CODIGO".
Order replacement parts by "PART NO." - NOT by KEY NO."
KEY NO. PART NO.
NO. CODIGO NO. PIEZ DESCRIPTION DESCRIPION
1 99150611 Green Ground Screw, #8B-18 x 3/8" Hex Hd. Tornillo Verde Tierra #8B-18 x 3/8" Cabeza Hexagonal
2 04200-14 #8-32 Hex Nut w/serrated Washer (2 Req.) #8-32 Tuerca Hexagonal con Arandela Estriada (Necesita 2)
3 05100-13 Cup Washer Arandela Acopada
4 04126-00 #8B Sheet Metal Nut - "U" Type #8B Tuerca de Chapa - En "U"
5 98008740 Ceiling Pan Collar de Techo
6 02159-00 Bushing Buje
7 99270721 Terminal Block Bloque Terminal
8 02144-01 Black Wire Assembly Haz de Alambres Negros
9 99160313 #6-32 x ¼" Pan Hd. Mach. Screw (4 Req.) #6-32 x ¼" Tornillo para Metales de Cabeza Chata (Necesita4)
10 99150527 #8B-18 x ½" PH Pan Hd. Screw #8B-18 x ½" PH Tornillo de Cabeza Chata
11 99080437 Motor Motor
12 06116-00 Fan Blade Aspa de Ventilador
13 98008741 Reflector Reflector
14 99150478 #8B-18 x 3/8" PH Truss Hd. Screw (6 Req.) #8B-18 x 3/8" Tornillo de Cabez Segmentada (Necesita 6)
15 98008742 Element Support (3 Req.) Soporte de Elemento (Necesita 3)
16 99270744 Element Elemento
17 25045-00 Grille Rejilla
18 99090680 Nameplate Plaquita
19 99150491 #8B-18 x 3/8" Phillips Pan Hd. Screw #8B-18 x 3/8" Tornillo de Cabez Chata Phillips
20 06317-00 Installation Hook Gancho para Instalación
21 97013088 White Wire Assembly Haz de Alambres Blancos
