NuTone Hampton Series

FRAMELESS CABINETS
‑
Model Mirror Frame Door Cabinet Mirror Overall Size Wall Opening
Number Front Type Type Depth Shape w h d w h d
Studio IV Recessed and Surface Mount*
S468244SS Bevel Frameless Single 4 Rectangle 15 25 5 14
1
⁄4 24 4
S468244WH Bevel Frameless Single 4 Rectangle 15 25 5 14
1
⁄4 24 4
S468344SS Bevel Frameless Single 4 Rectangle 15 35 5 14
1
⁄4 34 4
S468344WH Bevel Frameless Single 4 Rectangle 15 35 5 14
1
⁄4 34 4
All measurements are in inches.
*Surface mounting requires a Surface Mount Side Mirror Kit.
Surface Mount Side Mirror Kits
760024 (for models 24" in height)
760034 (for models 34" in height)
Gangable Attachment Kit (for joining 2 or more cabinets in a row – see below)
76GK† (for both 24" and 34" models)
†To determine the quantity of Gang Kits needed, subtract 1 from the number of cabinets to be “ganged.” When ganging
cabinets that will be surface mounted, 1 Surface Mount Side Mirror Kit is needed for each cabinet. See Example 2.
Example 1: Recess three cabinets in a row (3 cabinets - 1) = 2 Gangable Attachment Kits.
Example 2: Surface mount four cabinets in a row (4 cabinets - 1) = 3 Gangable Attachment Kits, plus 4 Surface Mount
Side Mirror Kits.

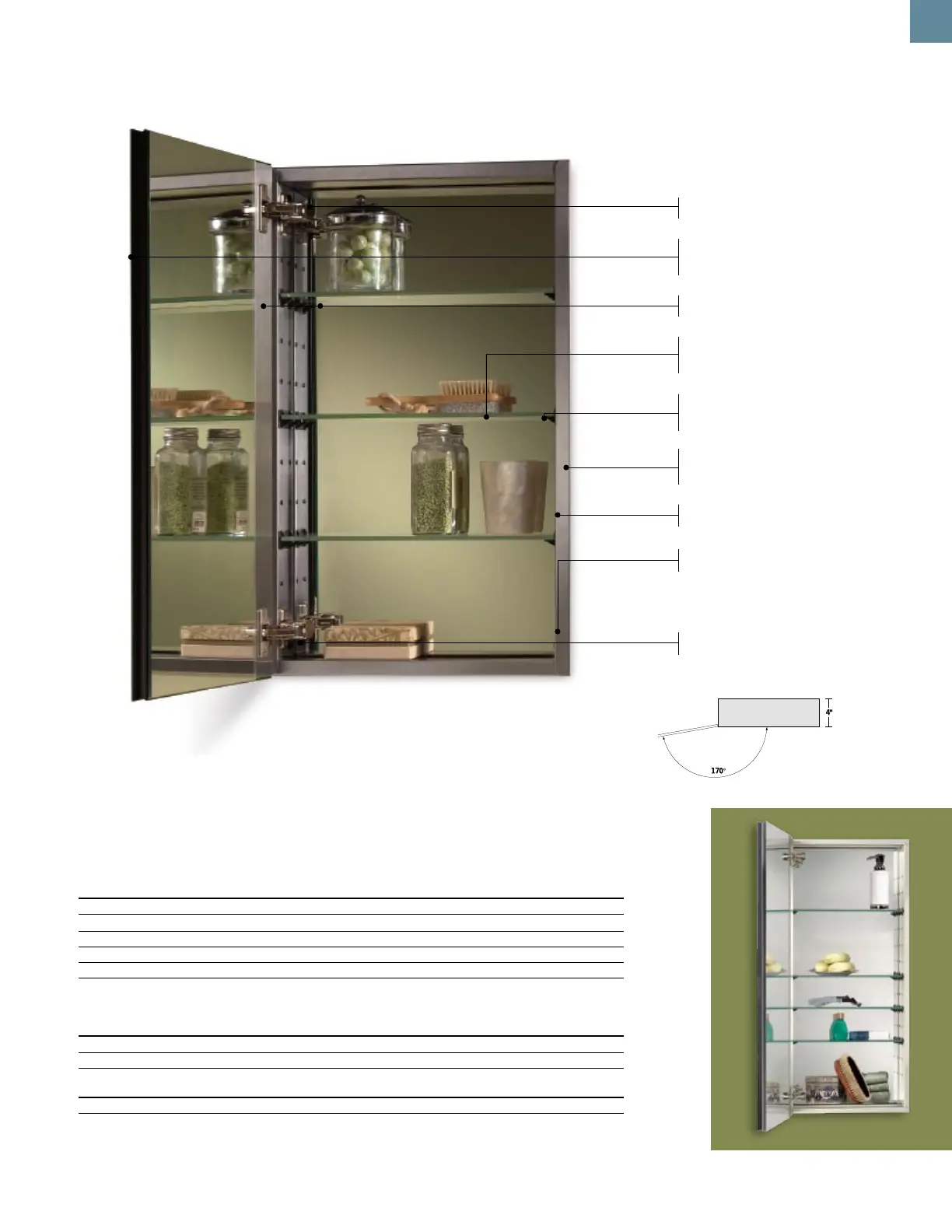

Studio IV
25" or 35" tall, in 4" depth only.
Reversible installation allows right- or left-
hand door opening, with comfort grip edge.
Exterior mirrors are premium float glass
ensuring distortion-free viewing and a rich
reflection—1" bevel.
Interior mirrors on the back of the cabinet
and the inside door add light and functionality.
1/4" thick adjustable glass shelves provide
light reflection, strength and easy cleaning.
24" models: 3 shelves, 34" models: 4 shelves.
Snap-fit shelf supports ensure glass shelves
stay in place, but can be easily removed for
cleaning.
14-1/4" wide wall openings allow for easy
retrofit installations or between studs for
new construction.
Fabricated stainless steel or durable rust-
resistant painted steel cabinet bodies.
Corner bumpers cushion the door for a soft,
quiet close.
170 degree concealed soft-close hinges
allow wide opening and smooth operation.
Shown: Studio IV S468244SS
5
Shown: Studio IV S468344SS
