INSTALLATION STEPS
For Manor System
Please read all instructions before beginning installation
1 Turn o main water supply line leading to proposed installation site.
2 Using screws provided, attach the Wall Mounting Panel horizontally (softener
must hang vertically) to wall studs through top left hole and top right hole of
Wall Mounting Panel.
3 DO NOT REMOVE the Housing Head from the Housing Body for Installation
Steps #4 through #6. After the Black Top has been re-fastened in Step #6,
the Housing Body may be removed to make
it easier to attach the L-Bracket/Housing
Head Assembly to the Mounting Panel.
4 Unscrew the Black Top of the Housing
Unit. This is held together with a single
screw in the middle.

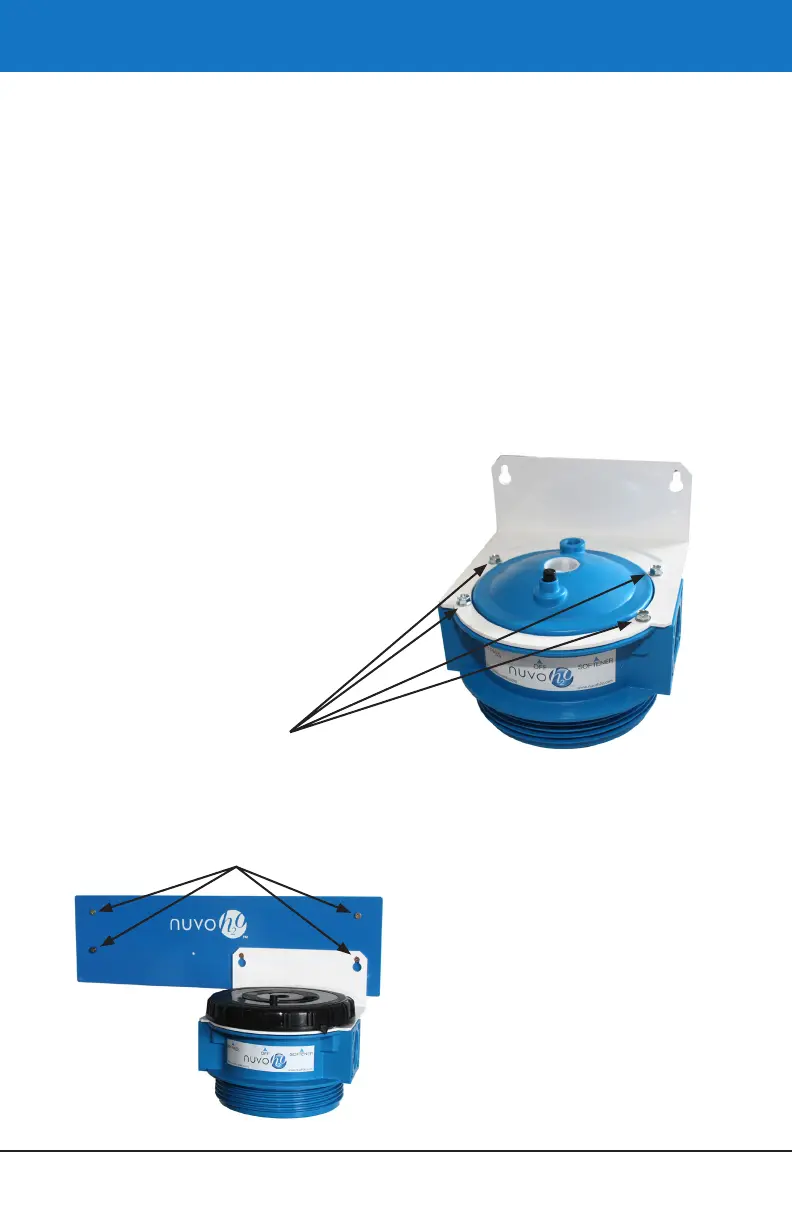

5 Attach the L-Bracket to the Housing
Head and secure it with the four
screws provided. See FIG. 1
7
Attach L-Bracket
to Housing Head
with 4 Screws.
FIG. 1
These screws must be
securely attached to stud.
FIG. 2
6 Replace the Black Top of the Housing
Unit and re-secure it with the single
screw removed in step 4.
7 Attach the L-Bracket/Housing Head
assembly horizontally to the Wall
Mounting Panel under the “Softener”
label. The right L-Bracket screw
should go through the Wall Mounting
Panel and into the wall stud.
See FIG. 2
To Next Page
