Hardware Installation

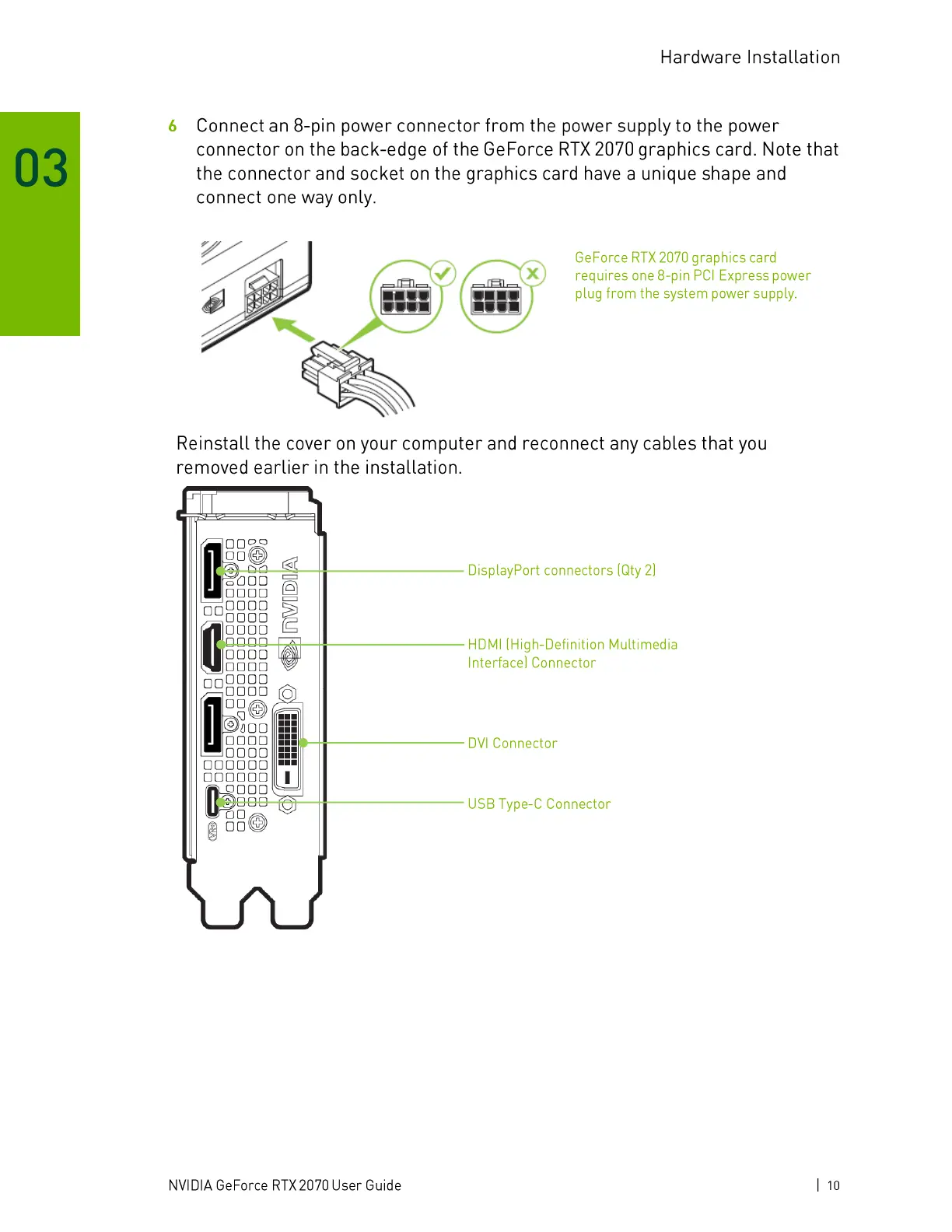

Connect an 8-pin power connector from the power supply to the power
connector on the back-edge of the GeForce RTX 2070 graphics card. Note that
the connector and socket on the graphics card have a unique shape and
connect one way only.
X
GeForce RTX 2070 graphics card
requires one 8-pin PCl Express power
plug from the system power supply.
Reinstall the cover on your computer and reconnect any cables that you
removed earlier in the installation.
00 OQ
000
0000
0000
000000
0000
oooo
0000
0000
000000
0000
+ oco
0000
000000
000000
0000
g880
6
o
1
DisplayPort connectors (Qty 2)
HDMI (High-Definition Multimedia
Interface) Connector
DVI Connector
USB Type-C Connector
NVIDIA GeForce RTX 2070 User Guide
