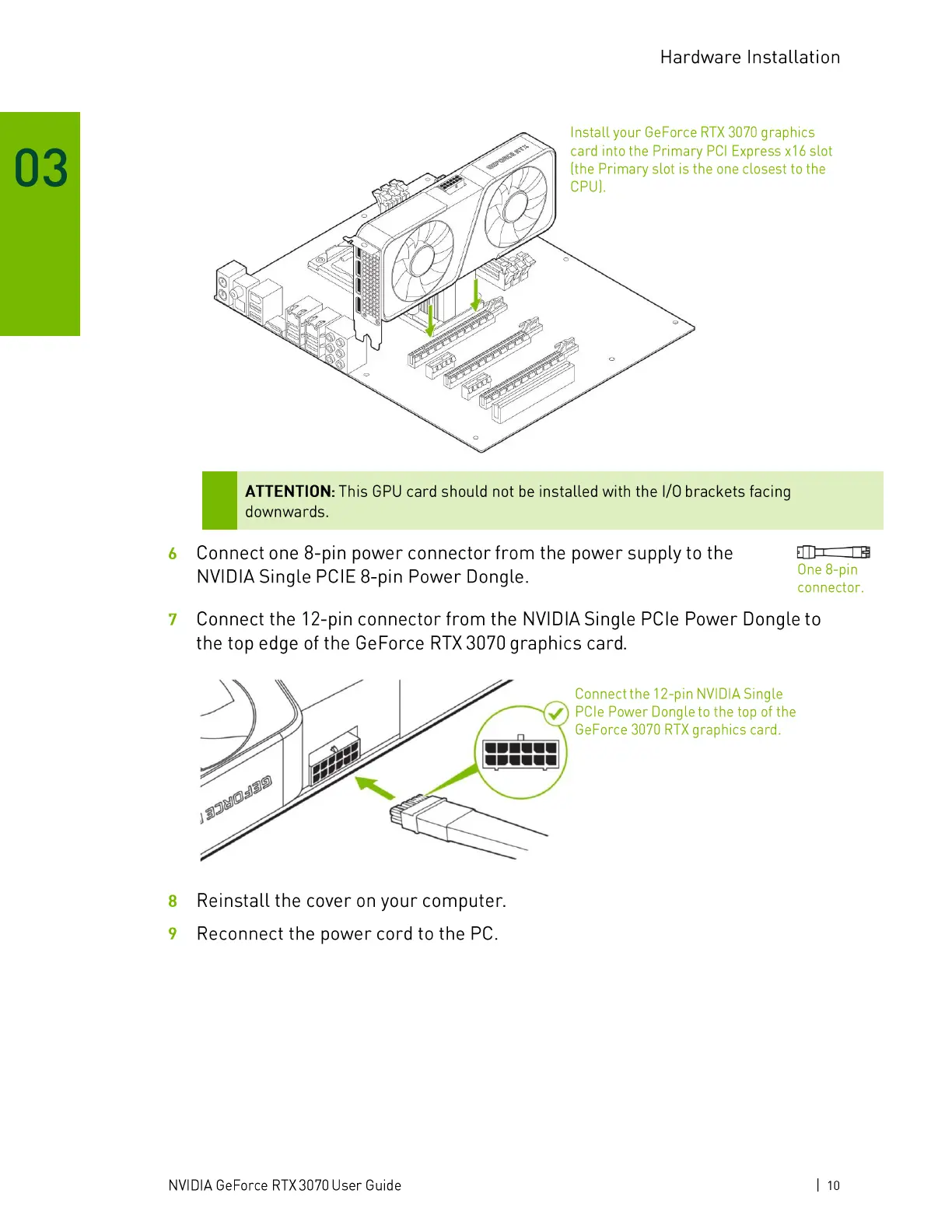

Hardware Installation
Install your GeForce RTX3070 graphics
card into the Primary PCl Express x 16 slot
(the Primary slot is the one closest to the
CPU).
: This GPUcard should not be installed with the 1/0brackets facing
ATTENTION
6
7
8
9
downwards.
Connect one 8-pin power connector from the power supply to the
NVIDIA Single PCIE 8-pin Power Dongle.
One 8-pin
connector.
Connect the 12-pin connector from the NVIDIA Single PCIe Power Dongle to
the top edge of the GeForce RTX 3070 graphics card.
Connect the 12-pin NVIDIA Single
PCIe Power Dongle to the top of the
GeForce 3070 RTX graphics card.
øøßø
Reinstall the cover on your computer.
Reconnect the power cord to the PC.
NVIDIA GeForce RTX 3070 User Guide
