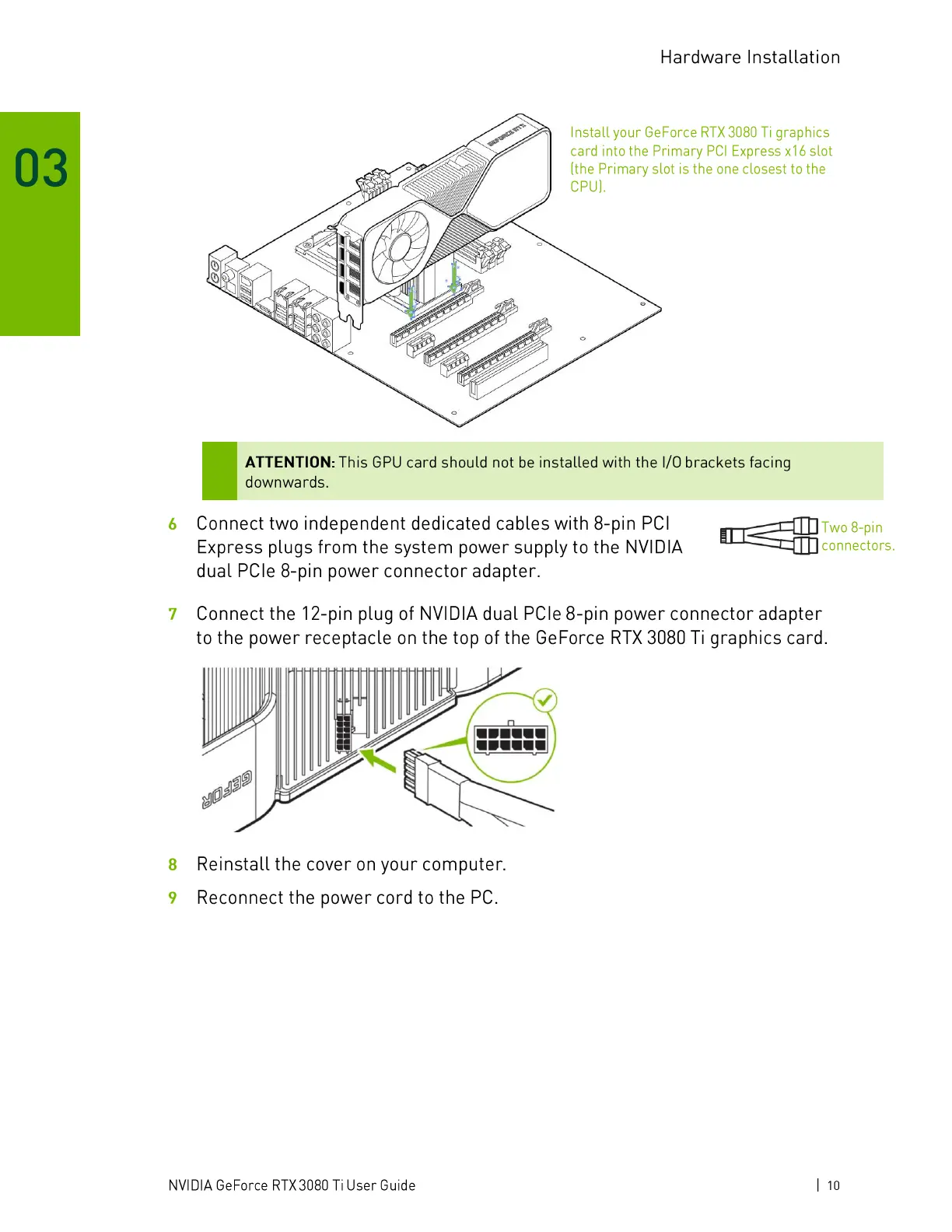

Hardware Installation
Install your GeForce RTX 3080 Ti graphics
card into the Primary PCl Express x 16 slot
(the Primary slot is the one closest to the
CPU).
: This GPUcard should not be installed with the 1/0brackets facing
ATTENTION
6
7
8
9
downwards.
Connect two independent dedicated cables with 8-pin PCl
Express plugs from the system power supply to the NVIDIA
dual PCIe 8-pin power connector adapter.
Two 8-pin
connectors.
Connect the 12-pin plug of NVIDIA dual PCIe 8-pin power connector adapter
to the power receptacle on the top of the GeForce RTX 3080 Ti graphics card.
Reinstall the cover on your computer.
Reconnect the power cord to the PC.
NVIDIA GeForce RTX 3080 Ti User Guide
