Nvidia NVS 310 User Manual

- 9 -
▪ The listbox contains all of the features you can adjust on your NVIDIA Quadro or NVS graphics board.
You can change the setting of a feature using the dropdown listbox beside the feature name. If in doubt
about a particular feature the ‘Application-controlled’ setting is your best option.

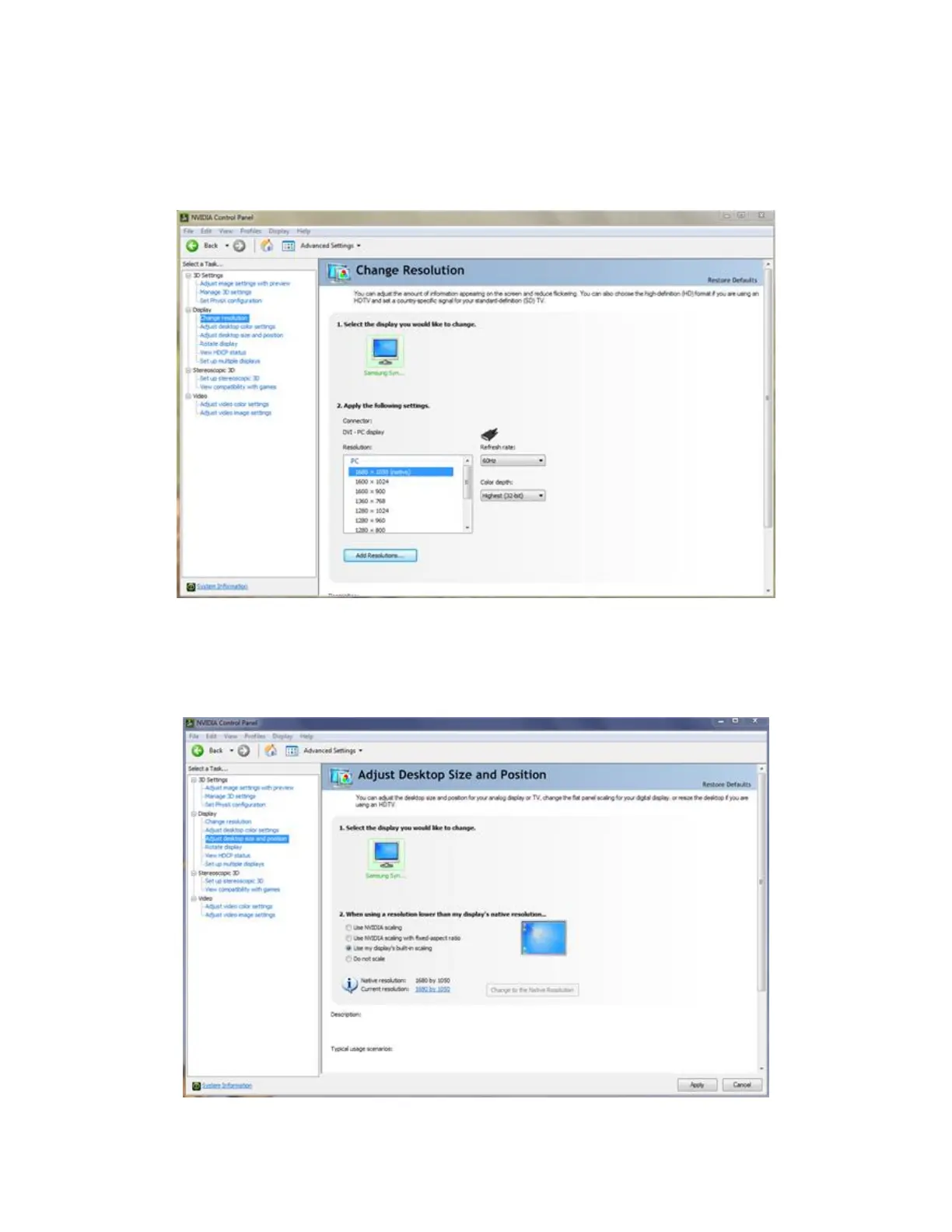

Figure 3 – Change Resolution
▪ Use this option to set the display resolution (in pixels), select a color quality setting (32-bit
recommended), and adjust the refresh rate of your display. Settings can be specified for each display
attached to your graphics board.
Figure 4 – Change Flat Panel Scaling

Nvidia NVS 310 Specifications

General

GPU Architecture	Fermi
CUDA Cores	48
Memory Size	512 MB
Memory Type	DDR3
Memory Interface	64-bit
Outputs	2x DisplayPort
DirectX Support	DirectX 11
Interface	PCI Express 2.0 x16
GPU	GF119
Memory Bandwidth	14 GB/s
Base Clock	523 MHz
Max Resolution	2560x1600
OpenGL Support	OpenGL 4.2
