Nvidia Quadro 2000 User Manual

- 9 -
▪ The listbox contains all of the features you can adjust on your NVIDIA Quadro or NVS graphics board.
You can change the setting of a feature using the dropdown listbox beside the feature name. If in doubt
about a particular feature the ‘Application-controlled’ setting is your best option.

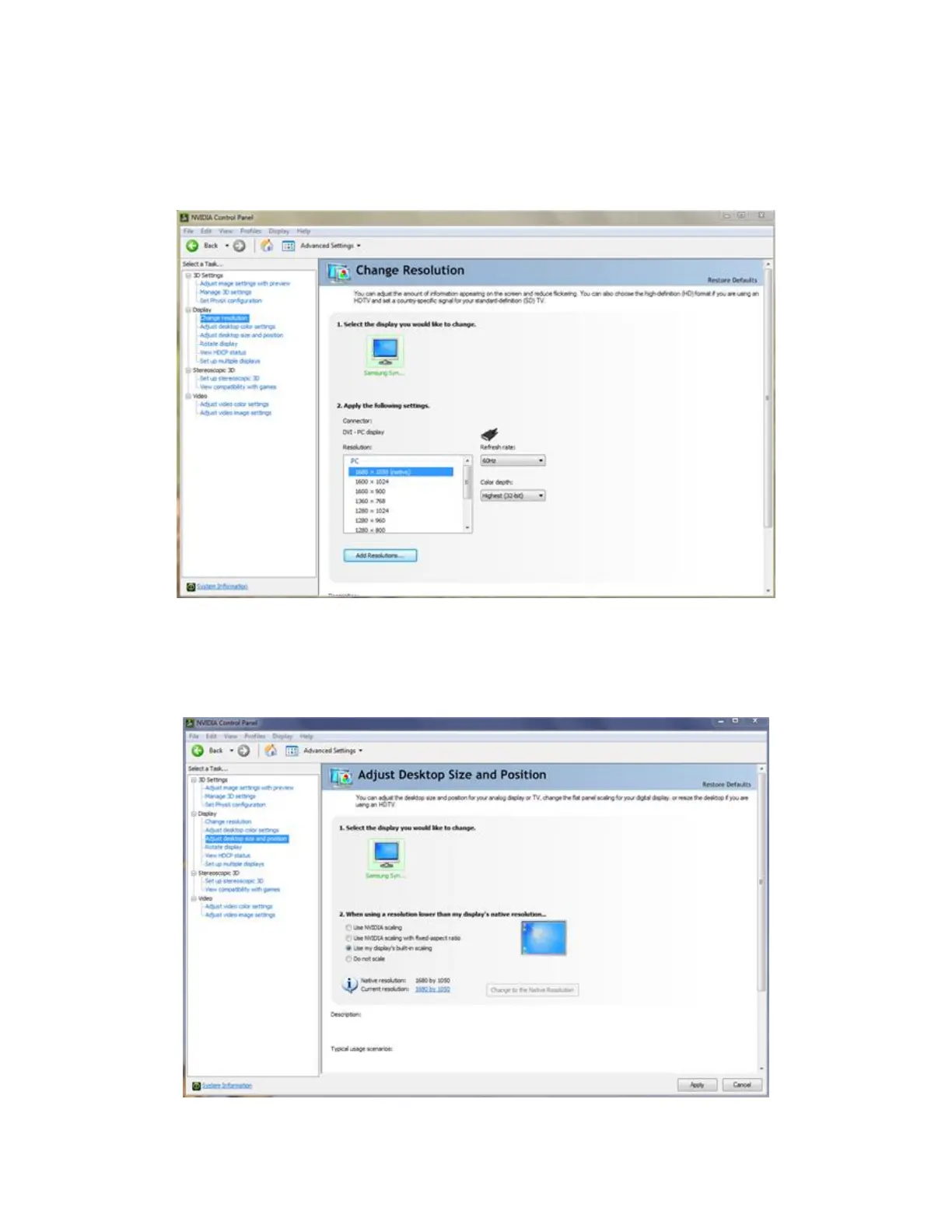

Figure 3 – Change Resolution
▪ Use this option to set the display resolution (in pixels), select a color quality setting (32-bit
recommended), and adjust the refresh rate of your display. Settings can be specified for each display
attached to your graphics board.
Figure 4 – Change Flat Panel Scaling

Nvidia Quadro 2000 Specifications

General

GPU Architecture	Fermi
CUDA Cores	192
Memory Size	1 GB GDDR5
Memory Interface	128-bit
Memory Bandwidth	41.6 GB/s
Max Power Consumption	62 W
Shader Model	5.0
OpenGL	4.1
DirectX	11
Bus Interface	PCIe 2.0 x16
Max Digital Resolution	2560x1600
Outputs	DVI-I, 2x DisplayPort
