Nvidia Quadro 5000 User Manual

- 9 -
▪ The listbox contains all of the features you can adjust on your NVIDIA Quadro or NVS graphics board.
You can change the setting of a feature using the dropdown listbox beside the feature name. If in doubt
about a particular feature the ‘Application-controlled’ setting is your best option.

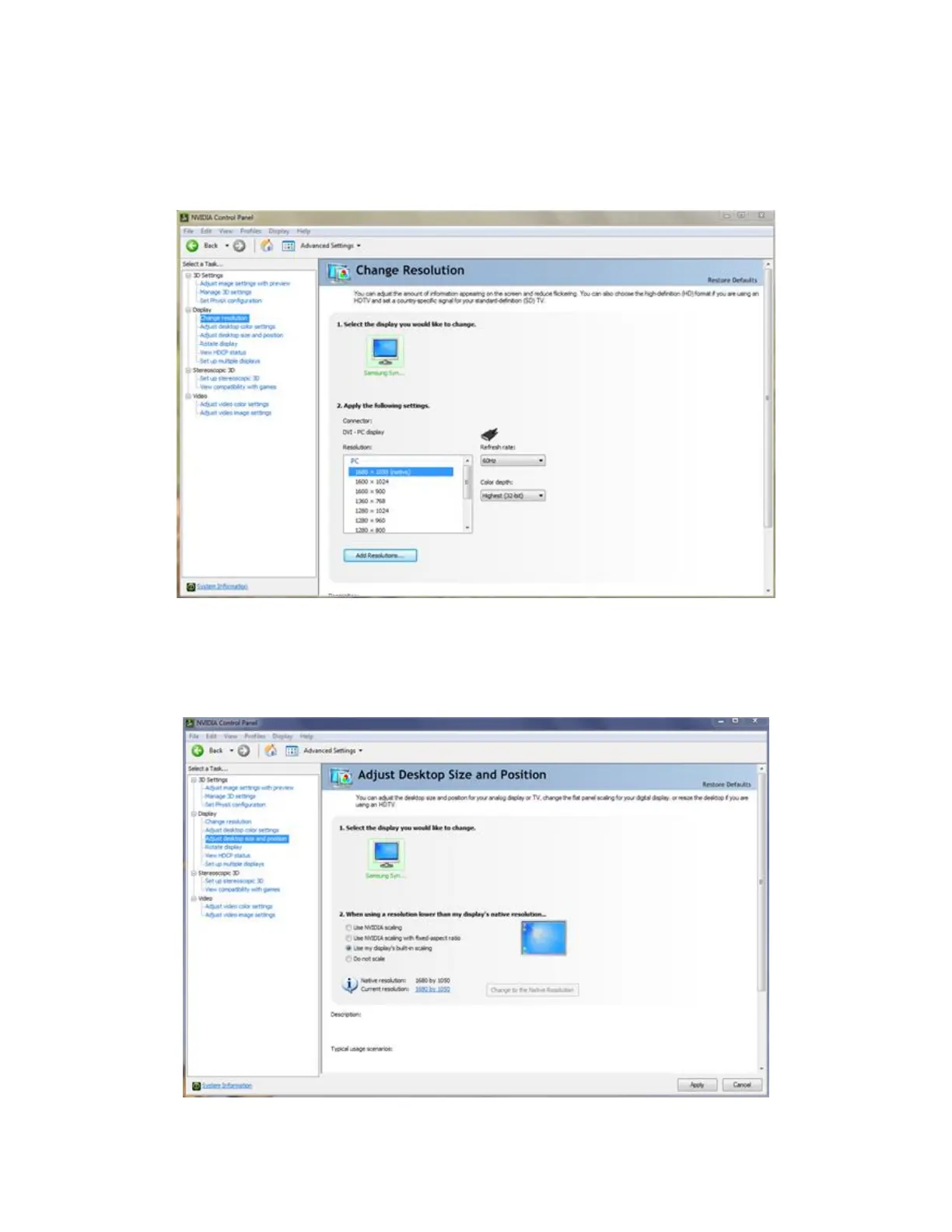

Figure 3 – Change Resolution
▪ Use this option to set the display resolution (in pixels), select a color quality setting (32-bit
recommended), and adjust the refresh rate of your display. Settings can be specified for each display
attached to your graphics board.
Figure 4 – Change Flat Panel Scaling

Nvidia Quadro 5000 Specifications

General

GPU Architecture	Fermi
GPU	GF100
CUDA Cores	352
Base Clock	513 MHz
Memory Size	2.5 GB
Memory Type	GDDR5
Memory Interface	320-bit
Memory Bandwidth	120 GB/s
Max Power Consumption	152 W
Interface	PCIe 2.0 x16
Max Resolution	2560 x 1600
Max Displays	2
DirectX Support	11
OpenGL Support	4.1
Form Factor	Dual Slot
