Nvidia RTX A6000 User Manual

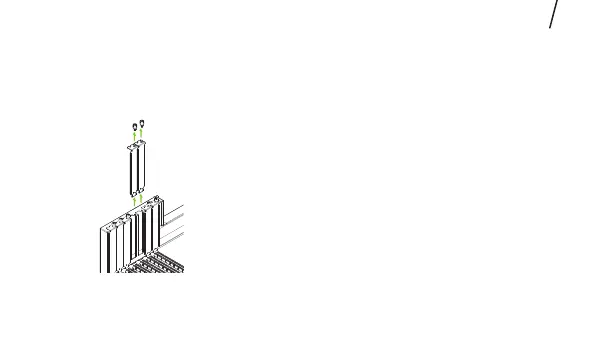

5 Remove the existing graphics card if present. If a retention
bar is holding the card in place, remove the screw securing
the card. OR, if there is no existing graphics card, remove the
access covers from the primary x16 PCI Express slot.
The RTX A6000, RTX A5000 and RTX A2000 are
dual-slot GPUs and will require removing two
adjacent slot covers. The RTX A4000 is a single
slot card and will only require a single-slot.
EN

Nvidia RTX A6000 Specifications

General

GPU Architecture	Ampere
CUDA Cores	10752
Memory Size	48 GB
Memory Type	GDDR6
Memory Interface Width	384-bit
Max Power Consumption	300 W
Display Connectors	4x DisplayPort 1.4a
Boost Clock	1860 MHz
Memory Bandwidth	768 GB/s
Interface	PCIe 4.0 x16
Tensor Cores	336
RT Cores	84
Base Clock	1410 MHz
Single Precision Performance	38.7 TFLOPS
Power Connectors	1x 8-pin
Max Resolution	7680x4320
Form Factor	Dual Slot
Supported APIs	DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.2
