Wiring Diagram for NT1006 Controller with
Photocell and Keyswitch Function.
Power:
L = Live (Brown)
N = Neutral (Blue)
E = Earth (Yellow / Green)
Motor:
L = Up / Down (Brown / Black)
R = Down / Up (Black / Brown)
E = Earth (Yellow / Green)
N = Neutral (Blue)
Photocell:
S = Stop (Black)
V = Live (Brown)
G = Blue / White (fit together)
Grey wire not used
Keyswitch:
U = UP (Brown / Blue)
D = Down (Blue / Brown)
G = 24v Live (Green / Yellow)
For Keyswitch that has 4 wires Green would be Earth and not used.
Some Keyswitches require loop for live to live.

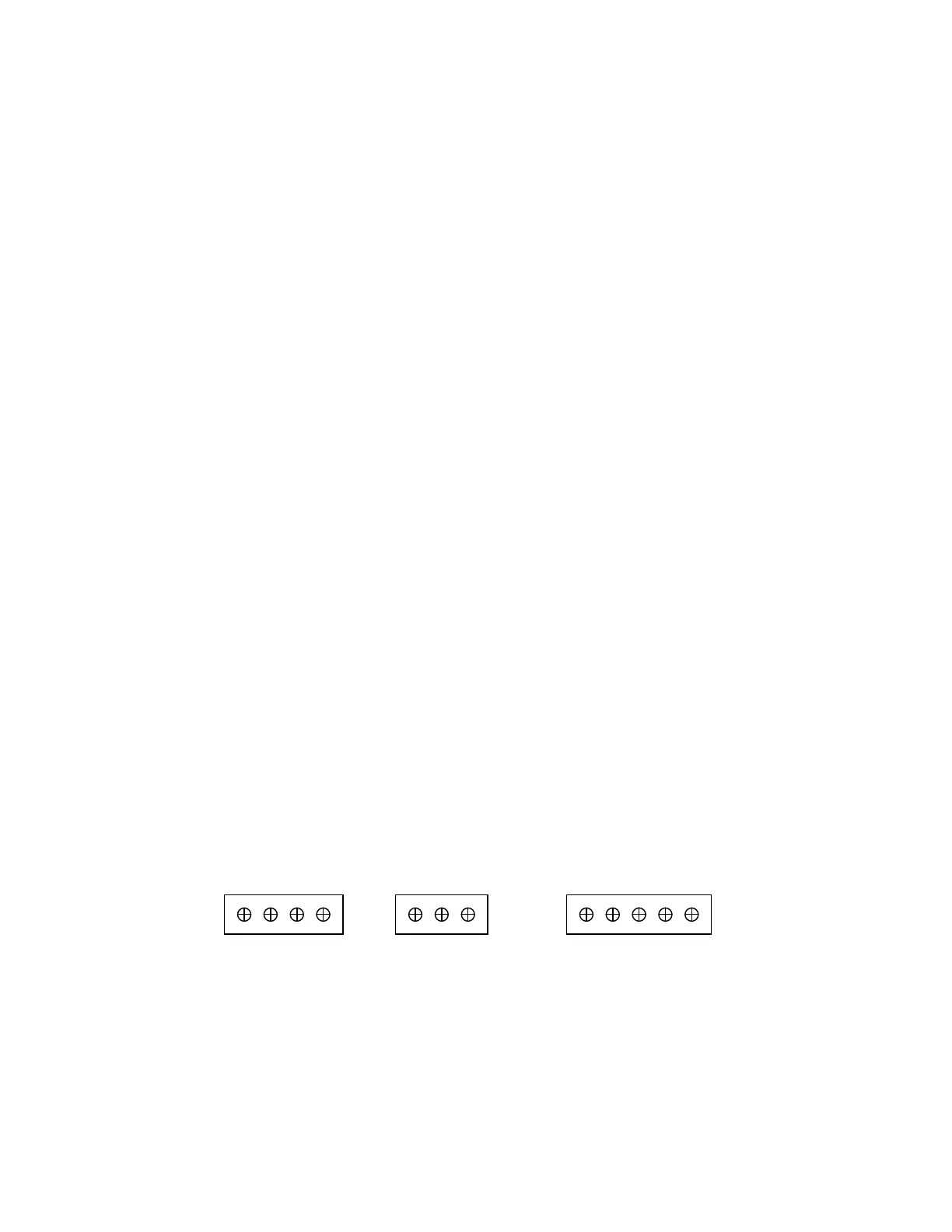

L R E N L N E U S D V G
Please note, this diagram should be used in conjunction with the installation guide
provided.
Motor Power
Photocell /
Keyswitch
