NXP Semiconductors KL25 Series

To Next Page

To Previous Page

VSSA

VREFL

VREFH

VDDA

PTE21

PTE20

VREGIN

VOUT33

USB0_DM

USB0_DP

VSS

VDD

PTD7

PTD6/LLWU_P15

PTD5

PTD4/LLWU_P14

PTD3

PTD2

PTD1

PTD0

PTC7

PTC6/LLWU_P10

PTC5/LLWU_P9

PTC4/LLWU_P8

PTC3/LLWU_P7

PTC2

PTC1/LLWU_P6/RTC_CLKIN

PTC0

PTB17

PTB16

PTB3

PTB2

PTB1

PTB0/LLWU_P5

RESET_b

PTA19

PTA3

PTA2

PTA1

PTA0

PTE25

PTE24

PTE30

PTE29

PTA18

VSS

VDD

PTA4

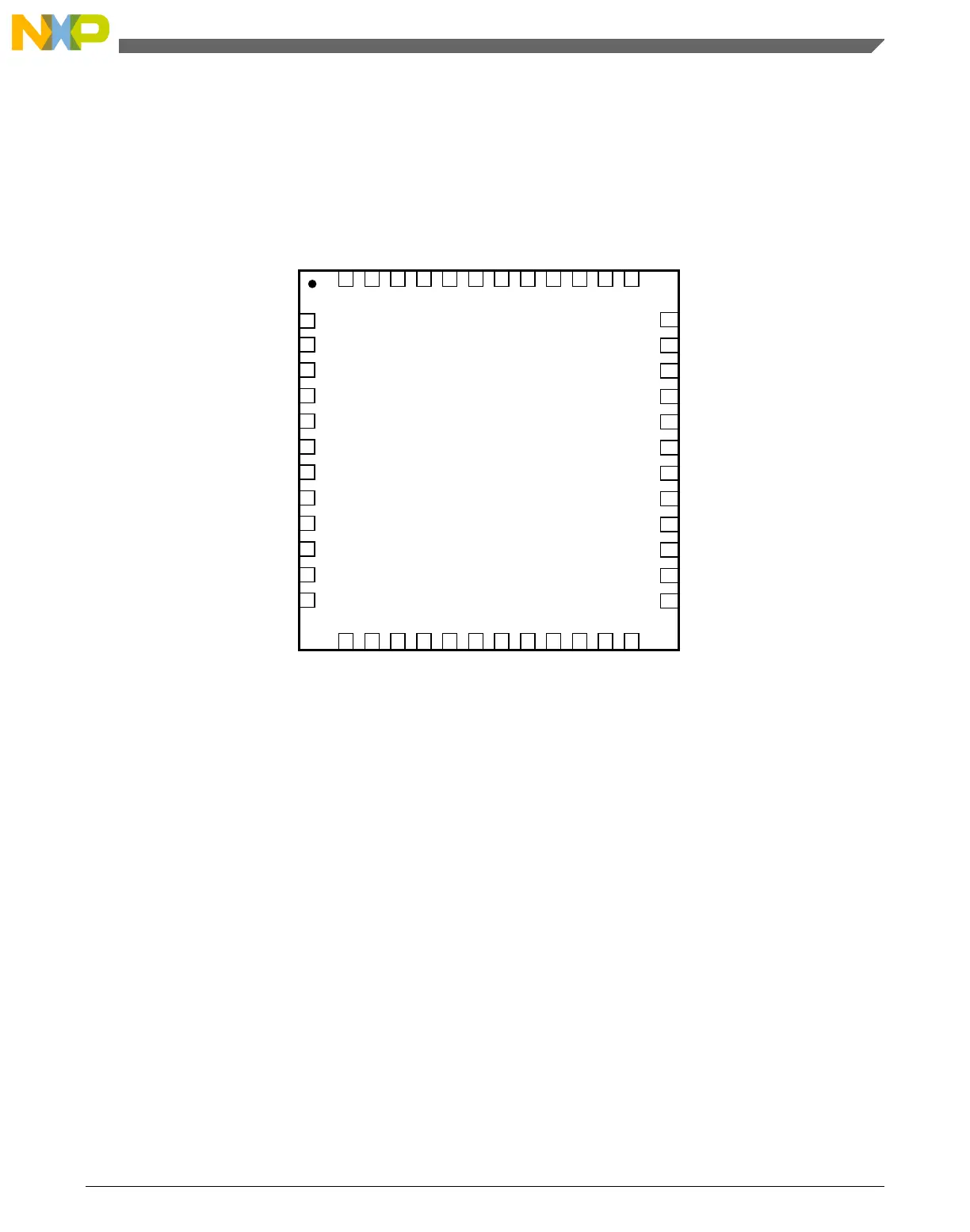

Figure 10-4. KL25 48-pin QFN pinout diagram

Chapter 10 Signal Multiplexing and Signal Descriptions

KL25 Sub-Family Reference Manual, Rev. 3, September 2012

Freescale Semiconductor, Inc. 167
