NZXT C Series User Manual

04
C SERIES BRONZE
C SERIES BRONZE
Compliance Standard
ATX12V v2.52 / EPS12V v2.92
PF Correction
Active@0.96
AC Input & DC Output Rating
Fan Specs
Bearing type FDB (Fluid Dynamic Bearing)
Dimension 120 x 120 x 25 (mm)
Air Flow 72.90 CFM (Tpy.)
Noise value < 44.0 dBA
Rated speed 2400 ± 10% RPM
Hazardous Materials
RoHS & China RoHS
Energy Efficiency
80 Plus Bronze 10% loading:82%, 20% loading: 82%, 50% loading: 85%, 100% loading: 82%
Operation Temperature
0 to 40°C
Regulations & Certifications
(EMC & Safety)
CB / CE / FCC / TUV / China CCC / BSMI / RCM / EAC / UKCA / WEEE /Canada ICES / BIS
MTBF
100,000 hours

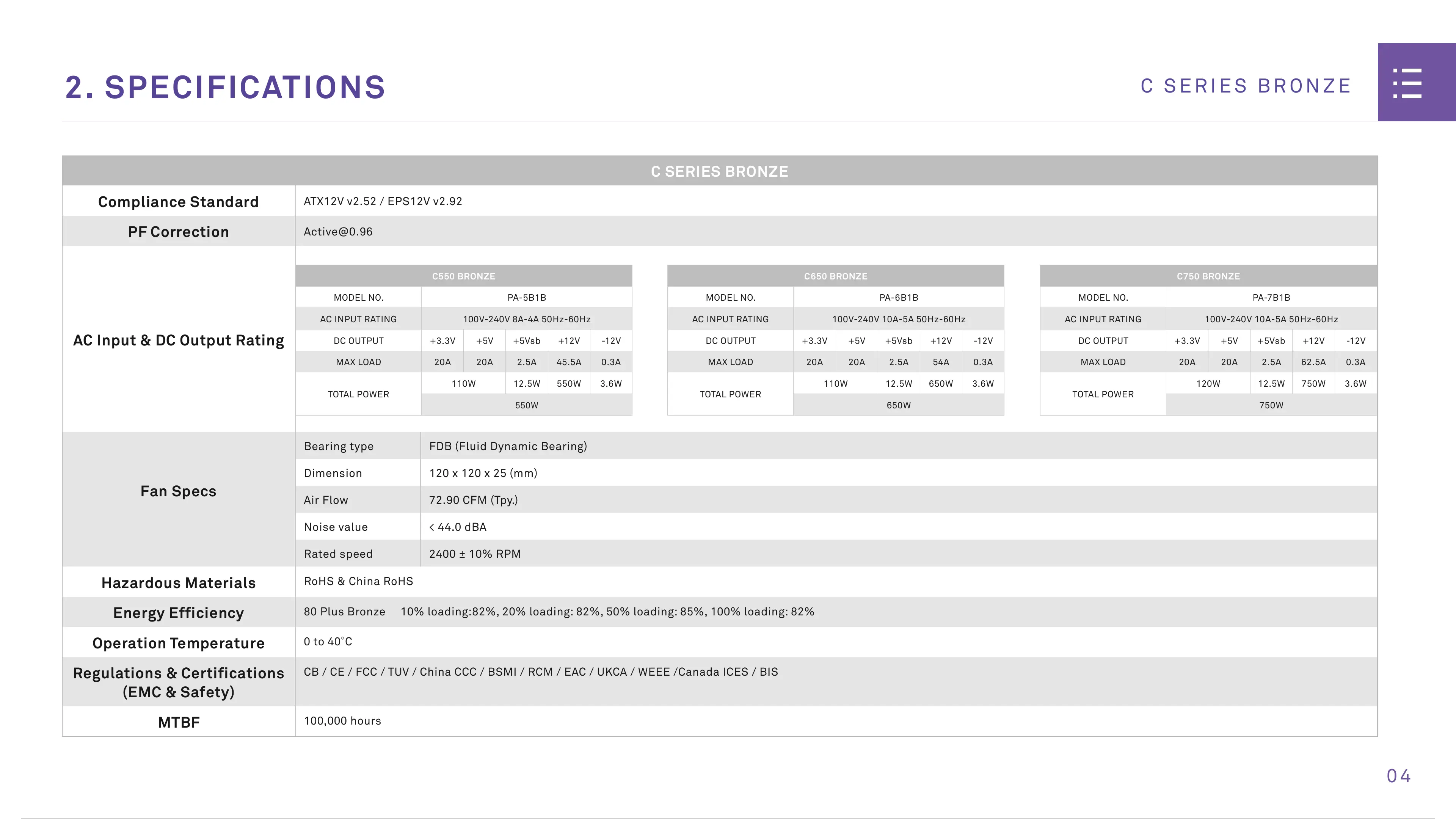

2. SPECIFICATIONS
C550 BRONZE
MODEL NO. PA-5B1B
AC INPUT RATING 100V-240V 8A-4A 50Hz-60Hz
DC OUTPUT +3.3V +5V +5Vsb +12V -12V
MAX LOAD 20A 20A 2.5A 45.5A 0.3A
TOTAL POWER
110W 12.5W 550W 3.6W
550W
C750 BRONZE
MODEL NO. PA-7B1B
AC INPUT RATING 100V-240V 10A-5A 50Hz-60Hz
DC OUTPUT +3.3V +5V +5Vsb +12V -12V
MAX LOAD 20A 20A 2.5A 62.5A 0.3A
TOTAL POWER
120W 12.5W 750W 3.6W
750W
C650 BRONZE
MODEL NO. PA-6B1B
AC INPUT RATING 100V-240V 10A-5A 50Hz-60Hz
DC OUTPUT +3.3V +5V +5Vsb +12V -12V
MAX LOAD 20A 20A 2.5A 54A 0.3A
TOTAL POWER
110W 12.5W 650W 3.6W
650W
6 / 25 5 / 23 6 / 25

NZXT C Series Specifications

General

Form Factor	ATX
Efficiency Rating	80 Plus Gold
Modular	Fully Modular
Cooling	120mm Fluid Dynamic Bearing Fan
Zero RPM Fan Mode	Yes
Warranty	10 Years
Wattage Options	650W, 750W, 850W
Protections	Over Voltage Protection, Under Voltage Protection, Over Power Protection, Over Temperature Protection, Short Circuit Protection, Over Current Protection
Connectors	24-pin ATX
